Toyota SIENNA — SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-AA420×2i201409-201608

main86160-0T010×2i201808-202009

STARTING SYSTEM-PUSH BUTTON

86160BSPEAKER ASSY, REAR

main86160-08170i201001-201308

main86160-08180i201409-201608

86160JSPEAKER ASSY, FRONT NO.3

main86160-0C070i201001-201308

AUDIO-AM/FM & 6CD-CHANGER & 10SPEAKER & *BT; AUDIO-AVN & 10SPEAKER & BLUETOOTH

86160PSPEAKER ASSY, FRONT NO.2

main86160-0WF61×2i201001-201409

main86160-08210i201001-201308

AUDIO-AM/FM & 6CD-CHANGER & 10SPEAKER & *BT,LH; AUDIO-AVN & 10SPEAKER & BLUETOOTH,LH

main86160-08220i201001-201409

AUDIO-AM/FM & 6CD-CHANGER & 10SPEAKER & *BT,RH; AUDIO-AVN & 10SPEAKER & BLUETOOTH,RH

86160USPEAKER ASSY, QUARTER SIDE

main86160-08190i201001-201308

AUDIO-AM/FM & 6CD-CHANGER & 10SPEAKER & *BT,LH; AUDIO-AVN & 10SPEAKER & BLUETOOTH,LH

main86160-08200i201808-202009

STARTING SYSTEM-PUSH BUTTON,RH

86160YSPEAKER ASSY, REAR NO.2

main86160-08150×2i201001-201409

AUDIO-AM/FM & 6CD-CHANGER & 10SPEAKER & *BT; AUDIO-AVN & 10SPEAKER & BLUETOOTH

86160ZSPEAKER ASSY, REAR NO.3

main86160-08160i201001-201308

AUDIO-AM/FM & 6CD-CHANGER & 10SPEAKER & *BT; AUDIO-AVN & 10SPEAKER & BLUETOOTH

9008010179

main90080-10179

9008011545

main90080-11545

9008011699

main90080-11699

9008015074

main90080-15074

9008016094

main90080-16094

90119A0334

main90119-A0334

9018906227

main90189-06227

90467A0002C4

main90467-A0002C4

9356854512

main93568-54512

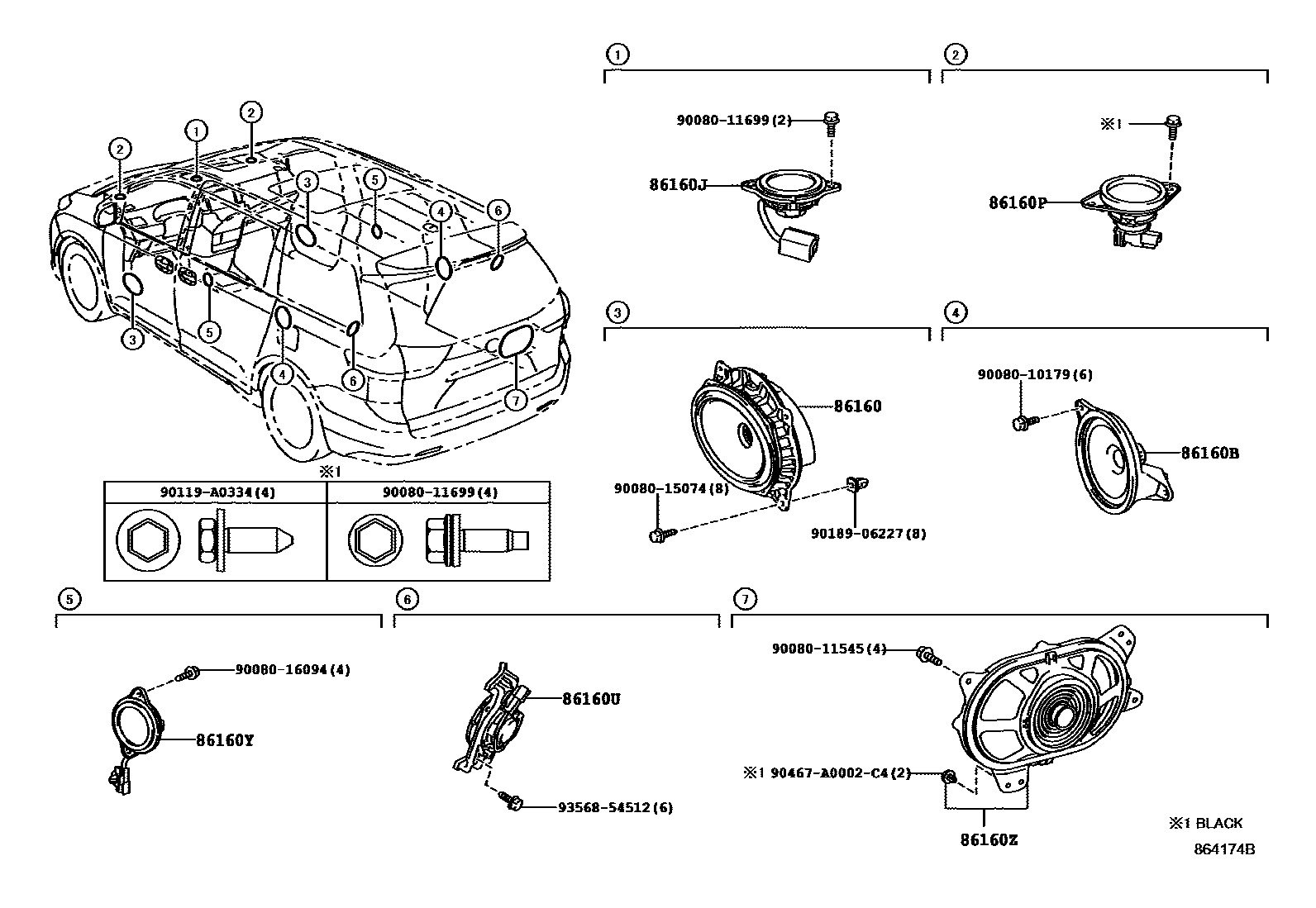

16 parts on this diagram · 1 diagram in section

SPEAKER for Toyota SIENNA

This section contains 16 genuine Toyota parts for the SPEAKER system of the Toyota SIENNA. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.3, SPEAKER ASSY, FRONT NO.2, SPEAKER ASSY, QUARTER SIDE.
