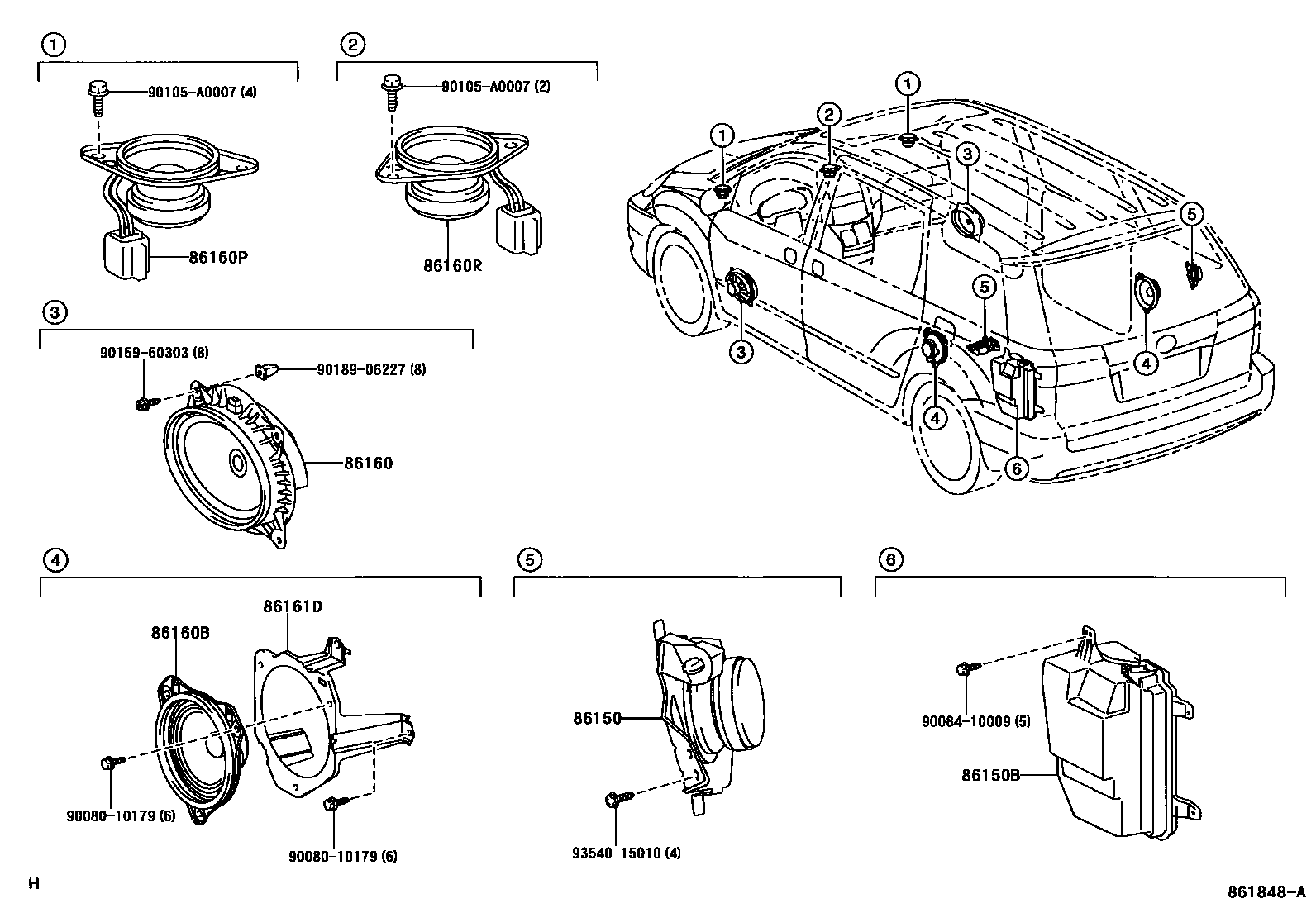

Toyota SIENNA — SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-AE010i200301-200509

AUDIO-AM/FM CST CD 10SP(JBL),RH; AUDIO-AM/FM CST CDCHANGER-6 10SP(JBL),RH; RH

main86150-AE020i200301-200509

AUDIO-AM/FM CST CD 10SP(JBL),LH; AUDIO-AM/FM CST CDCHANGER-6 10SP(JBL),LH; LH

86150BSPEAKER ASSY, W/BOX, NO.2

main86150-AE030i200301-200509

AUDIO-AM/FM CST CD 10SP(JBL); AUDIO-AM/FM CST CDCHANGER-6 10SP(JBL)

86160SPEAKER ASSY, FRONT NO.1

main86160-AA320×2i200301-200409

AUDIO-AM/FM CST CD 6SP

main86160-AA382×2supersedes 86160-AA440i200301-200509

AUDIO-AM/FM CST CD 10SP(JBL); AUDIO-AM/FM CST CDCHANGER-6 10SP(JBL)

main86160-AA440×2i200409-200509

AUDIO-AM/FM CST CD 6SP

86160BSPEAKER ASSY, REAR

main86160-AE030×2supersedes 86160-AE040i200612

main86160-AE040×2supersedes 86160-AE030i200612-200708

86160PSPEAKER ASSY, FRONT NO.2

main86160-AE010×2supersedes 86160-AE020i200301-200509

AUDIO-AM/FM CST CD 6SP

main86160-AE020×2supersedes 86160-AE010i200612-200708

86160RSPEAKER ASSY, STEREO COMPONENT

main86160-AE060i200301-200509

AUDIO-AM/FM CST CD 10SP(JBL); AUDIO-AM/FM CST CDCHANGER-6 10SP(JBL)

86161DBRACKET, SPEAKER MOUNTING, NO.1

main86161-AE010i200301-200509

main86161-AE020i200301-200509

9008010179

main90080-10179

9008410009

main90084-10009

90105A0007

main90105-A0007

9015960303

main90159-60303

9018906227

main90189-06227

9354015010

main93540-15010

13 parts on this diagram · 1 diagram in section

SPEAKER for Toyota SIENNA

This section contains 13 genuine Toyota parts for the SPEAKER system of the Toyota SIENNA. Key components include: SPEAKER ASSY, W/BOX, NO.1, SPEAKER ASSY, W/BOX, NO.2, SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2.
