Toyota SIENNA — SPEAKER

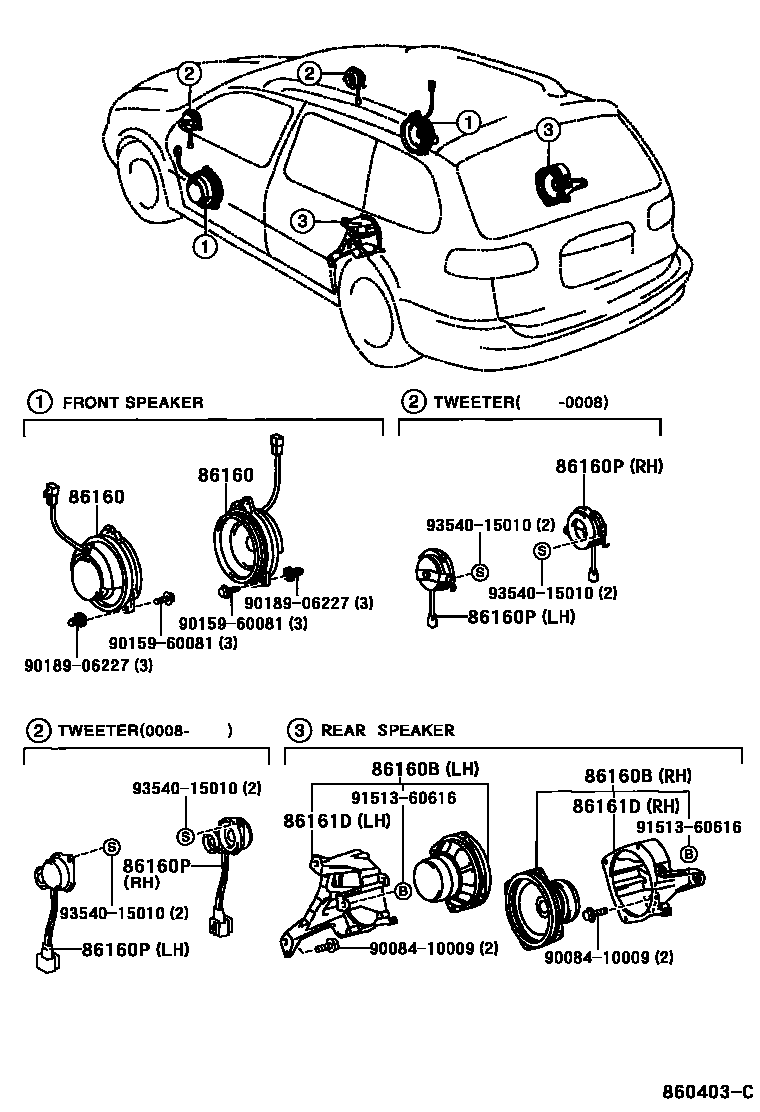

Parts diagram
86160SPEAKER ASSY, FRONT NO.1
main86160-08070×2i199708
main86160-08080×2i199708-200008
W(6 SPEAKER)
main86160-08110×2i200008
W(8 SPEAKER)
86160BSPEAKER ASSY, REAR
main86160-08030i199708-200008
W(6 SPEAKER),RH
main86160-08040i199708
RH
main86160-08050i199708-200008
W(6 SPEAKER),LH
main86160-08060i199708
LH
main86160-08120i200008
W(8 SPEAKER),RH
main86160-08130i200008
W(8 SPEAKER),LH
86160PSPEAKER ASSY, FRONT NO.2
main86160-08010i199708-200008
W(6 SPEAKER),RH
main86160-08020i199708-200008
W(6 SPEAKER),LH
main86160-08090i200008
W(8 SPEAKER),RH
main86160-08100i200008
W(8 SPEAKER),LH
86161DBRACKET, SPEAKER MOUNTING, NO.1
main86161-08010i199708
RH
main86161-08020i199708
LH
9008410009
main90084-10009
9015960081
main90159-60081
9018906227
main90189-06227
9151360616
main91513-60616
9354015010
main93540-15010

9 parts on this diagram · 1 diagram in section

SPEAKER for Toyota SIENNA

This section contains 9 genuine Toyota parts for the SPEAKER system of the Toyota SIENNA. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2, BRACKET, SPEAKER MOUNTING, NO.1.
