Toyota SIENNA — SIDE WINDOW
62110AWINDOW ASSY, FRONT SIDE FIX, RH
62120BWINDOW ASSY, FRONT SIDE FIX, LH
62730BWINDOW ASSY, QUARTER, REAR RH
62735JRETAINER, QUARTER WINDOW HINGE, LH
62735LRETAINER, QUARTER WINDOW HINGE, RH
62740BWINDOW ASSY, QUARTER, REAR LH
62743WEATHERSTRIP, QUARTER WINDOW, REAR RH
62744WEATHERSTRIP, QUARTER WINDOW, REAR LH
62884AGUARD, QUARTER WINDOW, RH
62885AGUARD, QUARTER WINDOW, LH
62910KLOCK ASSY, QUARTER WINDOW, RH
62915AHINGE, QUARTER WINDOW LOCK
62920LOCK ASSY, QUARTER WINDOW, LH
67873GWEATHERSTRIP, QUARTER WINDOW, FRONT RH
67874GWEATHERSTRIP, QUARTER WINDOW, FRONT LH
85770AMOTOR ASSY, POWER VENT WINDOW, RH
85780AMOTOR ASSY, POWER VENT WINDOW, LH
9008046215
main90080-46215
9008438014
main90084-38014
90105A0007
main90105-A0007
9014960086
main90149-60086
9017906260
main90179-06260

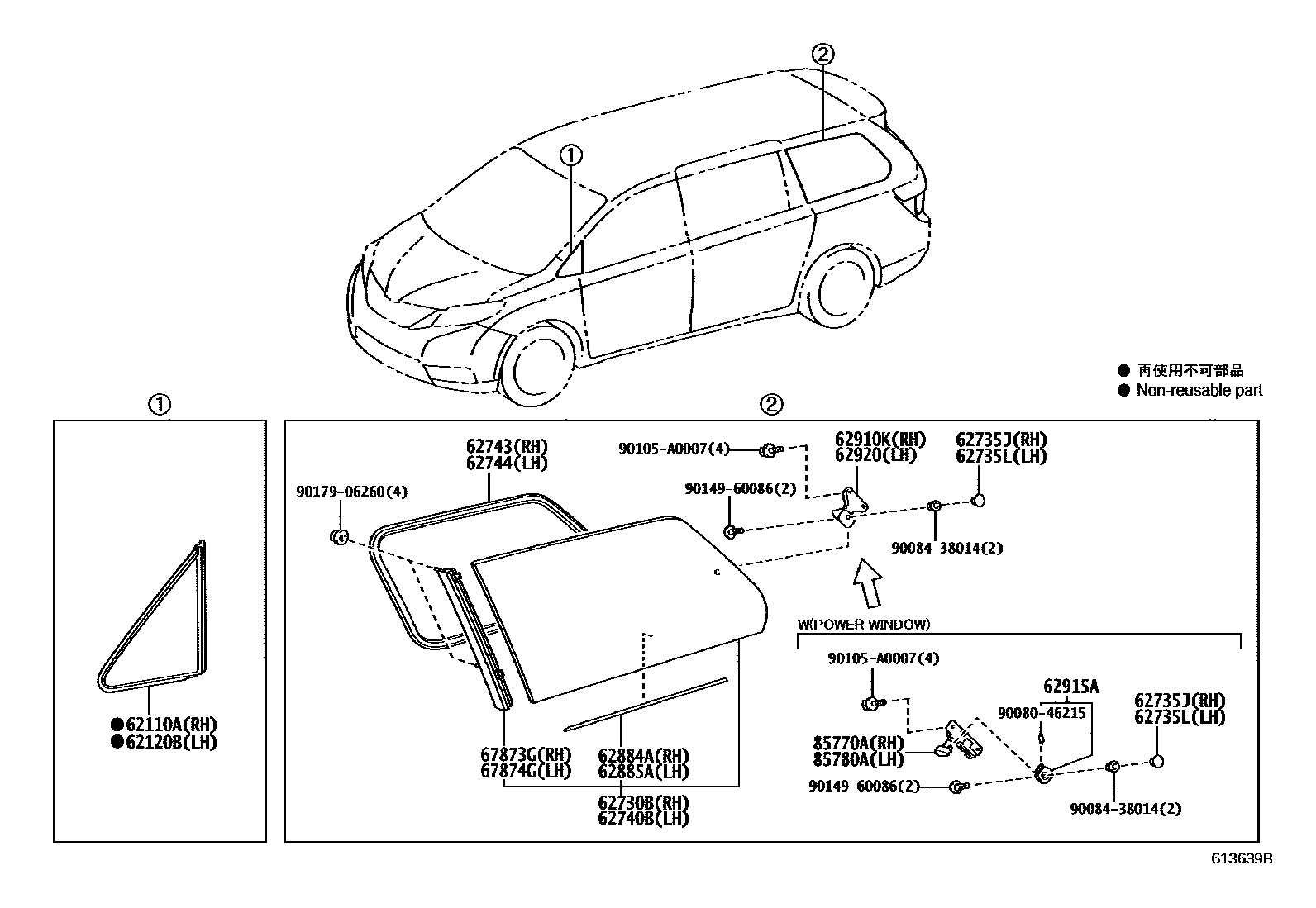

22 parts on this diagram · 1 diagram in section
SIDE WINDOW for Toyota SIENNA
This section contains 22 genuine Toyota parts for the SIDE WINDOW system of the Toyota SIENNA. Key components include: WINDOW ASSY, FRONT SIDE FIX, RH, WINDOW ASSY, FRONT SIDE FIX, LH, WINDOW ASSY, QUARTER, REAR RH, RETAINER, QUARTER WINDOW HINGE, LH, RETAINER, QUARTER WINDOW HINGE, RH.
