Toyota SIENNA — SIDE WINDOW
62730AWINDOW ASSY, SIDE, REAR RH
*TEM,T=3.5,GREEN; *TEM,T=3.5,GREEN,BACK GLASS-H.S.E.A. GREEN&AUDIO-AM/FM CD 6SPEAKER
*TEM,T=3.5,GRAY; *TEM,T=3.5,GRAY,BACK GLASS-PRIVATE
*TEM,T=3.5,GRAY; *TEM,T=3.5,GRAY,AUDIO-AM/FM CST CD 10SP(JBL); *TEM,T=3.5,GRAY,AUDIO-AM/FM CST CDCHANGER-6 10SP(JBL)
*TEM,T=3.5,GRAY; *TEM,T=3.5,GRAY,AUDIO-AM/FM 6CD-CHANGER 10SPEAKER(JBL); *TEM,T=3.5,GRAY,AUDIO-AVN:AM/FM/4CD-CHANGER 10SPEAKER(JBL)
*TEM,T=3.5,GRAY,SEAT COVER MATERIAL-LEATHER; *TEM,T=3.5,GRAY,SUN SHADE-W/SLIDE DOOR&QUARTER&AUDIO-AM/FM CST CD 6SP
*TEM,T=3.5,GRAY,SEAT COVER MATERIAL-LEATHER&AUDIO-AM/FM CST CD 10SP(JBL); *TEM,T=3.5,GRAY,SEAT COVER MATERIAL-LEATHER&AUDIO-AM/FM CST CDCHANGER-6 10SP(JBL); *TEM,T=3.5,GRAY,SUN SHADE-W/SLIDE DOOR&QUARTER
*TEM,T=3.5,GRAY,SEAT COVER MATERIAL-LEATHER&AUDIO-AM/FM CST CD 10SP(JBL); *TEM,T=3.5,GRAY,SEAT COVER MATERIAL-LEATHER&AUDIO-AM/FM CST CDCHANGER-6 10SP(JBL); *TEM,T=3.5,GRAY,SUN SHADE-W/SLIDE DOOR&QUARTER
62735DRETAINER, SIDE REAR WINDOW HINGE, RH
62735ERETAINER, SIDE REAR WINDOW HINGE, LH
62740AWINDOW ASSY, SIDE, REAR LH
*TEM,T=3.5,GREEN; *TEM,T=3.5,GREEN,BACK GLASS-H.S.E.A. GREEN&AUDIO-AM/FM CD 6SPEAKER
*TEM,T=3.5,GRAY,BACK GLASS-PRIVATE
*TEM,T=3.5,GRAY; *TEM,T=3.5,GRAY,AUDIO-AM/FM CST CD 10SP(JBL); *TEM,T=3.5,GRAY,AUDIO-AM/FM CST CDCHANGER-6 10SP(JBL)
*TEM,T=3.5,GRAY; *TEM,T=3.5,GRAY,AUDIO-AM/FM 6CD-CHANGER 10SPEAKER(JBL); *TEM,T=3.5,GRAY,AUDIO-AVN:AM/FM/4CD-CHANGER 10SPEAKER(JBL)
*TEM,T=3.5,GRAY,SEAT COVER MATERIAL-LEATHER; *TEM,T=3.5,GRAY,SUN SHADE-W/SLIDE DOOR&QUARTER&AUDIO-AM/FM CST CD 6SP
*TEM,T=3.5,GRAY,SEAT COVER MATERIAL-LEATHER&AUDIO-AM/FM CST CD 10SP(JBL); *TEM,T=3.5,GRAY,SEAT COVER MATERIAL-LEATHER&AUDIO-AM/FM CST CDCHANGER-6 10SP(JBL); *TEM,T=3.5,GRAY,SUN SHADE-W/SLIDE DOOR&QUARTER
*TEM,T=3.5,GRAY,SUN SHADE-WITH/SLIDE DOOR&QUARTER; *TEM,T=3.5,GRAY,SUN SHADE-WITH/SLIDE DOOR&QUARTER&AUDIO-AM/FM 6CD-CHANGER 10SPEAKER(JBL); *TEM,T=3.5,GRAY,SUN SHADE-WITH/SLIDE DOOR&QUARTER&AUDIO-AVN:AM/FM/4CD-CHANGER 10SPEAKER(JBL)
62743DWEATHERSTRIP, SIDE REAR WINDOW, RH
62744BWEATHERSTRIP, SIDE REAR WINDOW, LH
62750BWINDOW ASSY, SLIDE DOOR, RH
*TEM,T=4.0,GREEN
*TEM,T=4.0,GRAY; *TEM,T=4.0,GRAY,BACK GLASS-PRIVACY
62760WINDOW ASSY, SLIDE DOOR, LH
*TEM,T=4.0,GREEN; *TEM,T=4.0,GREEN,BACK GLASS-H.S.E.A. GREEN
*TEM,T=4.0,GRAY
62884AGUARD, QUARTER WINDOW, RH
62885AGUARD, QUARTER WINDOW, LH
62910KLOCK ASSY, QUARTER WINDOW, RH
BACK GLASS-H.S.E.A. GREEN,STONE,TRIM1#; STONE,TRIM1#
BACK GLASS-H.S.E.A. GREEN,FAWN,TRIM4#; FAWN,TRIM4#
62915AHINGE, QUARTER WINDOW LOCK
62920LOCK ASSY, QUARTER WINDOW, LH
STONE,TRIM1#
BACK GLASS-H.S.E.A. GREEN,FAWN,TRIM4#; FAWN,TRIM4#
67873GWEATHERSTRIP, QUARTER WINDOW, FRONT RH
67874GWEATHERSTRIP, QUARTER WINDOW, FRONT LH
85770AMOTOR ASSY, POWER VENT WINDOW, RH
BACK GLASS-H.S.E.A. GREEN; BACK GLASS-PRIVATE
BACK GLASS-H.S.E.A. GREEN; BACK GLASS-PRIVACY
85780AMOTOR ASSY, POWER VENT WINDOW, LH
BACK GLASS-H.S.E.A. GREEN; BACK GLASS-PRIVACY
9008046215
main90080-46215
9008438014
main90084-38014
90105A0007
main90105-A0007
9014960086
main90149-60086
9017906260
main90179-06260

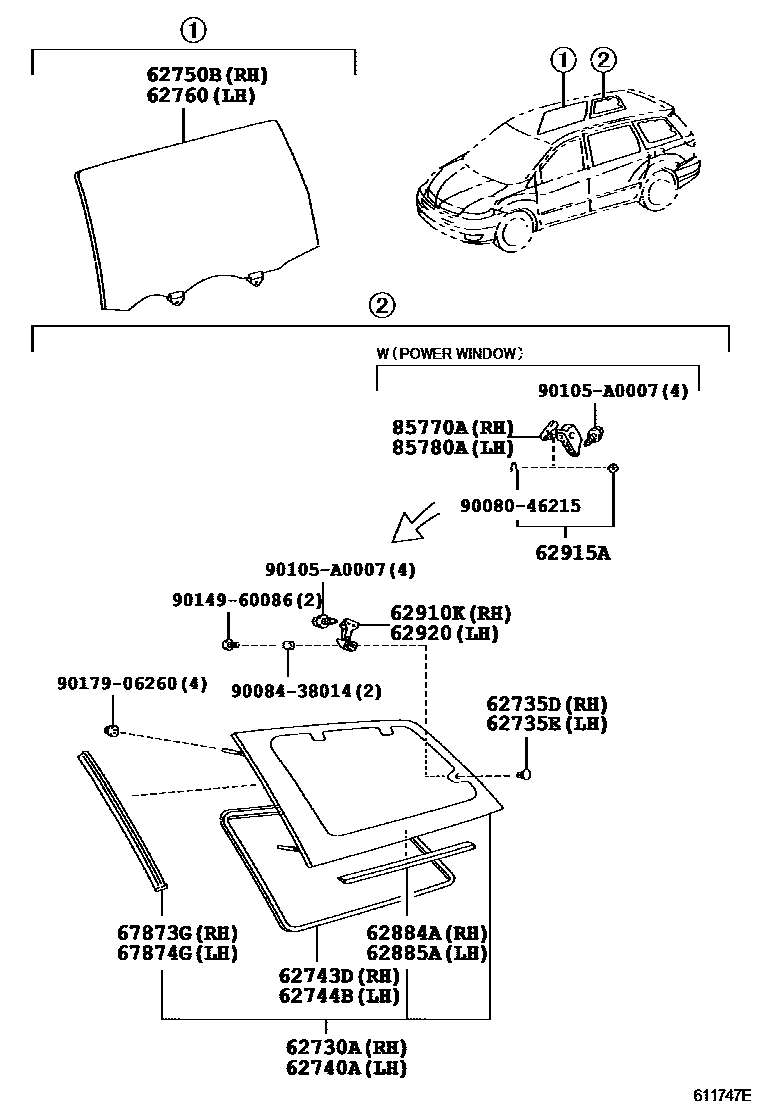

22 parts on this diagram · 1 diagram in section
SIDE WINDOW for Toyota SIENNA
This section contains 22 genuine Toyota parts for the SIDE WINDOW system of the Toyota SIENNA. Key components include: WINDOW ASSY, SIDE, REAR RH, RETAINER, SIDE REAR WINDOW HINGE, RH, RETAINER, SIDE REAR WINDOW HINGE, LH, WINDOW ASSY, SIDE, REAR LH, WEATHERSTRIP, SIDE REAR WINDOW, RH.
