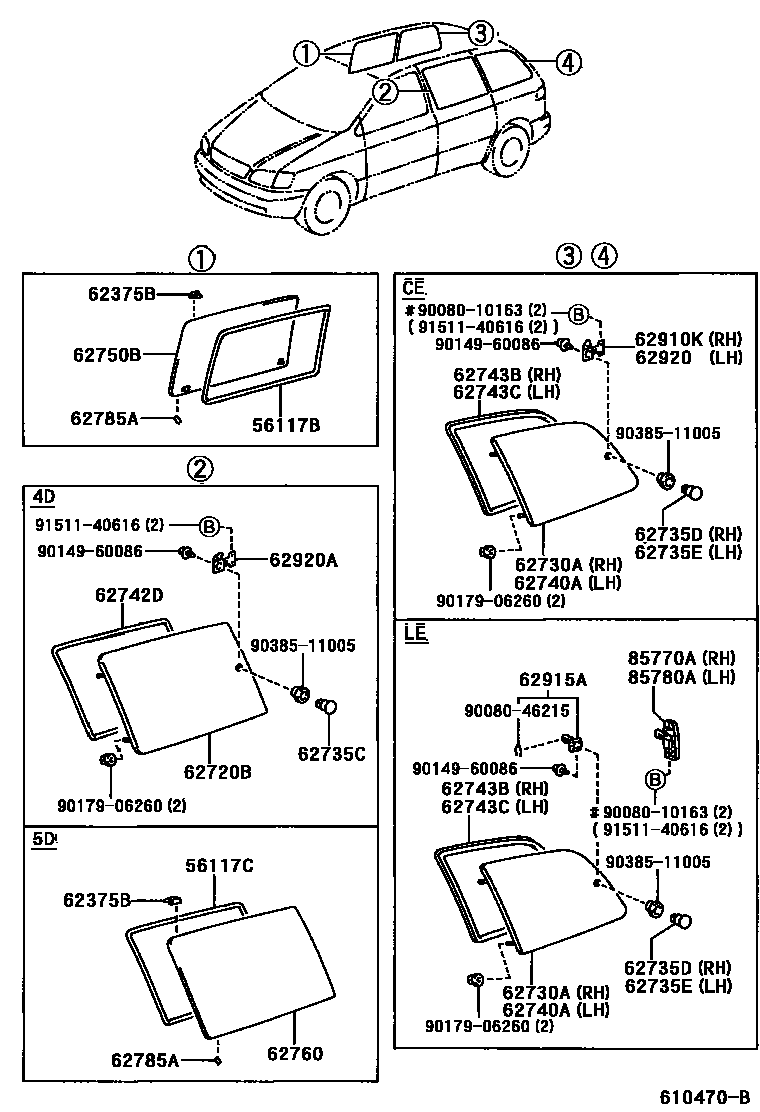

Toyota SIENNA — SIDE WINDOW
56117BDAM, WINDOW GLASS ADHESIVE(FOR SLIDE DOOR)
L=505
56117CDAM, WINDOW GLASS ADHESIVE(FOR REAR SIDE)
L=505
62375BCLIP, SIDE WINDOW, NO.1
62720BWINDOW ASSY, SIDE, FRONT LH
*TT,T=4.0,GREEN
*TT,T=4.0,GRAY
62730AWINDOW ASSY, SIDE, REAR RH
*TT,T=4.0,GREEN
*TT,T=4.0,DARK GRAY
*TT,T=4.0,GRAY,W(RADIO ANTENNA)
*TT,T=4.0,DARK GRAY,W(RADIO ANTENNA)
62735CRETAINER, SIDE FRONT WINDOW HINGE, LH
62735DRETAINER, SIDE REAR WINDOW HINGE, RH
62735ERETAINER, SIDE REAR WINDOW HINGE, LH
62740AWINDOW ASSY, SIDE, REAR LH
*TT,T=4.0,GREEN
*TT,T=4.0,GRAY
*TT,T=4.0,GRAY,W(RADIO ANTENNA)
62742DWEATHERSTRIP, SIDE FRONT WINDOW, LH
62750BWINDOW ASSY, SLIDE DOOR, RH
*TT,T=4.0,GREEN
*TT,T=4.0,GRAY
62760WINDOW ASSY, SLIDE DOOR, LH
*TT,T=4.0,GREEN
*TT,T=4.0,GRAY
62785ASPACER, QUARTER WINDOW GLASS
62910KLOCK ASSY, QUARTER WINDOW, RH
LT.BLUISH GRAY,TRIM1#
MD.OAK,TRIM4#
62915AHINGE, QUARTER WINDOW LOCK
62920LOCK ASSY, QUARTER WINDOW, LH
LT.BLUISH GRAY,TRIM1#
MD.OAK,TRIM4#
62920ALOCK ASSY, SIDE FRONT WINDOW, LH
LT.BLUISH GRAY,TRIM1#
MD.OAK,TRIM4#
85770AMOTOR ASSY, POWER VENT WINDOW, RH
85780AMOTOR ASSY, POWER VENT WINDOW, LH
9008010163
main90080-10163
9008046215
main90080-46215
9014960086
main90149-60086
9017906260
main90179-06260
9038511005
main90385-11005
9151140616
main91511-40616
27 parts on this diagram · 1 diagram in section
SIDE WINDOW for Toyota SIENNA
This section contains 27 genuine Toyota parts for the SIDE WINDOW system of the Toyota SIENNA. Key components include: DAM, WINDOW GLASS ADHESIVE(FOR SLIDE DOOR), DAM, WINDOW GLASS ADHESIVE(FOR REAR SIDE), CLIP, SIDE WINDOW, NO.1, WINDOW ASSY, SIDE, FRONT LH, WINDOW ASSY, SIDE, REAR RH.
