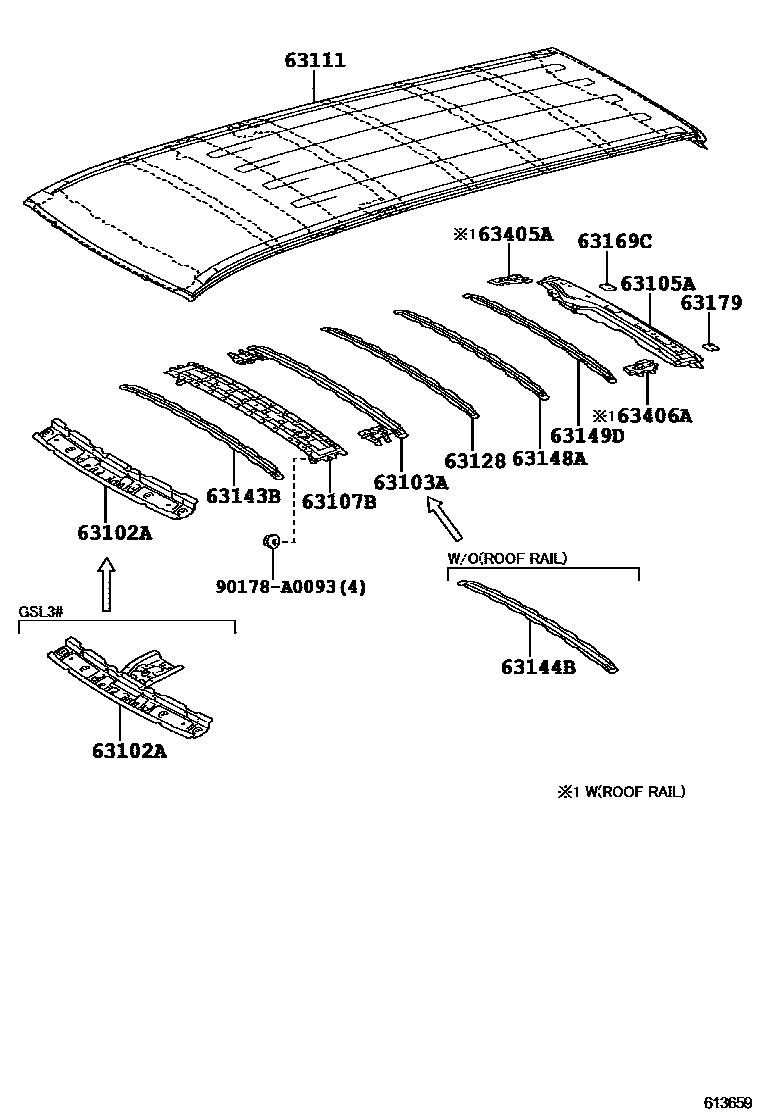

Toyota SIENNA — ROOF PANEL & BACK PANEL

0001 1ROOF PANEL(NORMAL) 0002 1ROOF PANEL(SINGLE ROOF) 0003 1ROOF PANEL(DUAL ROOF) 0004 1SLIDING ROOF(SINGLE ROOF) 0005 1SLIDING ROOF(DUAL ROOF) 0006 1SLIDING ROOF(SINGLE ROOF) 0007 1SLIDING ROOF(DUAL ROOF) 0008 1ROOF RACK

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-08010iGSL30..XLE201001-201409

MOON ROOF-WITHOUT

main63102-08011iGSL30..07S..XLE201711-202009

SAIPAN SPEC&DE-CONTENT PACKAGE

main63132-08020iGSL30,35..LE,SE201001-201409

MOON ROOF-WITH(FRONT ONLY)

main63132-08021iGSL30,35..XLE201711-202009

MOON ROOF-WITH(FRONT ONLY)

main63102-08030supersedes 63102-08020iASL30201005-201308

MOON ROOF-WITH(FRONT ONLY)

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-08010iGSL30,35..XLE201001-201409

ROOF RAIL-WITH

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-08020iGSL3#201711-202009

63107BREINFORCEMENT SUB-ASSY, ROOF PANEL, RH

main63107-08010iASL30;GSL35..STD201001-201308

main63107-08020iGSL3#201711-202009

63111PANEL, ROOF

main63111-08060iGSL30..07S..XLE201608-201711

W(*DRS:*PSE OR MANUAL, *PAS:MANUAL SEAT)

main63111-08070supersedes 63111-08060iGSL30,35..XLE201608-201711

MOON ROOF-WITH(FRONT ONLY)

main63111-08120iGSL30..LE,SE201409-201608

USA POSSESSIONS SPEC&DE-CONTENT PACKAGE

main63111-08170iGSL30,33..STD201808-202009

main63111-08190iGSL30,35..XLE201711-202009

MOON ROOF-WITH(FRONT ONLY)

main63111-08130iGSL30..SE201409-201608

USA POSSESSIONS SPEC&MOON ROOF-WITH(FRONT ONLY)

main63111-08200iGSL30,35..07S..XLE201711-202009

MOON ROOF-WITH(FRONT & REAR)

main63111-08900supersedes 63111-08070iGSL30..07S..XLE201711-202009

MEXICO SPEC&MOON ROOF-WITH(FRONT & REAR)

main63111-08901iGSL30..07S..XLE201409-201608

USA POSSESSIONS SPEC&MOON ROOF-WITH(FRONT & REAR)

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-08010iGSL3#201711-202009

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-08030iGSL30..07S..XLE201711-202009

SAIPAN SPEC&DE-CONTENT PACKAGE

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-08020iGSL3#..LE,STD201409-201608

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-08010iGSL3#201711-202009

63149DREINFORCEMENT, ROOF PANEL, NO.8

main63149-08010iASL30;GSL35..STD201001-201308

63169CRETAINER, ROOF REINFORCEMENT, NO.2

main63169-0E020iASL30;GSL35..STD201001-201308

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-0E020iGSL3#201409-201608

63405ASUPPORT SUB-ASSY, ROOF RACK, REAR

main63405-08010iGSL30,35..LE,STD201711-202009

SAIPAN SPEC&ROOF RAIL-WITH

63406ASUPPORT SUB-ASSY, ROOF RACK, REAR LH

main63406-08010iGSL30,35..LE,STD201409-201608

MEXICO SPEC&ROOF RAIL-WITH

90178A0093

main90178-A0093

15 parts on this diagram · 8 diagrams in section
