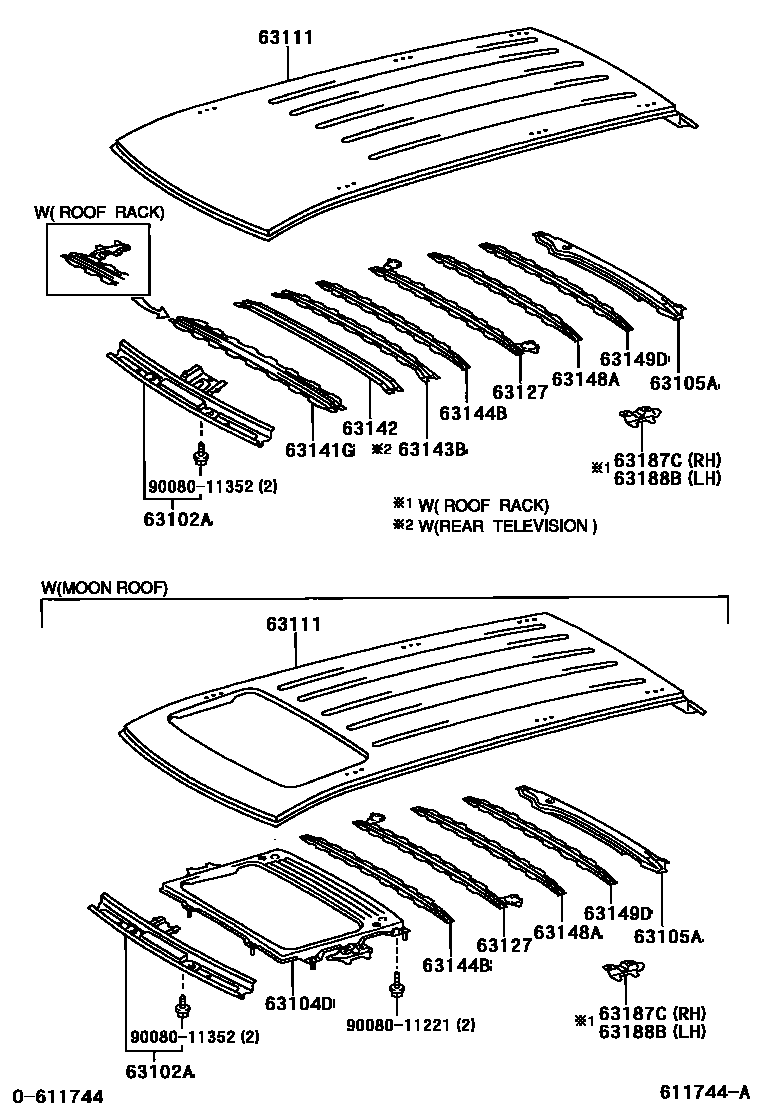

Toyota SIENNA — ROOF PANEL & BACK PANEL

0001 1ROOF PANEL 0002 1MOON ROOF 0003 1MOON ROOF 0004 1ROOF RACK

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-AE010iMCL2#200301-200509

main63102-AE020iGSL20,25..7S..XLE200612-200912

MOON ROOF-WITH&W(REAR SEAT ENTERTAINMENT)

63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2

main63104-08010iGSL20..8S..XLE200703-200905

MOON ROOF-WITH&W(REAR SEAT ENTERTAINMENT)

main63104-AE010iGSL20..8S..XLE200612-200905

PASSENGERS CAR & R.V.-MOBILITY BASE VEICLE&MOON ROOF-WITH&W(REAR SEAT ENTERTAINMENT)

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-AE010iMCL2#200301-200412

main63105-AE011iGSL2#200612-200912

63111PANEL, ROOF

main63111-AE010iGSL23;GSL20,25..LE..USA200612

W(REAR SEAT ENTERTAINMENT)

main63111-AE020iGSL25..CE,XLE;GSL20..7S..XLE;GSL25..LE..CND;GSL20..(CE,LE)..CND200612

ROOF RACK-WITH

main63111-08050supersedes 63111-AE010iGSL20..8S..XLE200703-200905

MOON ROOF-WITH&W(REAR SEAT ENTERTAINMENT)

main63111-AE030supersedes 63111-AE010iGSL20..8S..XLE200612-200905

PASSENGERS CAR & R.V.-MOBILITY BASE VEICLE&MOON ROOF-WITH&W(REAR SEAT ENTERTAINMENT)

63127REINFORCEMENT, ROOF PANEL, NO.5

main63106-AE010supersedes 63148-AE010iMCL20,25..XLE200301-200509

ROOF RACK-WITH

main63148-AE010iMCL2#..CE,LE200301-200509

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63103-AE010iMCL20,25..XLE200301-200509

ROOF RACK-WITH

main63141-AE010supersedes 63141-AE010iMCL2#..CE,LE200301-200509

63142REINFORCEMENT, ROOF PANEL, NO.2

main63143-AE010iMCL2#200509-200612

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63109-AE010iMCL20,25..XLE200301-200509

TELEVISION & VTR-WITH

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-AE010iGSL20,25..7S..XLE200612

W(REAR SEAT ENTERTAINMENT)

main63144-AE020iGSL20,25..7S..XLE200612

MOON ROOF-WITH&W(REAR SEAT ENTERTAINMENT)

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63149-AE010iMCL2#200509-200612

63149DREINFORCEMENT, ROOF PANEL, NO.8

main63149-AE010iMCL2#200301-200509

63187CBRACKET, ROOF RACK, NO.1 REAR RH

main63187-AE010iMCL20,25..LE..USA200509-200612

ROOF RACK-WITH

63188BBRACKET, ROOF RACK, NO.1 REAR LH

main63188-AE010iMCL20,25..XLE200301-200509

ROOF RACK-WITH

9008011221

main90080-11221

9008011352

main90080-11352

15 parts on this diagram · 4 diagrams in section
