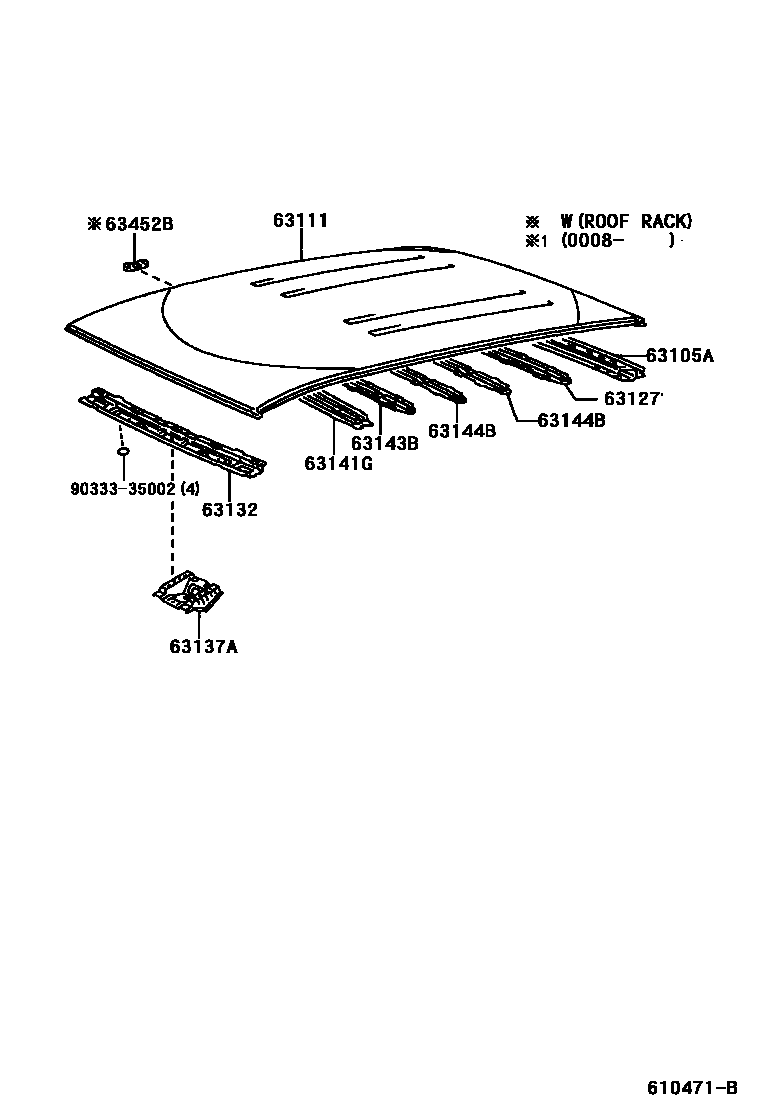

Toyota SIENNA — ROOF PANEL & BACK PANEL

0001 1 0002 1W(MOON ROOF) 0003 1W(ROOF RACK)

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-08010iMCL10199708-200008

main63105-08011iMCL10200008

63111PANEL, ROOF

main63111-08010iMCL10199708

main63111-08020iMCL10..5D..LE199708-200008

W(MOON ROOF)

main63111-08030iMCL10199708

W(ROOF RACK)

main63111-08040iMCL10..5D..LE199708

W(MOOF ROOF & ROOF RACK)

63127REINFORCEMENT, ROOF PANEL, NO.5

main63127-08010iMCL10199708

63132PANEL, WINDSHIELD HEADER, INNER

main63132-08900iMCL10199708-200008

main63132-08901iMCL10200008

63137ABRACKET, DOME LAMP, NO.1

main63137-08011iMCL10200008

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-08010iMCL10199708

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-08010iMCL10199708

main63143-08020iMCL10..5D..LE199708

W(MOON ROOF)

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-08010×2iMCL10199708-200007

main63144-08011×2iMCL10200007

63452BREINFORCEMENT, ROOF RACK, NO.2

main63452-45010×4iMCL10199708

9033335002

main90333-35002

10 parts on this diagram · 3 diagrams in section
