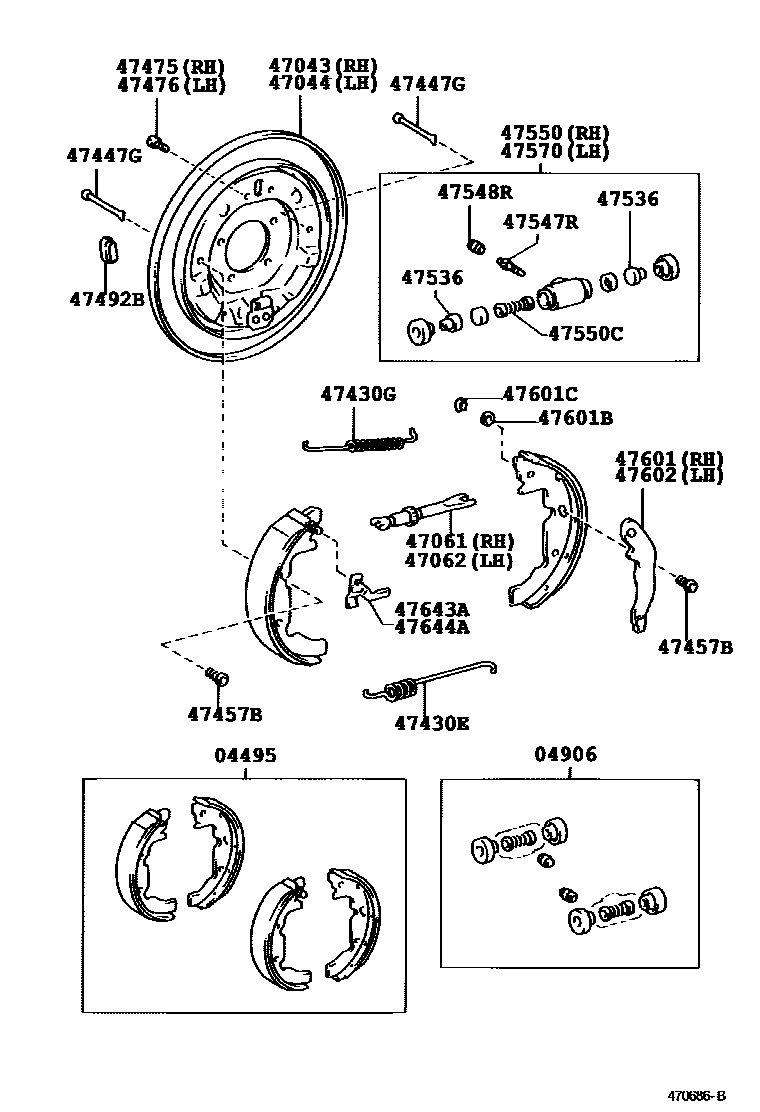

Toyota SIENNA — REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04495SHOE KIT, REAR BRAKE

main04495-08010i199708

04906CUP KIT, REAR WHEEL CYLINDER

main04906-08010i199708

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-08010i199708

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-08010i199708

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-08010i199708

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-08010i199708

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main47459-08010×2i199708

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main47439-08010×2i199708

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-08010×4i199708

47457BSPRING, COMPRESSION(FOR REAR SHOE HOLD DOWN SPRING PIN)

main47449-08010×4i199708

47475BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)

main47455-08010×2i199708

47476BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47455-08010×2i199708

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-08010×2i199708

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-08010×4i199708

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-08010×2i199708

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-08010×2i199708

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-08010i199708

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90069-21008×2i199708

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-08010i199708

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47611-08010i199708

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main47428-08010×2i199708

47601CWASHER, C(FOR REAR BRAKE)

main47427-08010×2i199708

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47612-08010i199708

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-08010i199708

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-08010i199708

25 parts on this diagram · 1 diagram in section

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE for Toyota SIENNA

This section contains 25 genuine Toyota parts for the REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE system of the Toyota SIENNA. Key components include: SHOE KIT, REAR BRAKE, CUP KIT, REAR WHEEL CYLINDER, PLATE SUB-ASSY, BRAKE BACKING, REAR RH, PLATE SUB-ASSY, BRAKE BACKING, REAR LH, STRUT SET, PARKING BRAKE SHOE, RH.
