Toyota SIENNA — REAR DOOR WINDOW REGULATOR & HINGE

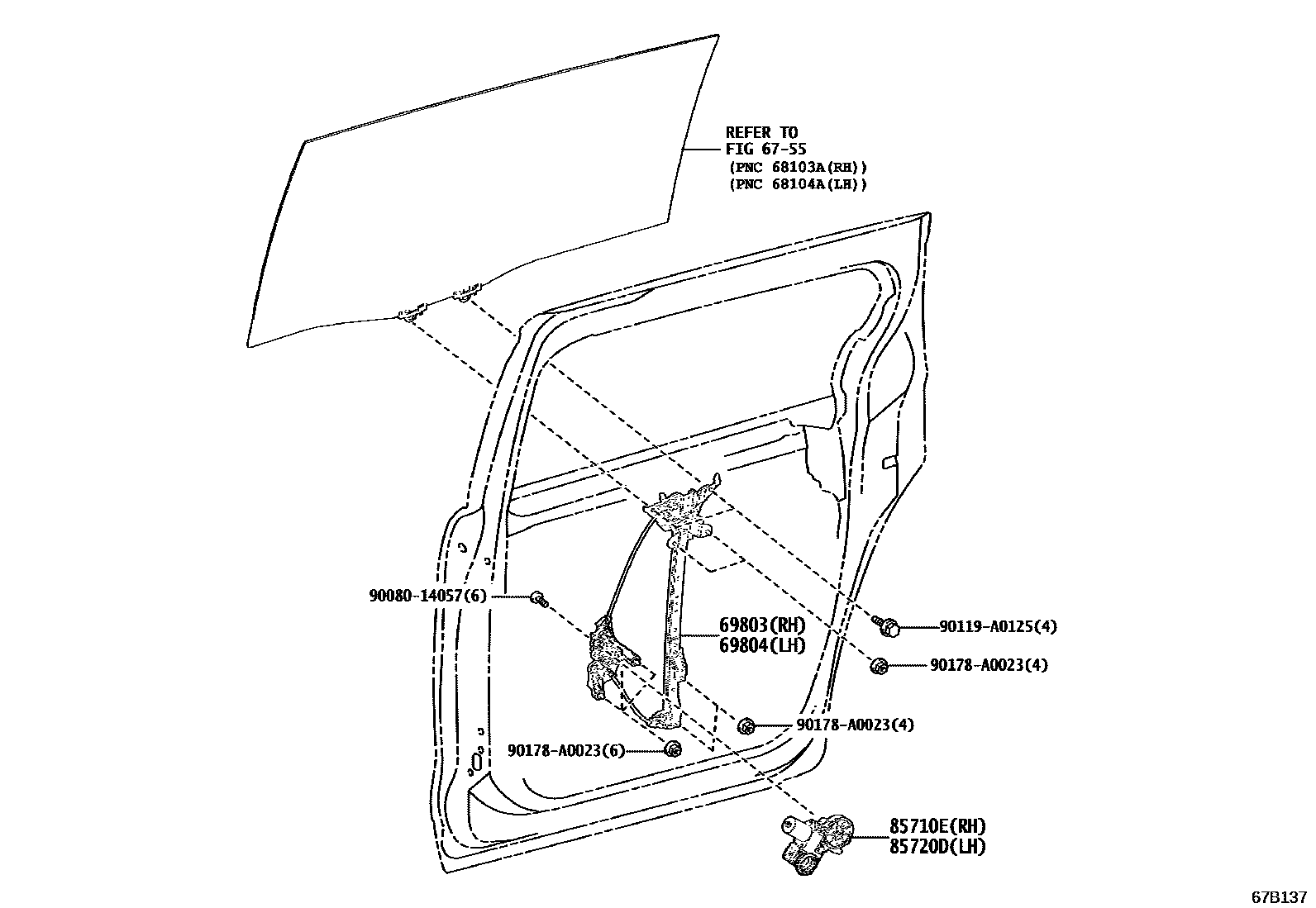

Parts diagram

6755REAR DOOR PANEL & GLASS

→ Go to FIG 67-55

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-08030i202410

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-08030i202410

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-08070i202410

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-08070i202410

9008014057

main90080-14057

90119A0125

main90119-A0125

90178A0023

main90178-A0023

8 parts on this diagram · 1 diagram in section

REAR DOOR WINDOW REGULATOR & HINGE for Toyota SIENNA

This section contains 8 genuine Toyota parts for the REAR DOOR WINDOW REGULATOR & HINGE system of the Toyota SIENNA. Key components include: REAR DOOR PANEL & GLASS, REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH, REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH, MOTOR ASSY, POWER WINDOW REGULATOR, RH, MOTOR ASSY, POWER WINDOW REGULATOR, LH.
