Toyota SIENNA — REAR BUMPER & BUMPER STAY

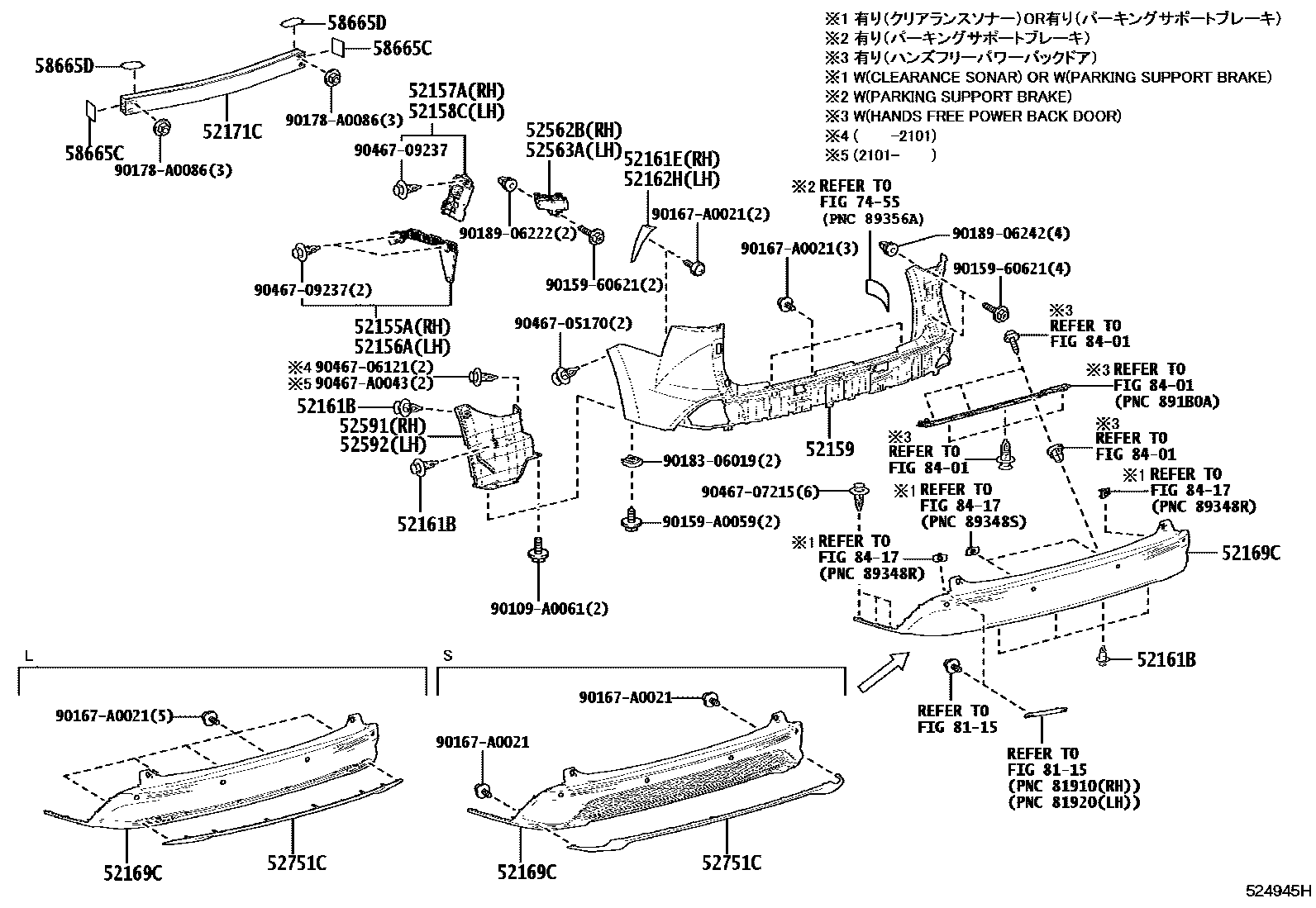

Parts diagram
52155ASUPPORT, REAR BUMPER SIDE, RH
main52155-08020i202011-202410
52156ASUPPORT, REAR BUMPER SIDE, LH
main52156-08010i202410
52157ASUPPORT, REAR BUMPER SIDE, NO.2 RH
main52157-08020i202011-202410
52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH
main52158-08020i202011-202410
52159COVER, REAR BUMPER
main52159-08909i202410
PAINT REQ.
52161BPIECE, REAR BUMPER
main52161-02020×4i202410
52161EEXTENSION, REAR BUMPER SIDE, RH
main52161-08010i202011-202410
52162HEXTENSION, REAR BUMPER SIDE, LH
main52162-08010i202011-202410
52169CCOVER, REAR BUMPER, LOWER
main52169-08010i202011-202410
NO PAINT REQ.
main52169-08030i202011-202106
NO PAINT REQ.
main52169-08900i202410
PAINT REQ.
main52169-08020i202410
NO PAINT REQ.,MEXICO SPEC&PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *RCTA); NO PAINT REQ.,PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB); NO PAINT REQ.,TAIWAN SPEC&PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE &*RCTB)&*PVM; NO PAINT REQ.,TOWING HITCH-WITH&PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB)
main52169-08040supersedes 52169-08902i202011-202106
NO PAINT REQ.,PARKING SUPPORT ALART/BRAKE-WITHOUT; NO PAINT REQ.,TOWING HITCH-WITH&PARKING SUPPORT ALART/BRAKE-WITHOUT
main52169-08901i202410
PAINT REQ.,CANADA SPEC&PARKING SUPPORT ALART/BRAKE-WITHOUT; PAINT REQ.,CANADA SPEC&TOWING HITCH-WITH&PARKING SUPPORT ALART/BRAKE-WITHOUT; PAINT REQ.,HAWAII SPEC&PARKING SUPPORT ALART/BRAKE-WITHOUT; PAINT REQ.,HAWAII SPEC&TOWING HITCH-WITH&PARKING SUPPORT ALART/BRAKE-WITHOUT; PAINT REQ.,PARKING SUPPORT ALART/BRAKE-WITHOUT; PAINT REQ.,PUERTO RICO SPEC&PARKING SUPPORT ALART/BRAKE-WITHOUT; PAINT REQ.,PUERTO RICO SPEC&TOWING HITCH-WITH&PARKING SUPPORT ALART/BRAKE-WITHOUT; PAINT REQ.,TOWING HITCH-WITH&PARKING SUPPORT ALART/BRAKE-WITHOUT
52171CREINFORCEMENT, REAR BUMPER
main52171-08040i202011-202304
main52171-08041i202305-202312
main52171-08042i202410
52562BRETAINER, REAR BUMPER, UPPER RH
main52562-08010i202410
52563ARETAINER, REAR BUMPER, UPPER LH
main52563-08010i202410
52591SEAL, REAR BUMPER SIDE, RH
main52591-08050i202410
52592SEAL, REAR BUMPER SIDE, LH
main52592-08050i202410
52751CMOULDING, REAR BUMPER
main52751-08010i202410
main52751-08900i202011-202410
58665CPLATE, REAR FLOOR, CENTER LOWER NO.1 LH
main58665-08030×2i202011-202410
58665DSHEET, REAR FLOOR SILENCER, NO.5
main58665-08040×2i202011-202410
7455CAUTION PLATE
→ Go to FIG 74-55
8115REFLEX REFLECTOR
→ Go to FIG 81-15
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
8417CLEARANCE & BACK SONAR
→ Go to FIG 84-17
90109A0061
main90109-A0061
9015960621
main90159-60621
90159A0059
main90159-A0059
90167A0021
main90167-A0021
90178A0086
main90178-A0086
9018306019
main90183-06019
9018906222
main90189-06222
9018906242
main90189-06242
9046705170
main90467-05170
9046706121
main90467-06121
9046707215
main90467-07215
9046709237
main90467-09237
90467A0043
main90467-A0043

34 parts on this diagram · 1 diagram in section

REAR BUMPER & BUMPER STAY for Toyota SIENNA

This section contains 34 genuine Toyota parts for the REAR BUMPER & BUMPER STAY system of the Toyota SIENNA. Key components include: SUPPORT, REAR BUMPER SIDE, RH, SUPPORT, REAR BUMPER SIDE, LH, SUPPORT, REAR BUMPER SIDE, NO.2 RH, SUPPORT, REAR BUMPER SIDE, NO.2 LH, COVER, REAR BUMPER.
