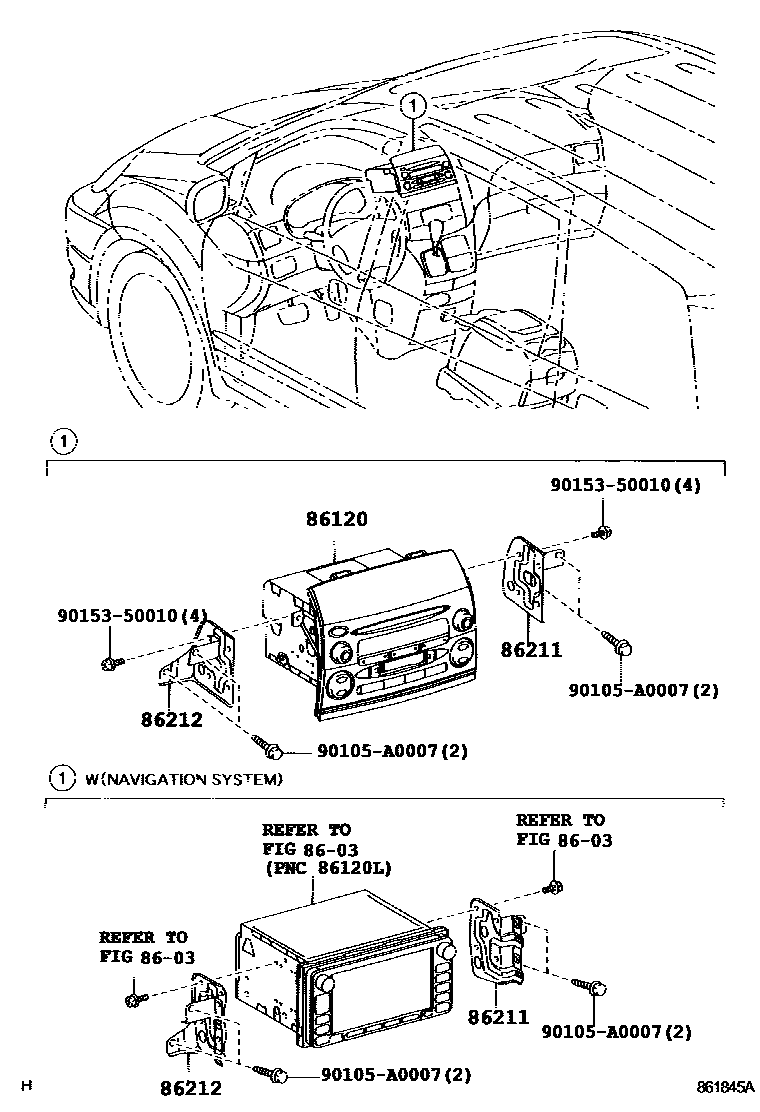

Toyota SIENNA — RADIO RECEIVER & AMPLIFIER & CONDENSER

8603NAVIGATION & FRONT MONITOR DISPLAY

86120RECEIVER ASSY, RADIO

main86120-08210supersedes 86120-AE062i200708

FUJITSU TEN,ID=11827; FUJITSU TEN,ID=11827,AUDIO-AM/FM 6CD-CHANGER 6SPEAKER; FUJITSU TEN,ID=11827,AUDIO-AVN:AM/FM/4CD-CHANGER 10SPEAKER(JBL); FUJITSU TEN,ID=11827,LIMITED PACKAGE&AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWERBACK DOOR&AUDIO-AVN:AM/FM/4CD-CHANGER 10SPEAKER(JBL); FUJITSU TEN,ID=11827,OPTION FLOOR&PACKAGE OPTION 2&PACKAGE OPTION 3&AUTO & EASY CLOSER DOOR-RH SLIDE DR.&AUDIO-AVN:AM/FM/4CD-CHANGER 10SPEAKER(JBL)

main86120-08220i200708

FUJITSU TEN,ID=11826; FUJITSU TEN,ID=11826,CE PACKAGE&AUDIO-AM/FM CD 6SPEAKER

main86120-AE010i200301-200409

FUJITSU TEN; FUJITSU TEN,AUDIO-AM/FM CST CD 6SP

main86120-AE011i200409-200509

FUJITSU TEN; FUJITSU TEN,AUDIO-AM/FM CST CD 6SP

main86120-AE040i200509-200612

FUJITSU TEN,ID=11809; FUJITSU TEN,ID=11809,CE PACKAGE&AUDIO-AM/FM CD 6SPEAKER

main86120-AE062i200612-200708

PIONEER,ID=P1816; PIONEER,ID=P1816,AUDIO-AVN:AM/FM/4CD-CHANGER 10SPEAKER(JBL); PIONEER,ID=P1816,LIMITED PACKAGE&AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACKDOOR&AUDIO-AVN:AM/FM/4CD-CHANGER 10SPEAKER(JBL); PIONEER,ID=P1816,OPTION FLOOR&AUTO & EASY CLOSER DOOR-RH SLD DR.+LH CLSR ONLY&AUDIO-AM/FM 6CD-CHANGER 10SPEAKER(JBL); PIONEER,ID=P1816,OPTION FLOOR&AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&AUDIO-AM/FM 6CD-CHANGER 10SPEAKER(JBL); PIONEER,ID=P1816,OPTION FLOOR&AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR&AUDIO-AM/FM 6CD-CHANGER 10SPEAKER(JBL); PIONEER,ID=P1816,OPTION FLOOR&PACKAGE OPTION 2&PACKAGE OPTION 3&AUTO & EASY CLOSER DOOR-RH SLD DR.+LH CLSR ONLY&AUDIO-AM/FM 6CD-CHANGER 10SPEAKER(JBL); PIONEER,ID=P1816,OPTION FLOOR&PACKAGE OPTION 2&PACKAGE OPTION 3&AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&AUDIO-AM/FM 6CD-CHANGER 10SPEAKER(JBL); PIONEER,ID=P1816,OPTION FLOOR&PACKAGE OPTION 2&PACKAGE OPTION 3&AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR&AUDIO-AM/FM 6CD-CHANGER 10SPEAKER(JBL)

main86120-08200supersedes 86120-08210i200708

PIONEER,ID=P1820,AUDIO-AM/FM 6CD-CHANGER 10SPEAKER(JBL); PIONEER,ID=P1820,OPTION FLOOR&AUTO & EASY CLOSER DOOR-RH SLD DR.+LH CLSR ONLY&AUDIO-AM/FM 6CD-CHANGER 10SPEAKER(JBL); PIONEER,ID=P1820,OPTION FLOOR&AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&AUDIO-AM/FM 6CD-CHANGER 10SPEAKER(JBL); PIONEER,ID=P1820,OPTION FLOOR&AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR&AUDIO-AM/FM 6CD-CHANGER 10SPEAKER(JBL); PIONEER,ID=P1820,OPTION FLOOR&PACKAGE OPTION 2&PACKAGE OPTION 3&AUTO & EASY CLOSER DOOR-RH SLD DR.+LH CLSR ONLY&AUDIO-AM/FM 6CD-CHANGER 10SPEAKER(JBL); PIONEER,ID=P1820,OPTION FLOOR&PACKAGE OPTION 2&PACKAGE OPTION 3&AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&AUDIO-AM/FM 6CD-CHANGER 10SPEAKER(JBL); PIONEER,ID=P1820,OPTION FLOOR&PACKAGE OPTION 2&PACKAGE OPTION 3&AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR&AUDIO-AM/FM 6CD-CHANGER 10SPEAKER(JBL)

main86120-AE020supersedes 86120-AE030i200409-200509

FUJITSU TEN,OPTION FLOOR NO.1&AUDIO-AM/FM CST CD 10SP(JBL); FUJITSU TEN,OPTION FLOOR NO.1&OPTION-E/G ROOM MAIN&OPTION-INSTRUMENT WIRE&AUDIO-AM/FM CST CD 10SP(JBL)

main86120-AE030i200409-200509

MATSUSHITA,OPTION FLOOR NO.1&AUDIO-AM/FM CST CDCHANGER-6 10SP(JBL); MATSUSHITA,OPTION FLOOR NO.1&OPTION-E/G ROOM MAIN&OPTION-INSTRUMENT WIRE&AUDIO-AM/FM CST CDCHANGER-6 10SP(JBL)

main86120-AE050supersedes 86120-AE062i200509-200602

FUJITSU TEN,ID=11810; FUJITSU TEN,ID=11810,AUDIO-AM/FM 6CD-CHANGER 6SPEAKER

main86120-AE053supersedes 86120-AE062i200603-200612

FUJITSU TEN ID=11818; FUJITSU TEN ID=11818,AUDIO-AM/FM 6CD-CHANGER 6SPEAKER

main86120-AE061supersedes 86120-AE062i200509-200602

PIONEER,ID=P1804; PIONEER,ID=P1804,OPTION FLOOR&EASY CLOSER DOOR-RH SLIDE DOOR&AUDIO-AM/FM 6CD-CHANGER 10SPEAKER(JBL); PIONEER,ID=P1804,OPTION FLOOR&EASY CLOSER DOOR-RH&LH SLIDE DOOR&AUDIO-AM/FM 6CD-CHANGER 10SPEAKER(JBL); PIONEER,ID=P1804,OPTION FLOOR&PACKAGE OPTION 2&PACKAGE OPTION 3&EASY CLOSER DOOR-RH SLIDE DOOR&AUDIO-AM/FM 6CD-CHANGER 10SPEAKER(JBL); PIONEER,ID=P1804,OPTION FLOOR&PACKAGE OPTION 2&PACKAGE OPTION 3&EASY CLOSER DOOR-RH&LH SLIDE DOOR&AUDIO-AM/FM 6CD-CHANGER 10SPEAKER(JBL)

86211BRACKET, RADIO, NO.1

main86211-AE010i200301-200509

main86211-AE011i200612

main86211-AE020i200409-200509

AUDIO-AVN:AM/FM CD 10SP(JBL)

86212BRACKET, RADIO, NO.2

main86212-AE010i200301-200509

main86212-AE011i200612

main86212-AE020i200301-200409

EMV & NAVIGATION SYSTEM-WITH

90105A0007

main90105-A0007

9015350010

main90153-50010

6 parts on this diagram · 6 diagrams in section

RADIO RECEIVER & AMPLIFIER & CONDENSER for Toyota SIENNA

This section contains 18 genuine Toyota parts for the RADIO RECEIVER & AMPLIFIER & CONDENSER system of the Toyota SIENNA. Key components include: CONDENSER, RADIO SETTING, NAVIGATION & FRONT MONITOR DISPLAY, RECEIVER ASSY, RADIO, ADAPTER ASSY, STEREO JACK, NO.1, BRACKET, RADIO, NO.1.
