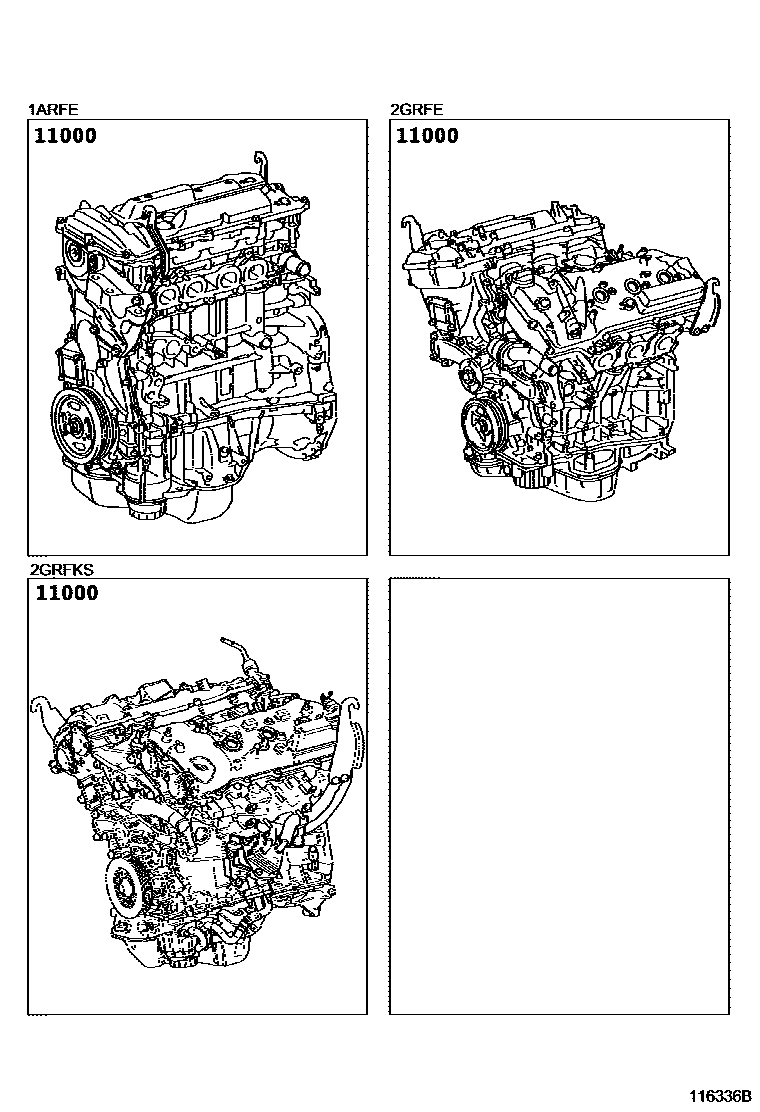

Toyota SIENNA — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

main19000-0P190i2GRFE..GSL3#201001-201109

sub12327-31070

sub90119-A0127

main19000-0P191i2GRFE..GSL3#201409-201608

sub19000-31L81

main19000-0P520i2GRFKS..GSL3#201608-201711

sub12601-0P011

sub90467-06200

main19000-0P521i2GRFKS..GSL3#201903-202009

main19000-0V050i1ARFE..ASL30201109-201111

(L)

main19000-0V051i1ARFE..ASL30201111-201201

(L)

main19000-0V052i1ARFE..ASL30201201-201308

(L)

main19000-36190i1ARFE..ASL30201005-201109

main19000-36340i1ARFE..ASL30201110-201201

(J)

main19000-36341i1ARFE..ASL30201201-201308

(J)

main19000-0P180i2GRFE..GSL30,35201001-201109

TOWING PACKAGE-FOR 3500LBS

sub12327-31070

sub90119-A0127

main19000-0P181supersedes 19000-0P191i2GRFE..GSL30;2GRFE..GSL35..LE,XLE201109-201409

TOWING PACKAGE-FOR 3500LBS

sub19000-31P30

main19000-0P200i2GRFE..GSL30..LE,STD,XLE201001-201109

MEXICO SPEC

sub12327-31070

sub90119-A0127

main19000-0P202i2GRFE..GSL30..LE,STD,XLE201109-201409

MEXICO SPEC

sub19000-31A00

sub12180-0P021

main19000-0P510i2GRFKS..GSL30,35201711-201903

TOWING PACKAGE-FOR 3500LBS

sub12601-0P011

sub90467-06200

main19000-0P511i2GRFKS..GSL30,35201903-202009

TOWING PACKAGE-FOR 3500LBS

1 parts on this diagram · 1 diagram in section
