Toyota SIENNA — MOUNTING

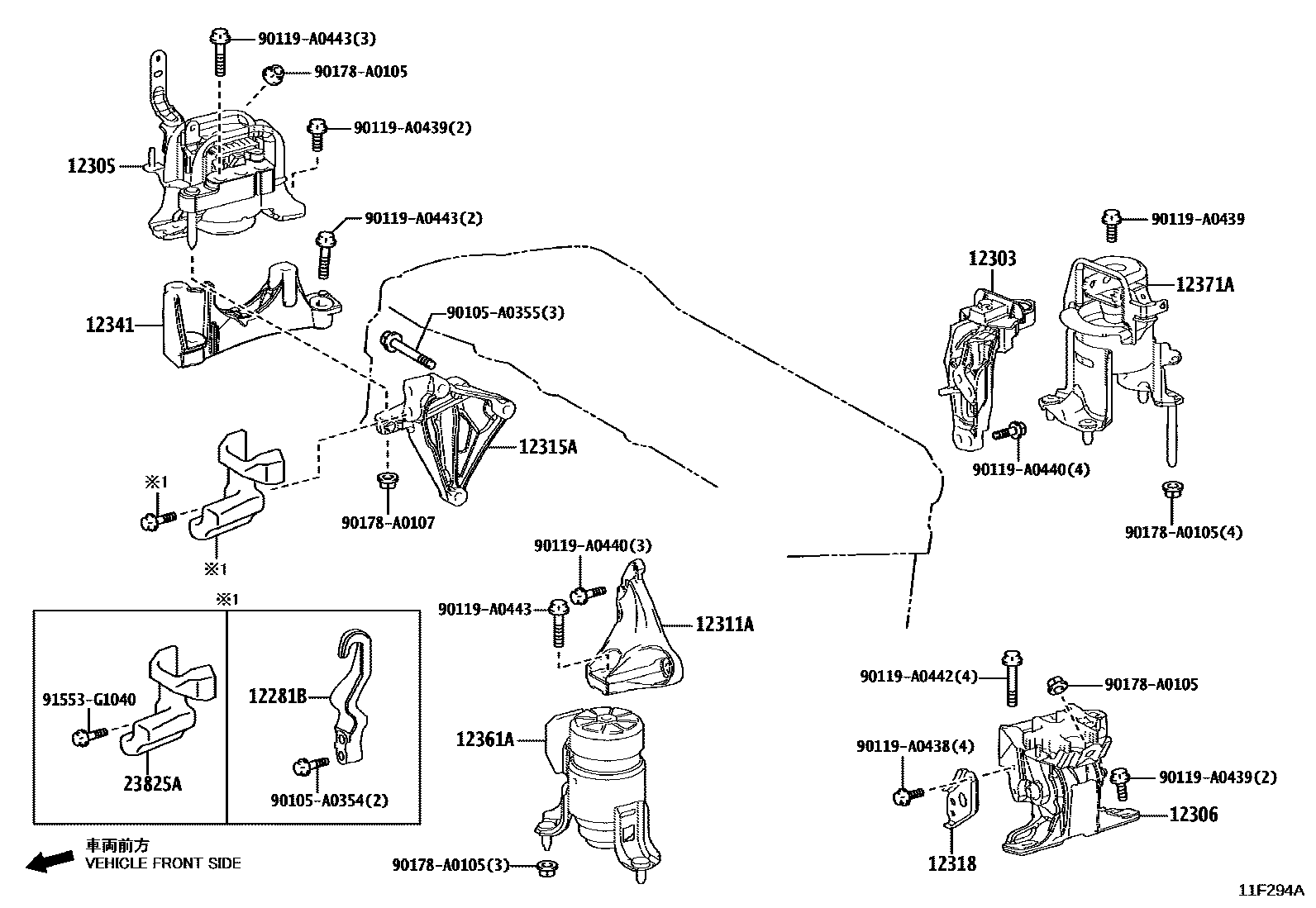

Parts diagram

12281BHANGER, ENGINE, NO.1

main12281-25030i202011-202410

12303BRACKET SUB-ASSY, ENGINE MOUNTING, REAR

main12303-F0140i202410

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-F0150i202410

12306INSULATOR SUB-ASSY, ENGINE MOUNTING, LH

main12306-F0080i202011-202410

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-25120i202410

(J)

main12311-F0120i202011-202207

main12311-F0200i202410

(L)

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-25031i202410

12318STAY, ENGINE MOUNTING, LH

main12318-F0110i202410

12341SPACER, ENGINE MOUNTING

main12341-F0010i202410

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-F0210i202410

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-F0210i202410

23825AGUARD, FUEL DELIVERY

main23825-25010i202410

(J)

main23825-F0080i202410

(L)

90105A0354

main90105-A0354

90105A0355

main90105-A0355

90119A0438

main90119-A0438

90119A0439

main90119-A0439

90119A0440

main90119-A0440

90119A0442

main90119-A0442

90119A0443

main90119-A0443

90178A0105

main90178-A0105

90178A0107

main90178-A0107

91553G1040

main91553-G1040

21 parts on this diagram · 1 diagram in section

MOUNTING for Toyota SIENNA

This section contains 21 genuine Toyota parts for the MOUNTING system of the Toyota SIENNA. Key components include: HANGER, ENGINE, NO.1, BRACKET SUB-ASSY, ENGINE MOUNTING, REAR, INSULATOR SUB-ASSY, ENGINE MOUNTING, RH, INSULATOR SUB-ASSY, ENGINE MOUNTING, LH, BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE).
