Toyota SIENNA — MIRROR

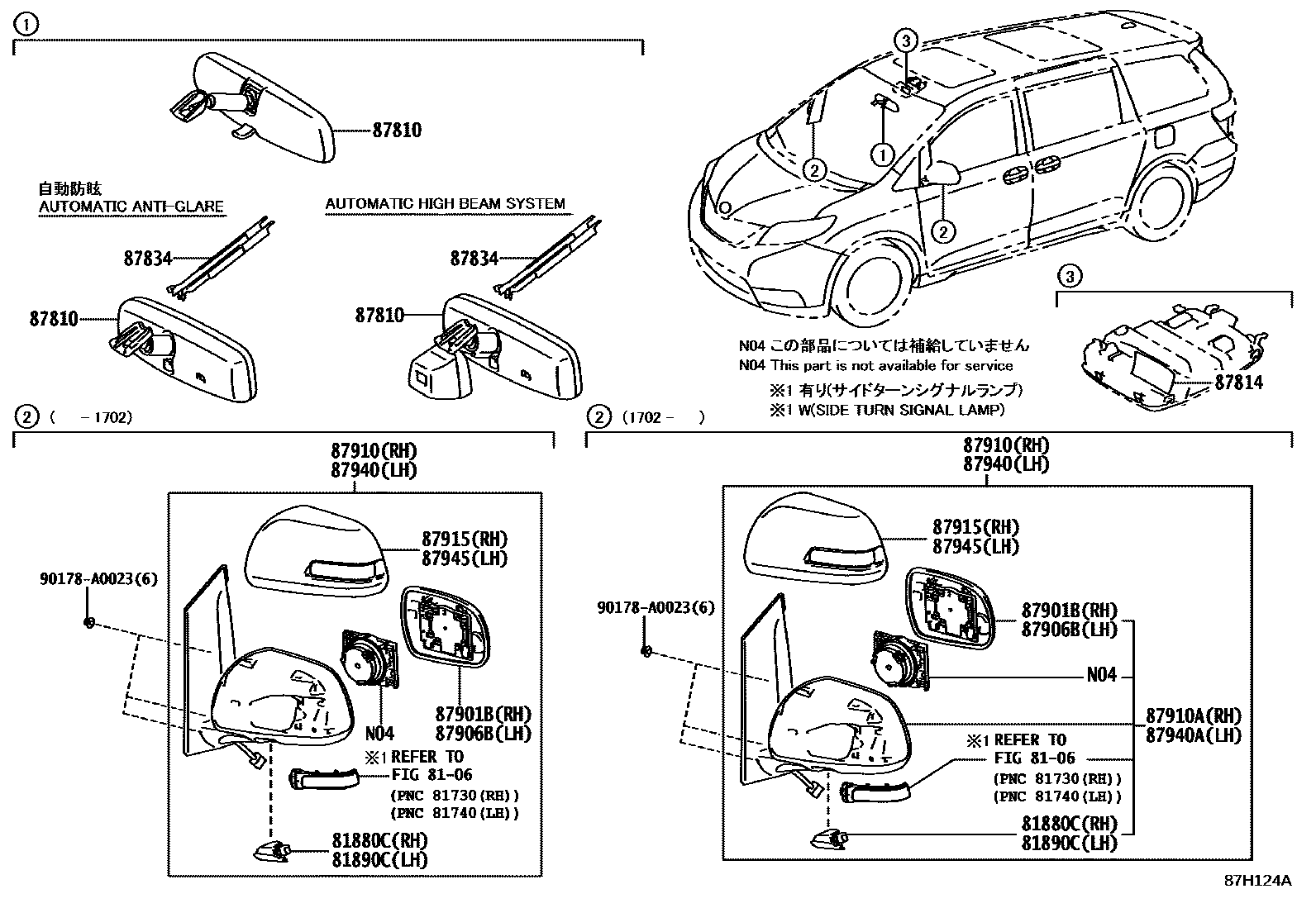

Parts diagram
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
→ Go to FIG 81-06
81880CLAMP ASSY, OUTER MIRROR, RH
main81880-08010i201711-202009
HIGH GRADE PACKAGE&BACK MONITOR-WITH(WIDE ANGLE BACK MONITOR); HIGH GRADE PACKAGE&HEADLAMP-DISCHARGE (PES) & WITH(*AHB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
81890CLAMP ASSY, OUTER MIRROR, LH
main81890-08010i201711-202009
HIGH GRADE PACKAGE&BACK MONITOR-WITH(WIDE ANGLE BACK MONITOR); HIGH GRADE PACKAGE&HEADLAMP-DISCHARGE (PES) & WITH(*AHB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
87810MIRROR ASSY, INNER REAR VIEW
main87810-06080i201001-201308
main87810-06190i201711-202009
AMERICAN SAMOA SPEC&DE-CONTENT PACKAGE; GUAM SPEC&DE-CONTENT PACKAGE; INSIDE REAR VIEW MIRROR-NON-GLARE TYPE; MEXICO SPEC&DE-CONTENT PACKAGE; PUERTORICO SPEC&DE-CONTENT PACKAGE; SAIPAN SPEC&DE-CONTENT PACKAGE
main87810-08020i201001-201008
main87810-08021i201009-201409
main87810-08040i201608-201711
INSIDE REAR VIEW MIRROR-AUTO-ANTI GLARE & COMPASS & HOMELINK
main87810-08060i201711-202009
INSIDE REAR VIEW MIRROR-AUTO-ANTI GLARE&COMPASS&HOMELINK
main87810-08030i201001-201008
HIGH GRADE PACKAGE&HEADLAMP-DISCHARGE
main87810-08031i201009-201409
HIGH GRADE PACKAGE&HEADLAMP-DISCHARGE
main87810-08050i201409-201608
HIGH GRADE PACKAGE&HEADLAMP-DISCHARGE
main87810-08140i201808-202009
AUDIO-AVN(AM/FM/CD) 10SPEAKER; AUDIO-AVN(AM/FM/CD) 6SPEAKER; INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & HOMELINK; MEXICO SPEC&AUDIO-AVN(AM/FM/CD) 10SPEAKER; MEXICO SPEC&AUDIO-AVN(AM/FM/CD) 6SPEAKER
87814MIRROR, INNER REAR VIEW MIRROR(BOX ASSY, ROOF CONSOLE)
main87814-08020i201409-201608
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87818-AE010i201608-201711
INSIDE REAR VIEW MIRROR-AUTO-ANTI GLARE & COMPASS & HOMELINK
main87818-AC010i201808-202009
MEXICO SPEC&AUDIO-AVN(AM/FM/CD) 10SPEAKER; MEXICO SPEC&AUDIO-AVN(AM/FM/CD) 6SPEAKER
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
main87903-08010i201001-201409
main87903-08020i201001-201108
CANADA SPEC
main87903-08021i201109-201409
CANADA SPEC
main87903-08070i201711-202009
main87903-08080i201409-201608
CANADA SPEC
main87903-08090i201711-202009
LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)
main87903-08030i201001-201108
HIGH GRADE PACKAGE
main87903-08031i201109-201208
HIGH GRADE PACKAGE
main87903-08040i201409-201608
LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)
main87903-08050i201208-201409
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR)
main87903-08060i201711-202009
HIGH GRADE PACKAGE&BACK MONITOR-WITH(WIDE ANGLE BACK MONITOR); HIGH GRADE PACKAGE&HEADLAMP-DISCHARGE (PES) & WITH(*AHB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
main87906-08010i201001-201409
main87906-08020i201001-201108
CANADA SPEC
main87906-08021i201109-201409
CANADA SPEC
main87906-08070i201608-201711
main87906-08080i201409-201608
CANADA SPEC
main87906-08090i201711-202009
LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)
main87906-08030i201001-201108
HIGH GRADE PACKAGE
main87906-08031i201109-201208
HIGH GRADE PACKAGE
main87906-08040i201409-201608
LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)
main87906-08050i201409-201608
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)
main87906-08060i201711-202009
HIGH GRADE PACKAGE&BACK MONITOR-WITH(WIDE ANGLE BACK MONITOR); HIGH GRADE PACKAGE&HEADLAMP-DISCHARGE (PES) & WITH(*AHB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-08080i201001-201309
main87910-08081i201310-201409
NO PAINT REQ.
main87910-08090-A0i201001-201108
CANADA SPEC,SUPER WHITE 2,040; SUPER WHITE 2,040
main87910-08090-B1i201001-201108
CANADA SPEC,GRAY M.M.,1H1; GRAY M.M.,1H1
main87910-08090-B2i201001-201108
CANADA SPEC,SILVER ME.,1D6; SILVER ME.,1D6
main87910-08090-C0i201001-201108
BLACK,202; CANADA SPEC,BLACK,202
main87910-08090-D0i201001-201108
CANADA SPEC,DK. RED M.M.,3Q3; DK. RED M.M.,3Q3
main87910-08090-E0i201001-201108
BEIGE ME.,4T8; CANADA SPEC,BEIGE ME.,4T8
main87910-08090-G0i201001-201108
CANADA SPEC,OLIVE M.M.,6T7; OLIVE M.M.,6T7
main87910-08090-H0i201001-201108
CANADA SPEC,DK. TEAL M.M.,785; DK. TEAL M.M.,785
main87910-08091-A0i201109-201112
CANADA SPEC,SUPER WHITE 2,040; SUPER WHITE 2,040
main87910-08091-B1i201109-201112
CANADA SPEC,GRAY M.M.,1H1; GRAY M.M.,1H1
main87910-08091-B2i201109-201112
CANADA SPEC,SILVER ME.,1D6; SILVER ME.,1D6
main87910-08091-C0i201109-201112
BLACK,202; CANADA SPEC,BLACK,202
main87910-08091-D0i201109-201112
CANADA SPEC,DK. RED M.M.,3Q3; DK. RED M.M.,3Q3
main87910-08091-E0i201109-201112
BEIGE ME.,4T8; CANADA SPEC,BEIGE ME.,4T8
main87910-08091-G0i201109-201112
CANADA SPEC,OLIVE M.M.,6T7; OLIVE M.M.,6T7
main87910-08091-H0i201109-201112
CANADA SPEC,DK. TEAL M.M.,785; DK. TEAL M.M.,785
main87910-08092-A0i201201-201208
CANADA SPEC,SUPER WHITE 2,040; SUPER WHITE 2,040
main87910-08092-B1i201201-201208
CANADA SPEC,GRAY M.M.,1H1; GRAY M.M.,1H1
main87910-08092-B2i201201-201208
CANADA SPEC,SILVER ME.,1D6; SILVER ME.,1D6
main87910-08092-C0i201201-201208
BLACK,202; CANADA SPEC,BLACK,202
main87910-08092-D0i201201-201208
CANADA SPEC,DK. RED M.M.,3Q3; DK. RED M.M.,3Q3
main87910-08092-E0i201201-201208
BEIGE ME.,4T8; CANADA SPEC,BEIGE ME.,4T8
main87910-08092-G0i201201-201208
CANADA SPEC,OLIVE M.M.,6T7; OLIVE M.M.,6T7
main87910-08092-H0i201201-201208
CANADA SPEC,DK. TEAL M.M.,785; DK. TEAL M.M.,785
main87910-08093-A0i201208-201309
CANADA SPEC,SUPER WHITE 2,040; SUPER WHITE 2,040
main87910-08093-B1i201208-201309
CANADA SPEC,GRAY M.M.,1H1; GRAY M.M.,1H1
main87910-08093-B2i201208-201309
CANADA SPEC,SILVER ME.,1D6; SILVER ME.,1D6
main87910-08093-C0i201208-201309
BLACK,202; CANADA SPEC,BLACK,202
main87910-08093-D0i201208-201309
CANADA SPEC,DK. RED M.M.,3Q3; DK. RED M.M.,3Q3
main87910-08093-E0i201208-201309
BEIGE ME.,4T8; CANADA SPEC,BEIGE ME.,4T8
main87910-08093-G0i201208-201309
CANADA SPEC,OLIVE M.M.,6T7; OLIVE M.M.,6T7
main87910-08093-J0i201208-201309
CANADA SPEC,GRAYISH BLUE M.M.,8V5; GRAYISH BLUE M.M.,8V5
main87910-08094-A0i201310-201409
CANADA SPEC,SUPER WHITE 2,040; SUPER WHITE 2,040
main87910-08094-B1i201310-201409
CANADA SPEC,GRAY M.M.,1H1; GRAY M.M.,1H1
main87910-08094-B2i201310-201409
CANADA SPEC,SILVER ME.,1D6; SILVER ME.,1D6
main87910-08094-C0i201310-201409
BLACK,202; CANADA SPEC,BLACK,202
main87910-08094-D0i201310-201409
CANADA SPEC,DK. RED M.M.,3Q3; DK. RED M.M.,3Q3
main87910-08094-E0i201310-201409
BEIGE ME.,4T8; CANADA SPEC,BEIGE ME.,4T8
main87910-08094-G0i201310-201409
CANADA SPEC,OLIVE M.M.,6T7; OLIVE M.M.,6T7
main87910-08094-J0i201310-201409
CANADA SPEC,GRAYISH BLUE M.M.,8V5; GRAYISH BLUE M.M.,8V5
main87910-08140i201409-201608
NO PAINT REQ.
main87910-08150-A0i201409-201608
CANADA SPEC,SUPER WHITE 2,040; SUPER WHITE 2,040
main87910-08150-B0i201409-201608
CANADA SPEC,SILVER ME.,1D6; SILVER ME.,1D6
main87910-08150-B1i201409-201608
CANADA SPEC,GRAY M.M.,1H1; GRAY M.M.,1H1
main87910-08150-C1i201608-201711
ATTITUDE BLACK MC.,218; CANADA SPEC,ATTITUDE BLACK MC.,218
main87910-08150-D0i201409-201608
CANADA SPEC,DK. RED M.M.,3Q3; DK. RED M.M.,3Q3
main87910-08150-F0i201409-201608
CANADA SPEC,LT.YELLOW M.M.,5B2; LT.YELLOW M.M.,5B2
main87910-08150-J0i201608-201711
CANADA SPEC,LT.BLUE ME.,8S4; LT.BLUE ME.,8S4
main87910-08150-J1i201409-201608
CANADA SPEC,GRAYISH BLUE M.M.,8V5; GRAYISH BLUE M.M.,8V5
main87910-08170-B0i201711-201808
LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),SILVER ME.,1D6; SILVER ME.,1D6
main87910-08170-B1i201711-202009
GRAY M.M.,1H1; LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),GRAY M.M.,1H1
main87910-08170-B2i201808-202009
LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),SILVER ME.,1J9; SILVER ME.,1J9
main87910-08170-C0i201711-202009
ATTITUDE BLACK MC.,218; LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),ATTITUDE BLACK MC.,040 ,1J9 ,218 ,3Q3
main87910-08170-D0i201711-202009
DK. RED M.M.,3Q3; LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),DK. RED M.M.,3Q3
main87910-08170-E0i201711-202009
DARK SHERRY M.M.,4W4
main87910-08170-G0i201711-202009
ALUMINA JADE ME.,6W4
main87910-08170-J0i201711-202009
DK.BLUE M.M.,8W6; LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),DK.BLUE M.M.,8W6
main87910-08100-A0i201001-201108
HIGH GRADE PACKAGE,WHITE PEARL CS.,070
main87910-08100-B1i201001-201108
HIGH GRADE PACKAGE,GRAY M.M.,1H1
main87910-08100-B2i201001-201108
HIGH GRADE PACKAGE,SILVER ME.,1D6
main87910-08100-C0i201001-201108
HIGH GRADE PACKAGE,BLACK,202
main87910-08100-D0i201001-201108
HIGH GRADE PACKAGE,DK. RED M.M.,3Q3
main87910-08100-E0i201001-201108
HIGH GRADE PACKAGE,BEIGE ME.,4T8
main87910-08100-G0i201001-201108
HIGH GRADE PACKAGE,OLIVE M.M.,6T7
main87910-08100-H0i201001-201108
HIGH GRADE PACKAGE,DK. TEAL M.M.,785
main87910-08101-A0i201109-201203
HIGH GRADE PACKAGE,WHITE PEARL CS.,070
main87910-08101-B1i201109-201203
HIGH GRADE PACKAGE,GRAY M.M.,1H1
main87910-08101-B2i201109-201203
HIGH GRADE PACKAGE,SILVER ME.,1D6
main87910-08101-C0i201109-201203
HIGH GRADE PACKAGE,BLACK,202
main87910-08101-D0i201109-201203
HIGH GRADE PACKAGE,DK. RED M.M.,3Q3
main87910-08101-E0i201109-201203
HIGH GRADE PACKAGE,BEIGE ME.,4T8
main87910-08101-G0i201109-201203
HIGH GRADE PACKAGE,OLIVE M.M.,6T7
main87910-08101-H0i201109-201203
HIGH GRADE PACKAGE,DK. TEAL M.M.,785
main87910-08102-A0i201203-201207
HIGH GRADE PACKAGE,WHITE PEARL CS.,070
main87910-08102-B1i201203-201207
HIGH GRADE PACKAGE,GRAY M.M.,1H1
main87910-08102-B2i201203-201207
HIGH GRADE PACKAGE,SILVER ME.,1D6
main87910-08102-C0i201203-201207
HIGH GRADE PACKAGE,BLACK,202
main87910-08102-D0i201203-201207
HIGH GRADE PACKAGE,DK. RED M.M.,3Q3
main87910-08102-E0i201203-201207
HIGH GRADE PACKAGE,BEIGE ME.,4T8
main87910-08102-G0i201203-201207
HIGH GRADE PACKAGE,OLIVE M.M.,6T7
main87910-08102-H0i201203-201207
HIGH GRADE PACKAGE,DK. TEAL M.M.,785
main87910-08102-J0i201203-201207
HIGH GRADE PACKAGE,GRAYISH BLUE M.M.,8V5
main87910-08112-A0i201208-201309
LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),SUPER WHITE 2,040
main87910-08112-B0i201208-201309
LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),SILVER ME.,1D6
main87910-08112-B1i201208-201309
LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),GRAY M.M.,1H1
main87910-08112-C0i201208-201309
LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),BLACK,202
main87910-08112-D0i201208-201309
LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),DK. RED M.M.,3Q3
main87910-08112-E0i201208-201309
LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),BEIGE ME.,4T8
main87910-08112-G0i201208-201309
LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),OLIVE M.M.,6T7
main87910-08112-J0i201208-201309
LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),GRAYISH BLUE M.M.,8V5
main87910-08113-A0i201608-201711
LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),SUPER WHITE 2,040
main87910-08113-A1supersedes 87910-08150-A1i201409-201608
LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),WHITE PEARL CS.,070
main87910-08113-B0i201409-201608
LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),SILVER ME.,1D6
main87910-08113-B1i201409-201608
LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),GRAY M.M.,1H1
main87910-08113-C0i201310-201409
LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),BLACK,202
main87910-08113-C1i201608-201711
LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),ATTITUDE BLACK MC.,218
main87910-08113-D0i201310-201409
LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),DK. RED M.M.,3Q3
main87910-08113-E0i201310-201409
LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),BEIGE ME.,4T8
main87910-08113-F0i201409-201608
LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),LT.YELLOW M.M.,5B2
main87910-08113-G0i201310-201409
LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),OLIVE M.M.,6T7
main87910-08113-J0i201608-201711
LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),GRAYISH BLUE M.M.,8V5
main87910-08113-J1i201409-201608
LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),LT.BLUE ME.,8S4
main87910-08121-A1i201208-201309
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),WHITE PEARL CS.,070
main87910-08121-B0i201208-201309
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),SILVER ME.,1D6
main87910-08121-B1i201208-201309
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),GRAY M.M.,1H1
main87910-08121-C0i201208-201309
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),BLACK,202
main87910-08121-D0i201208-201309
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),DK. RED M.M.,3Q3
main87910-08121-E0i201208-201309
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),BEIGE ME.,4T8
main87910-08121-G0i201208-201309
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),OLIVE M.M.,6T7
main87910-08121-J0i201208-201309
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),GRAYISH BLUE M.M.,8V5
main87910-08122-A1i201608-201711
WITH(DRIVER SEAT: MEMORY POWER SEAT)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),WHITE PEARL CS.,070
main87910-08122-B0i201608-201711
WITH(DRIVER SEAT: MEMORY POWER SEAT)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),SILVER ME.,1D6
main87910-08122-B1i201608-201711
WITH(DRIVER SEAT: MEMORY POWER SEAT)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),GRAY M.M.,1H1
main87910-08122-C0i201310-201409
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),BLACK,202
main87910-08122-C1i201608-201711
WITH(DRIVER SEAT: MEMORY POWER SEAT)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),ATTITUDE BLACK MC.,218
main87910-08122-D0i201608-201711
WITH(DRIVER SEAT: MEMORY POWER SEAT)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),DK. RED M.M.,3Q3
main87910-08122-E0i201310-201409
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),BEIGE ME.,4T8
main87910-08122-F0i201608-201711
WITH(DRIVER SEAT: MEMORY POWER SEAT)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),LT.YELLOW M.M.,5B2
main87910-08122-G0i201310-201409
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),OLIVE M.M.,6T7
main87910-08122-J0i201409-201608
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),GRAYISH BLUE M.M.,8V5
main87910-08122-J1i201608-201711
WITH(DRIVER SEAT: MEMORY POWER SEAT)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),LT.BLUE ME.,8S4
main87910-08130-A0i201711-202009
HIGH GRADE PACKAGE&BACK MONITOR-WITH(WIDE ANGLE BACK MONITOR),WHITE PEARL CS.,070
main87910-08130-B0i201711-201808
HIGH GRADE PACKAGE&BACK MONITOR-WITH(WIDE ANGLE BACK MONITOR),SILVER ME.,1D6
main87910-08130-B1i201711-202009
HIGH GRADE PACKAGE&BACK MONITOR-WITH(WIDE ANGLE BACK MONITOR),GRAY M.M.,1H1
main87910-08130-B2i201808-202009
HIGH GRADE PACKAGE&BACK MONITOR-WITH(WIDE ANGLE BACK MONITOR),SILVER ME.,1J9
main87910-08130-C0i201711-202009
HIGH GRADE PACKAGE&BACK MONITOR-WITH(WIDE ANGLE BACK MONITOR),ATTITUDE BLACK MC.,218
main87910-08130-D0i201711-202009
HIGH GRADE PACKAGE&BACK MONITOR-WITH(WIDE ANGLE BACK MONITOR),DK. RED M.M.,3Q3
main87910-08130-E0i201711-202009
HIGH GRADE PACKAGE&BACK MONITOR-WITH(WIDE ANGLE BACK MONITOR),DARK SHERRY M.M.,4W4
main87910-08130-G0i201711-202009
HIGH GRADE PACKAGE&BACK MONITOR-WITH(WIDE ANGLE BACK MONITOR),ALUMINA JADE ME.,6W4
main87910-08130-J0i201711-202009
HIGH GRADE PACKAGE&BACK MONITOR-WITH(WIDE ANGLE BACK MONITOR),DK.BLUE M.M.,8W6
main87910-08150-C0i201409-201512
CANADA SPEC,BLACK,040 ,1D6 ,1H1 ,218 ,3Q3 ,5B2 ,8S4 ,8V5
main87910-08160-A0i201711-202009
HIGH GRADE PACKAGE&HEADLAMP-DISCHARGE (PES) & WITH(*AHB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),WHITE PEARL CS.,070
main87910-08160-B0i201711-201808
HIGH GRADE PACKAGE&HEADLAMP-DISCHARGE (PES) & WITH(*AHB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),SILVER ME.,1D6
main87910-08160-B1i201711-202009
HIGH GRADE PACKAGE&HEADLAMP-DISCHARGE (PES) & WITH(*AHB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),GRAY M.M.,1H1
main87910-08160-B2i201808-202009
HIGH GRADE PACKAGE&HEADLAMP-DISCHARGE (PES) & WITH(*AHB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),SILVER ME.,1J9
main87910-08160-C0i201711-202009
HIGH GRADE PACKAGE&HEADLAMP-DISCHARGE (PES) & WITH(*AHB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),ATTITUDE BLACK MC.,218
main87910-08160-D0i201711-202009
HIGH GRADE PACKAGE&HEADLAMP-DISCHARGE (PES) & WITH(*AHB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),DK. RED M.M.,3Q3
main87910-08160-E0i201711-202009
HIGH GRADE PACKAGE&HEADLAMP-DISCHARGE (PES) & WITH(*AHB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),DARK SHERRY M.M.,4W4
main87910-08160-G0i201711-202009
HIGH GRADE PACKAGE&HEADLAMP-DISCHARGE (PES) & WITH(*AHB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),ALUMINA JADE ME.,6W4
main87910-08160-J0i201711-202009
HIGH GRADE PACKAGE&HEADLAMP-DISCHARGE (PES) & WITH(*AHB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),DK.BLUE M.M.,8W6
main87910-08170-A0i201711-202009
LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),SUPER WHITE 2,040
87910AMIRROR ASSY, OUTER REAR VIEW, W/O COVER, RH
main87910-08907i201702-201711
CANADA SPEC
main87910-08905i201702-201711
LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)
main87910-08906i201702-201711
WITH(DRIVER SEAT: MEMORY POWER SEAT)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)
87915COVER, OUTER MIRROR, RH
main87915-08010i201608-201711
NO PAINT REQ.
main87915-08020-A0i201001-201112
CANADA SPEC,SUPER WHITE 2,040; SUPER WHITE 2,040
main87915-08020-B0i201001-201112
CANADA SPEC,SILVER ME.,1D6; SILVER ME.,1D6
main87915-08020-B1i201001-201112
CANADA SPEC,GRAY M.M.,1H1; GRAY M.M.,1H1
main87915-08020-C0i201001-201112
BLACK,202; CANADA SPEC,BLACK,202
main87915-08020-D0i201001-201112
CANADA SPEC,DK. RED M.M.,3Q3; DK. RED M.M.,3Q3
main87915-08020-E0i201001-201112
BEIGE ME.,4T8; CANADA SPEC,BEIGE ME.,4T8
main87915-08020-G0i201001-201112
CANADA SPEC,OLIVE M.M.,6T7; OLIVE M.M.,6T7
main87915-08020-H0i201001-201112
CANADA SPEC,DK. TEAL M.M.,785; DK. TEAL M.M.,785
main87915-08021-A0i201409-201608
CANADA SPEC,SUPER WHITE 2,040; SUPER WHITE 2,040
main87915-08021-A1i201409-201608
WHITE PEARL CS.,070
main87915-08021-B0i201608-201711
CANADA SPEC,SILVER ME.,1D6; SILVER ME.,1D6
main87915-08021-B1i201608-201711
CANADA SPEC,GRAY M.M.,1H1; GRAY M.M.,1H1
main87915-08021-B2i201808-202009
CANADA SPEC,SILVER ME.,1J9; SILVER ME.,1J9
main87915-08021-C0i201201-201409
BLACK,202; CANADA SPEC,BLACK,202
main87915-08021-C2i201711-202009
ATTITUDE BLACK MC.,040 ,1J9 ,218 ,3Q3; ATTITUDE BLACK MC.,218; CANADA SPEC,ATTITUDE BLACK MC.,218
main87915-08021-D0i201409-201608
CANADA SPEC,DK. RED M.M.,3Q3; DK. RED M.M.,3Q3
main87915-08021-E0i201201-201409
BEIGE ME.,4T8; CANADA SPEC,BEIGE ME.,4T8
main87915-08021-E1i201711-202009
CANADA SPEC,DARK SHERRY M.M.,4W4; DARK SHERRY M.M.,4W4
main87915-08021-F0i201409-201608
CANADA SPEC,LT.YELLOW M.M.,5B2; LT.YELLOW M.M.,5B2
main87915-08021-G0i201201-201409
CANADA SPEC,OLIVE M.M.,6T7; OLIVE M.M.,6T7
main87915-08021-G1i201711-202009
ALUMINA JADE ME.,6W4; CANADA SPEC,ALUMINA JADE ME.,6W4
main87915-08021-H0i201201-201208
CANADA SPEC,DK. TEAL M.M.,785; DK. TEAL M.M.,785
main87915-08021-J0i201608-201711
CANADA SPEC,GRAYISH BLUE M.M.,8V5; GRAYISH BLUE M.M.,8V5
main87915-08021-J1i201608-201711
CANADA SPEC,LT.BLUE ME.,8S4; LT.BLUE ME.,8S4
main87915-08021-J2i201711-202009
CANADA SPEC,DK.BLUE M.M.,8W6; DK.BLUE M.M.,8W6
main87915-08020-A1i201001-201203
HIGH GRADE PACKAGE,WHITE PEARL CS.,070
main87915-08021-C1i201409-201512
CANADA SPEC,BLACK,040 ,1D6 ,1H1 ,218 ,3Q3 ,5B2 ,8S4 ,8V5
main87915-08030-A1i201208-201409
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),WHITE PEARL CS.,070
main87915-08030-B0i201711-201808
HIGH GRADE PACKAGE&BACK MONITOR-WITH(WIDE ANGLE BACK MONITOR),SILVER ME.,1D6; HIGH GRADE PACKAGE&HEADLAMP-DISCHARGE (PES) & WITH(*AHB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),SILVER ME.,1D6
main87915-08030-B1i201208-201409
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),GRAY M.M.,1H1
main87915-08030-B2i201808-202009
HIGH GRADE PACKAGE&BACK MONITOR-WITH(WIDE ANGLE BACK MONITOR),SILVER ME.,1J9; HIGH GRADE PACKAGE&HEADLAMP-DISCHARGE (PES) & WITH(*AHB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),SILVER ME.,1J9
main87915-08030-C0i201208-201409
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),BLACK,202
main87915-08030-C1i201608-201711
WITH(DRIVER SEAT: MEMORY POWER SEAT)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),ATTITUDE BLACK MC.,218
main87915-08030-D0i201711-202009
HIGH GRADE PACKAGE&BACK MONITOR-WITH(WIDE ANGLE BACK MONITOR),DK. RED M.M.,3Q3; HIGH GRADE PACKAGE&HEADLAMP-DISCHARGE (PES) & WITH(*AHB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),DK. RED M.M.,3Q3
main87915-08030-E0i201208-201409
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),BEIGE ME.,4T8
main87915-08030-E1i201711-202009
HIGH GRADE PACKAGE&BACK MONITOR-WITH(WIDE ANGLE BACK MONITOR),DARK SHERRY M.M.,4W4; HIGH GRADE PACKAGE&HEADLAMP-DISCHARGE (PES) & WITH(*AHB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),DARK SHERRY M.M.,4W4
main87915-08030-F0i201409-201608
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),LT.YELLOW M.M.,5B2
main87915-08030-G0i201208-201409
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),OLIVE M.M.,6T7
main87915-08030-G1i201711-202009
HIGH GRADE PACKAGE&BACK MONITOR-WITH(WIDE ANGLE BACK MONITOR),ALUMINA JADE ME.,6W4; HIGH GRADE PACKAGE&HEADLAMP-DISCHARGE (PES) & WITH(*AHB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),ALUMINA JADE ME.,6W4
main87915-08030-J0i201409-201608
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),GRAYISH BLUE M.M.,8V5
main87915-08030-J1i201409-201608
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),LT.BLUE ME.,8S4
main87915-08030-J2i201711-202009
HIGH GRADE PACKAGE&BACK MONITOR-WITH(WIDE ANGLE BACK MONITOR),DK.BLUE M.M.,8W6; HIGH GRADE PACKAGE&HEADLAMP-DISCHARGE (PES) & WITH(*AHB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),DK.BLUE M.M.,8W6
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-08080i201001-201309
main87940-08081i201310-201409
NO PAINT REQ.
main87940-08090-A0i201001-201108
CANADA SPEC,SUPER WHITE 2,040; SUPER WHITE 2,040
main87940-08090-B1i201001-201108
CANADA SPEC,GRAY M.M.,1H1; GRAY M.M.,1H1
main87940-08090-B2i201001-201108
CANADA SPEC,SILVER ME.,1D6; SILVER ME.,1D6
main87940-08090-C0i201001-201108
BLACK,202; CANADA SPEC,BLACK,202
main87940-08090-D0i201001-201108
CANADA SPEC,DK. RED M.M.,3Q3; DK. RED M.M.,3Q3
main87940-08090-E0i201001-201108
BEIGE ME.,4T8; CANADA SPEC,BEIGE ME.,4T8
main87940-08090-G0i201001-201108
CANADA SPEC,OLIVE M.M.,6T7; OLIVE M.M.,6T7
main87940-08090-H0i201001-201108
CANADA SPEC,DK. TEAL M.M.,785; DK. TEAL M.M.,785
main87940-08091-A0i201109-201112
CANADA SPEC,SUPER WHITE 2,040; SUPER WHITE 2,040
main87940-08091-B1i201109-201112
CANADA SPEC,GRAY M.M.,1H1; GRAY M.M.,1H1
main87940-08091-B2i201109-201112
CANADA SPEC,SILVER ME.,1D6; SILVER ME.,1D6
main87940-08091-C0i201109-201112
BLACK,202; CANADA SPEC,BLACK,202
main87940-08091-D0i201109-201112
CANADA SPEC,DK. RED M.M.,3Q3; DK. RED M.M.,3Q3
main87940-08091-E0i201109-201112
BEIGE ME.,4T8; CANADA SPEC,BEIGE ME.,4T8
main87940-08091-G0i201109-201112
CANADA SPEC,OLIVE M.M.,6T7; OLIVE M.M.,6T7
main87940-08091-H0i201109-201112
CANADA SPEC,DK. TEAL M.M.,785; DK. TEAL M.M.,785
main87940-08092-A0i201201-201208
CANADA SPEC,SUPER WHITE 2,040; SUPER WHITE 2,040
main87940-08092-B1i201201-201208
CANADA SPEC,GRAY M.M.,1H1; GRAY M.M.,1H1
main87940-08092-B2i201201-201208
CANADA SPEC,SILVER ME.,1D6; SILVER ME.,1D6
main87940-08092-C0i201201-201208
BLACK,202; CANADA SPEC,BLACK,202
main87940-08092-D0i201201-201208
CANADA SPEC,DK. RED M.M.,3Q3; DK. RED M.M.,3Q3
main87940-08092-E0i201201-201208
BEIGE ME.,4T8; CANADA SPEC,BEIGE ME.,4T8
main87940-08092-G0i201201-201208
CANADA SPEC,OLIVE M.M.,6T7; OLIVE M.M.,6T7
main87940-08092-H0i201201-201208
CANADA SPEC,DK. TEAL M.M.,785; DK. TEAL M.M.,785
main87940-08093-A0i201208-201309
CANADA SPEC,SUPER WHITE 2,040; SUPER WHITE 2,040
main87940-08093-B1i201208-201309
CANADA SPEC,GRAY M.M.,1H1; GRAY M.M.,1H1
main87940-08093-B2i201208-201309
CANADA SPEC,SILVER ME.,1D6; SILVER ME.,1D6
main87940-08093-C0i201208-201309
BLACK,202; CANADA SPEC,BLACK,202
main87940-08093-D0i201208-201309
CANADA SPEC,DK. RED M.M.,3Q3; DK. RED M.M.,3Q3
main87940-08093-E0i201208-201309
BEIGE ME.,4T8; CANADA SPEC,BEIGE ME.,4T8
main87940-08093-G0i201208-201309
CANADA SPEC,OLIVE M.M.,6T7; OLIVE M.M.,6T7
main87940-08093-J0i201208-201309
CANADA SPEC,GRAYISH BLUE M.M.,8V5; GRAYISH BLUE M.M.,8V5
main87940-08094-A0i201310-201409
CANADA SPEC,SUPER WHITE 2,040; SUPER WHITE 2,040
main87940-08094-B1i201310-201409
CANADA SPEC,GRAY M.M.,1H1; GRAY M.M.,1H1
main87940-08094-B2i201310-201409
CANADA SPEC,SILVER ME.,1D6; SILVER ME.,1D6
main87940-08094-C0i201310-201409
BLACK,202; CANADA SPEC,BLACK,202
main87940-08094-D0i201310-201409
CANADA SPEC,DK. RED M.M.,3Q3; DK. RED M.M.,3Q3
main87940-08094-E0i201310-201409
BEIGE ME.,4T8; CANADA SPEC,BEIGE ME.,4T8
main87940-08094-G0i201310-201409
CANADA SPEC,OLIVE M.M.,6T7; OLIVE M.M.,6T7
main87940-08094-J0i201310-201409
CANADA SPEC,GRAYISH BLUE M.M.,8V5; GRAYISH BLUE M.M.,8V5
main87940-08140i201608-201711
NO PAINT REQ.
main87940-08150-A0i201608-201711
CANADA SPEC,SUPER WHITE 2,040; SUPER WHITE 2,040
main87940-08150-B0i201608-201711
CANADA SPEC,SILVER ME.,1D6; SILVER ME.,1D6
main87940-08150-B1i201608-201711
CANADA SPEC,GRAY M.M.,1H1; GRAY M.M.,1H1
main87940-08150-C1i201409-201608
ATTITUDE BLACK MC.,218; CANADA SPEC,ATTITUDE BLACK MC.,218
main87940-08150-D0i201409-201608
CANADA SPEC,DK. RED M.M.,3Q3; DK. RED M.M.,3Q3
main87940-08150-F0i201409-201608
CANADA SPEC,LT.YELLOW M.M.,5B2; LT.YELLOW M.M.,5B2
main87940-08150-J0i201608-201711
CANADA SPEC,LT.BLUE ME.,8S4; LT.BLUE ME.,8S4
main87940-08150-J1i201608-201711
CANADA SPEC,GRAYISH BLUE M.M.,8V5; GRAYISH BLUE M.M.,8V5
main87940-08170-B0i201711-201808
LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),SILVER ME.,1D6; SILVER ME.,1D6
main87940-08170-B1i201711-202009
GRAY M.M.,1H1; LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),GRAY M.M.,1H1
main87940-08170-B2i201808-202009
LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),SILVER ME.,1J9; SILVER ME.,1J9
main87940-08170-C0i201711-202009
ATTITUDE BLACK MC.,218; LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),ATTITUDE BLACK MC.,040 ,1J9 ,218 ,3Q3
main87940-08170-D0i201711-202009
DK. RED M.M.,3Q3; LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),DK. RED M.M.,3Q3
main87940-08170-E0i201711-202009
DARK SHERRY M.M.,4W4
main87940-08170-G0i201711-202009
ALUMINA JADE ME.,6W4
main87940-08170-J0i201711-202009
DK.BLUE M.M.,8W6; LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),DK.BLUE M.M.,8W6
main87940-08100-A0i201001-201108
HIGH GRADE PACKAGE,WHITE PEARL CS.,070
main87940-08100-B1i201001-201108
HIGH GRADE PACKAGE,GRAY M.M.,1H1
main87940-08100-B2i201001-201108
HIGH GRADE PACKAGE,SILVER ME.,1D6
main87940-08100-C0i201001-201108
HIGH GRADE PACKAGE,BLACK,202
main87940-08100-D0i201001-201108
HIGH GRADE PACKAGE,DK. RED M.M.,3Q3
main87940-08100-E0i201001-201108
HIGH GRADE PACKAGE,BEIGE ME.,4T8
main87940-08100-G0i201001-201108
HIGH GRADE PACKAGE,OLIVE M.M.,6T7
main87940-08100-H0i201001-201108
HIGH GRADE PACKAGE,DK. TEAL M.M.,785
main87940-08101-A0i201109-201203
HIGH GRADE PACKAGE,WHITE PEARL CS.,070
main87940-08101-B1i201109-201203
HIGH GRADE PACKAGE,GRAY M.M.,1H1
main87940-08101-B2i201109-201203
HIGH GRADE PACKAGE,SILVER ME.,1D6
main87940-08101-C0i201109-201203
HIGH GRADE PACKAGE,BLACK,202
main87940-08101-D0i201109-201203
HIGH GRADE PACKAGE,DK. RED M.M.,3Q3
main87940-08101-E0i201109-201203
HIGH GRADE PACKAGE,BEIGE ME.,4T8
main87940-08101-G0i201109-201203
HIGH GRADE PACKAGE,OLIVE M.M.,6T7
main87940-08101-H0i201109-201203
HIGH GRADE PACKAGE,DK. TEAL M.M.,785
main87940-08102-A0i201203-201207
HIGH GRADE PACKAGE,WHITE PEARL CS.,070
main87940-08102-B1i201203-201207
HIGH GRADE PACKAGE,GRAY M.M.,1H1
main87940-08102-B2i201203-201207
HIGH GRADE PACKAGE,SILVER ME.,1D6
main87940-08102-C0i201203-201207
HIGH GRADE PACKAGE,BLACK,202
main87940-08102-D0i201203-201207
HIGH GRADE PACKAGE,DK. RED M.M.,3Q3
main87940-08102-E0i201203-201207
HIGH GRADE PACKAGE,BEIGE ME.,4T8
main87940-08102-G0i201203-201207
HIGH GRADE PACKAGE,OLIVE M.M.,6T7
main87940-08102-H0i201203-201207
HIGH GRADE PACKAGE,DK. TEAL M.M.,785
main87940-08102-J0i201203-201207
HIGH GRADE PACKAGE,GRAYISH BLUE M.M.,8V5
main87940-08112-A0i201208-201309
LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),SUPER WHITE 2,040
main87940-08112-B0i201208-201309
LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),SILVER ME.,1D6
main87940-08112-B1i201208-201309
LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),GRAY M.M.,1H1
main87940-08112-C0i201208-201309
LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),BLACK,202
main87940-08112-D0i201208-201309
LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),DK. RED M.M.,3Q3
main87940-08112-E0i201208-201309
LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),BEIGE ME.,4T8
main87940-08112-G0i201208-201309
LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),OLIVE M.M.,6T7
main87940-08112-J0i201208-201309
LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),GRAYISH BLUE M.M.,8V5
main87940-08113-A0i201409-201608
LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),SUPER WHITE 2,040
main87940-08113-A1supersedes 87940-08170-A1i201608-201711
LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),WHITE PEARL CS.,070
main87940-08113-B0i201608-201711
LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),SILVER ME.,1D6
main87940-08113-B1i201409-201608
LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),GRAY M.M.,1H1
main87940-08113-C0i201310-201409
LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),BLACK,202
main87940-08113-C1i201409-201608
LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),ATTITUDE BLACK MC.,218
main87940-08113-D0i201409-201608
LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),DK. RED M.M.,3Q3
main87940-08113-E0i201310-201409
LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),BEIGE ME.,4T8
main87940-08113-F0i201608-201711
LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),LT.YELLOW M.M.,5B2
main87940-08113-G0i201310-201409
LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),OLIVE M.M.,6T7
main87940-08113-J0i201608-201711
LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),GRAYISH BLUE M.M.,8V5
main87940-08113-J1i201608-201711
LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),LT.BLUE ME.,8S4
main87940-08121-A1i201208-201309
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),WHITE PEARL CS.,070
main87940-08121-B0i201208-201309
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),SILVER ME.,1D6
main87940-08121-B1i201208-201309
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),GRAY M.M.,1H1
main87940-08121-C0i201208-201309
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),BLACK,202
main87940-08121-D0i201208-201309
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),DK. RED M.M.,3Q3
main87940-08121-E0i201208-201309
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),BEIGE ME.,4T8
main87940-08121-G0i201208-201309
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),OLIVE M.M.,6T7
main87940-08121-J0i201208-201309
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),GRAYISH BLUE M.M.,8V5
main87940-08122-A1i201608-201711
WITH(DRIVER SEAT: MEMORY POWER SEAT)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),WHITE PEARL CS.,070
main87940-08122-B0i201409-201608
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),SILVERME.,1D6
main87940-08122-B1i201608-201711
WITH(DRIVER SEAT: MEMORY POWER SEAT)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),GRAY M.M.,1H1
main87940-08122-C0i201310-201409
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),BLACK,202
main87940-08122-C1i201409-201608
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),ATTITUDE BLACK MC.,218
main87940-08122-D0i201608-201711
WITH(DRIVER SEAT: MEMORY POWER SEAT)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),DK. RED M.M.,3Q3
main87940-08122-E0i201310-201409
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),BEIGE ME.,4T8
main87940-08122-F0i201409-201608
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),LT.YELLOW M.M.,5B2
main87940-08122-G0i201310-201409
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),OLIVE M.M.,6T7
main87940-08122-J0i201409-201608
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),GRAYISH BLUE M.M.,8V5
main87940-08122-J1i201409-201608
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),LT.BLUE ME.,8S4
main87940-08130-A0i201711-202009
HIGH GRADE PACKAGE&BACK MONITOR-WITH(WIDE ANGLE BACK MONITOR),WHITE PEARL CS.,070
main87940-08130-B0i201711-201808
HIGH GRADE PACKAGE&BACK MONITOR-WITH(WIDE ANGLE BACK MONITOR),SILVER ME.,1D6
main87940-08130-B1i201711-202009
HIGH GRADE PACKAGE&BACK MONITOR-WITH(WIDE ANGLE BACK MONITOR),GRAY M.M.,1H1
main87940-08130-B2i201808-202009
HIGH GRADE PACKAGE&BACK MONITOR-WITH(WIDE ANGLE BACK MONITOR),SILVER ME.,1J9
main87940-08130-C0i201711-202009
HIGH GRADE PACKAGE&BACK MONITOR-WITH(WIDE ANGLE BACK MONITOR),ATTITUDE BLACK MC.,218
main87940-08130-D0i201711-202009
HIGH GRADE PACKAGE&BACK MONITOR-WITH(WIDE ANGLE BACK MONITOR),DK. RED M.M.,3Q3
main87940-08130-E0i201711-202009
HIGH GRADE PACKAGE&BACK MONITOR-WITH(WIDE ANGLE BACK MONITOR),DARK SHERRY M.M.,4W4
main87940-08130-G0i201711-202009
HIGH GRADE PACKAGE&BACK MONITOR-WITH(WIDE ANGLE BACK MONITOR),ALUMINA JADE ME.,6W4
main87940-08130-J0i201711-202009
HIGH GRADE PACKAGE&BACK MONITOR-WITH(WIDE ANGLE BACK MONITOR),DK.BLUE M.M.,8W6
main87940-08150-C0i201409-201512
CANADA SPEC,BLACK,040 ,1D6 ,1H1 ,218 ,3Q3 ,5B2 ,8S4 ,8V5
main87940-08160-A0i201711-202009
HIGH GRADE PACKAGE&HEADLAMP-DISCHARGE (PES) & WITH(*AHB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),WHITE PEARL CS.,070
main87940-08160-B0i201711-201808
HIGH GRADE PACKAGE&HEADLAMP-DISCHARGE (PES) & WITH(*AHB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),SILVER ME.,1D6
main87940-08160-B1i201711-202009
HIGH GRADE PACKAGE&HEADLAMP-DISCHARGE (PES) & WITH(*AHB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),GRAY M.M.,1H1
main87940-08160-B2i201808-202009
HIGH GRADE PACKAGE&HEADLAMP-DISCHARGE (PES) & WITH(*AHB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),SILVER ME.,1J9
main87940-08160-C0i201711-202009
HIGH GRADE PACKAGE&HEADLAMP-DISCHARGE (PES) & WITH(*AHB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),ATTITUDE BLACK MC.,218
main87940-08160-D0i201711-202009
HIGH GRADE PACKAGE&HEADLAMP-DISCHARGE (PES) & WITH(*AHB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),DK. RED M.M.,3Q3
main87940-08160-E0i201711-202009
HIGH GRADE PACKAGE&HEADLAMP-DISCHARGE (PES) & WITH(*AHB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),DARK SHERRY M.M.,4W4
main87940-08160-G0i201711-202009
HIGH GRADE PACKAGE&HEADLAMP-DISCHARGE (PES) & WITH(*AHB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),ALUMINA JADE ME.,6W4
main87940-08160-J0i201711-202009
HIGH GRADE PACKAGE&HEADLAMP-DISCHARGE (PES) & WITH(*AHB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),DK.BLUE M.M.,8W6
main87940-08170-A0i201711-202009
LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),SUPER WHITE 2,040
87940AMIRROR ASSY, OUTER REAR VIEW, W/O COVER, LH
main87940-08907i201711-202009
CANADA SPEC; DE-CONTENT PACKAGE&HEADLAMP-HALOGEN&LANE CHANGE ASSIST-WITHOUT; DE-CONTENT PACKAGE&LANE CHANGE ASSIST-WITHOUT; HEADLAMP-HALOGEN&LANE CHANGE ASSIST-WITHOUT
main87940-08905i201702-201711
LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)
main87940-08906i201702-201711
WITH(DRIVER SEAT: MEMORY POWER SEAT)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)
87945COVER, OUTER MIRROR, LH
main87945-08010i201001-201409
main87945-08020-A0i201001-201112
CANADA SPEC,SUPER WHITE 2,040; SUPER WHITE 2,040
main87945-08020-B0i201001-201112
CANADA SPEC,SILVER ME.,1D6; SILVER ME.,1D6
main87945-08020-B1i201001-201112
CANADA SPEC,GRAY M.M.,1H1; GRAY M.M.,1H1
main87945-08020-C0i201001-201112
BLACK,202; CANADA SPEC,BLACK,202
main87945-08020-D0i201001-201112
CANADA SPEC,DK. RED M.M.,3Q3; DK. RED M.M.,3Q3
main87945-08020-E0i201001-201112
BEIGE ME.,4T8; CANADA SPEC,BEIGE ME.,4T8
main87945-08020-G0i201001-201112
CANADA SPEC,OLIVE M.M.,6T7; OLIVE M.M.,6T7
main87945-08020-H0i201001-201112
CANADA SPEC,DK. TEAL M.M.,785; DK. TEAL M.M.,785
main87945-08021-A0i201409-201608
CANADA SPEC,SUPER WHITE 2,040; SUPER WHITE 2,040
main87945-08021-A1i201711-202009
WHITE PEARL CS.,070
main87945-08021-B0i201201-201409
CANADA SPEC,SILVER ME.,1D6; SILVER ME.,1D6
main87945-08021-B1i201711-202009
CANADA SPEC,GRAY M.M.,1H1; GRAY M.M.,1H1
main87945-08021-B2i201808-202009
CANADA SPEC,SILVER ME.,1J9; SILVER ME.,1J9
main87945-08021-C0i201201-201409
BLACK,202; CANADA SPEC,BLACK,202
main87945-08021-C2i201409-201608
ATTITUDE BLACK MC.,218; CANADA SPEC,ATTITUDE BLACK MC.,218
main87945-08021-D0i201711-202009
CANADA SPEC,DK. RED M.M.,3Q3; DK. RED M.M.,3Q3
main87945-08021-E0i201201-201409
BEIGE ME.,4T8; CANADA SPEC,BEIGE ME.,4T8
main87945-08021-E1i201711-202009
CANADA SPEC,DARK SHERRY M.M.,4W4; DARK SHERRY M.M.,4W4
main87945-08021-F0i201608-201711
CANADA SPEC,LT.YELLOW M.M.,5B2; LT.YELLOW M.M.,5B2
main87945-08021-G0i201201-201409
CANADA SPEC,OLIVE M.M.,6T7; OLIVE M.M.,6T7
main87945-08021-G1i201711-202009
ALUMINA JADE ME.,6W4; CANADA SPEC,ALUMINA JADE ME.,6W4
main87945-08021-H0i201201-201208
CANADA SPEC,DK. TEAL M.M.,785; DK. TEAL M.M.,785
main87945-08021-J0i201208-201409
CANADA SPEC,GRAYISH BLUE M.M.,8V5; GRAYISH BLUE M.M.,8V5
main87945-08021-J1i201409-201608
CANADA SPEC,LT.BLUE ME.,8S4; LT.BLUE ME.,8S4
main87945-08021-J2i201711-202009
CANADA SPEC,DK.BLUE M.M.,8W6; DK.BLUE M.M.,8W6
main87945-08020-A1i201001-201203
HIGH GRADE PACKAGE,WHITE PEARL CS.,070
main87945-08021-C1i201409-201512
CANADA SPEC,BLACK,040 ,1D6 ,1H1 ,218 ,3Q3 ,5B2 ,8S4 ,8V5
main87945-08030-A1i201711-202009
HIGH GRADE PACKAGE&BACK MONITOR-WITH(WIDE ANGLE BACK MONITOR),WHITE PEARL CS.,070; HIGH GRADE PACKAGE&HEADLAMP-DISCHARGE (PES) & WITH(*AHB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),WHITE PEARL CS.,070
main87945-08030-B0i201711-201808
HIGH GRADE PACKAGE&BACK MONITOR-WITH(WIDE ANGLE BACK MONITOR),SILVER ME.,1D6; HIGH GRADE PACKAGE&HEADLAMP-DISCHARGE (PES) & WITH(*AHB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),SILVER ME.,1D6
main87945-08030-B1i201711-202009
HIGH GRADE PACKAGE&BACK MONITOR-WITH(WIDE ANGLE BACK MONITOR),GRAY M.M.,1H1; HIGH GRADE PACKAGE&HEADLAMP-DISCHARGE (PES) & WITH(*AHB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),GRAY M.M.,1H1
main87945-08030-B2i201808-202009
HIGH GRADE PACKAGE&BACK MONITOR-WITH(WIDE ANGLE BACK MONITOR),SILVER ME.,1J9; HIGH GRADE PACKAGE&HEADLAMP-DISCHARGE (PES) & WITH(*AHB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),SILVER ME.,1J9
main87945-08030-C0i201208-201409
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),BLACK,202
main87945-08030-C1i201711-202009
HIGH GRADE PACKAGE&BACK MONITOR-WITH(WIDE ANGLE BACK MONITOR),ATTITUDE BLACK MC.,218; HIGH GRADE PACKAGE&HEADLAMP-DISCHARGE (PES) & WITH(*AHB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),ATTITUDE BLACK MC.,218
main87945-08030-D0i201711-202009
HIGH GRADE PACKAGE&BACK MONITOR-WITH(WIDE ANGLE BACK MONITOR),DK. RED M.M.,3Q3; HIGH GRADE PACKAGE&HEADLAMP-DISCHARGE (PES) & WITH(*AHB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),DK. RED M.M.,3Q3
main87945-08030-E0i201208-201409
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),BEIGE ME.,4T8
main87945-08030-E1i201711-202009
HIGH GRADE PACKAGE&BACK MONITOR-WITH(WIDE ANGLE BACK MONITOR),DARK SHERRY M.M.,4W4; HIGH GRADE PACKAGE&HEADLAMP-DISCHARGE (PES) & WITH(*AHB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),DARK SHERRY M.M.,4W4
main87945-08030-F0i201608-201711
WITH(DRIVER SEAT: MEMORY POWER SEAT)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),LT.YELLOW M.M.,5B2
main87945-08030-G0i201208-201409
HIGH GRADE PACKAGE&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),OLIVE M.M.,6T7
main87945-08030-G1i201711-202009
HIGH GRADE PACKAGE&BACK MONITOR-WITH(WIDE ANGLE BACK MONITOR),ALUMINA JADE ME.,6W4; HIGH GRADE PACKAGE&HEADLAMP-DISCHARGE (PES) & WITH(*AHB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),ALUMINA JADE ME.,6W4
main87945-08030-J0i201608-201711
WITH(DRIVER SEAT: MEMORY POWER SEAT)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),GRAYISH BLUE M.M.,8V5
main87945-08030-J1i201608-201711
WITH(DRIVER SEAT: MEMORY POWER SEAT)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),LT.BLUE ME.,8S4
main87945-08030-J2i201711-202009
HIGH GRADE PACKAGE&BACK MONITOR-WITH(WIDE ANGLE BACK MONITOR),DK.BLUE M.M.,8W6; HIGH GRADE PACKAGE&HEADLAMP-DISCHARGE (PES) & WITH(*AHB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),DK.BLUE M.M.,8W6
90178A0023
main90178-A0023

15 parts on this diagram · 2 diagrams in section

MIRROR for Toyota SIENNA

This section contains 15 genuine Toyota parts for the MIRROR system of the Toyota SIENNA. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, LAMP ASSY, OUTER MIRROR, RH, LAMP ASSY, OUTER MIRROR, LH, MIRROR ASSY, INNER REAR VIEW, MIRROR, INNER REAR VIEW MIRROR(BOX ASSY, ROOF CONSOLE).
