Toyota SIENNA — METER

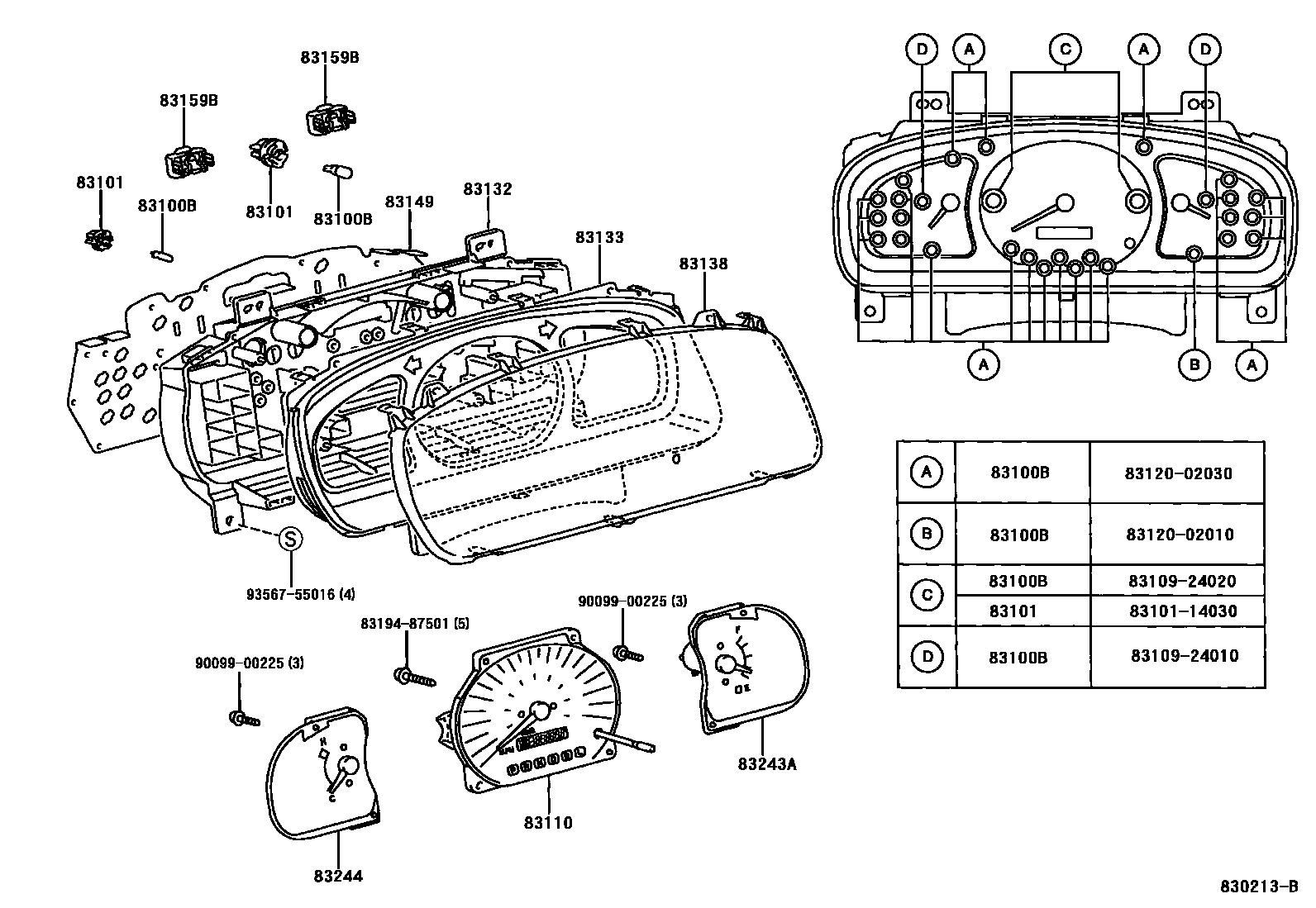

Parts diagram
83100BBULB, COMBINATION METER, NO.1
main83109-24010×2i199708-200008
12V 1.4W,GREEN CAP,TYPE D:REFER TO ILLUSTRATION
main83109-24020×2i199708-200008
12V3.4W W(GREEN CAP),TYPE C:REFER TO ILLUSTRATION
main83120-02010i199708-200008
14V 3.0W,TYPE B:REFER TO ILLUSTRATION
main83120-02030i200008-200107
14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION
main90981-11018i200207
12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION
83101SOCKET SUB-ASSY, COMBINATION METER BULB
main83101-14030×4i199708-200008
main83101-14040i200207
TYPE A:REFER TO ILLUSTRATION
83110SPEEDOMETER ASSY
main83220-08010i199708-200008
main83220-08020i199708-200008
main83220-08030i199708-200008
main83220-08040i199708-200008
main83220-08050i200207
W(TACHOMETER)
main83220-08060i200008-200207
main83220-08070i200008
main83220-08080i200008
83132CASE, COMBINATION METER
main83841-08010i199708-200207
main83841-08030i199708
83133PLATE, COMBINATION METER, NO.1
main83811-08010i199708-200207
main83811-08030i199708
83138GLASS, SPEEDOMETER
main83852-08010i199708-200207
main83852-08030i199708
83149PLATE, METER CIRCUIT
main83861-08010i199708-200008
main83861-08030i199708-200008
main83861-08050i200008-200107
main83861-08070i200008-200107
main83861-08090i200207
W(TACHOMETER)
main83861-08110i200107-200301
83159BRELAY ASSY, METER
main83159-22170×2i199708
83243AGAUGE SUB-ASSY, FUEL RECEIVER
main83882-08010i199708-200008
main83882-08020i199708-200008
main83882-08030i199708-200008
main83882-08040i199708-200008
main83882-08050i200008-200207
main83882-08060i200207
W(TACHOMETER)
main83882-08070i200008
main83882-08080i200008
83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
main83883-08010i199708-200008
main83883-08020i199708-200008
main83883-08030i199708-200008
main83883-08040i199708-200008
main83883-08050i200008-200207
main83883-08060i200207
W(TACHOMETER)
main83883-08070i200008
main83883-08080i200008
8319487501
main83194-87501
9009900225
main90099-00225
9356755016
main93567-55016

13 parts on this diagram · 3 diagrams in section

METER for Toyota SIENNA

This section contains 15 genuine Toyota parts for the METER system of the Toyota SIENNA. Key components include: BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, SPEEDOMETER ASSY, CASE, COMBINATION METER, PLATE, COMBINATION METER, NO.1.
