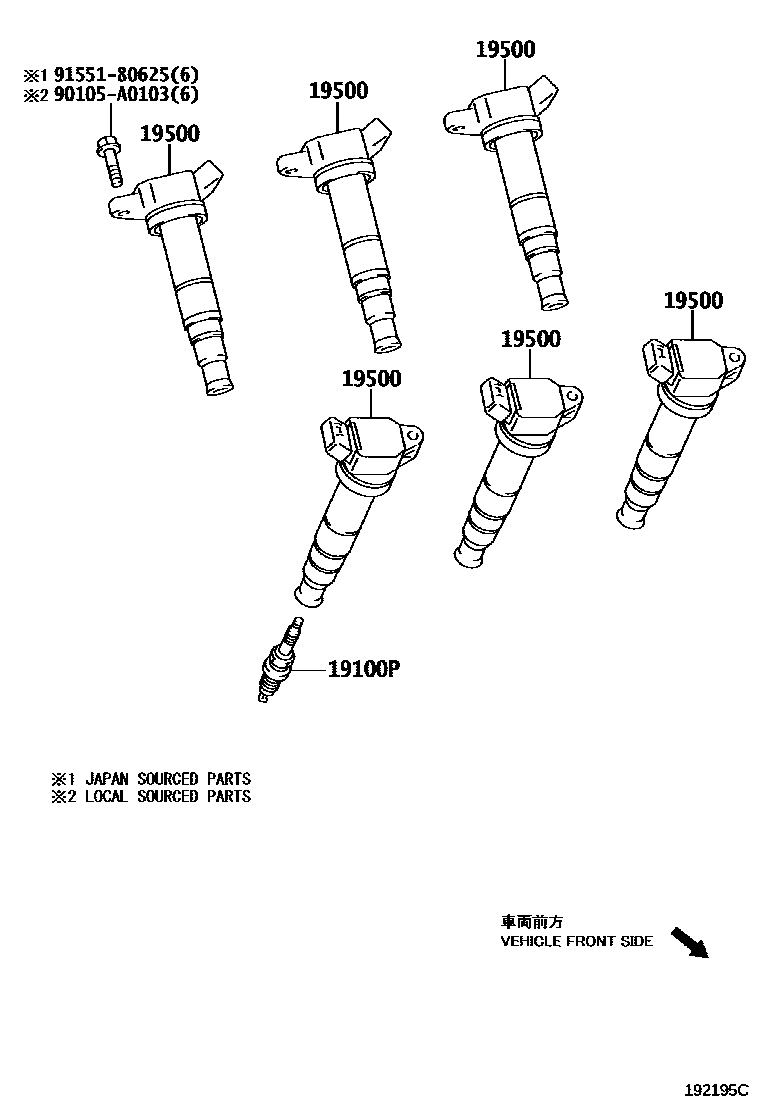

Toyota SIENNA — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90080-91180×6i200301-200509

SK20R11,(L)

main90919-01210×6i200301-200509

SK20R11,(J)

main90919-01247×6i200612

FK20HR11

19500COIL ASSY, IGNITION

main90080-19025×6i200301-200509

main90919-02251×6i200612-200901

(J)

main90919-A2002×6i200612-200901

(L)

main90919-A2004×6i200901

90105A0103

main90105-A0103

9155180625

main91551-80625

4 parts on this diagram · 2 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota SIENNA

This section contains 5 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota SIENNA. Key components include: PLUG, SPARK, COIL ASSY, IGNITION.
