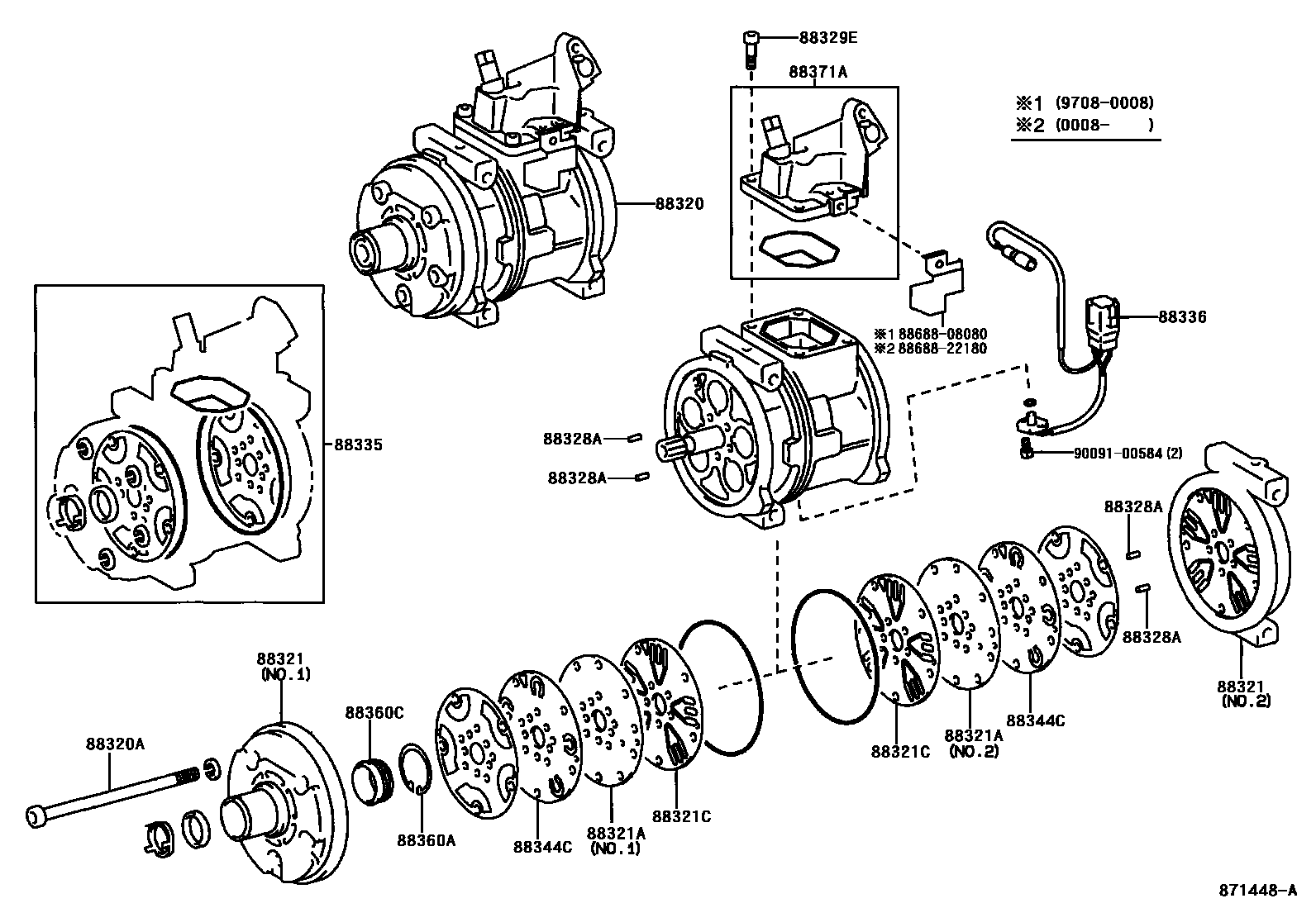

Toyota SIENNA — HEATING & AIR CONDITIONING - COMPRESSOR
88320ABOLT, THROUGH
88321HEAD, COOLER COMPRESSOR CYLINDER
NO.1
NO.1
NO.2
NO.2
88321APLATE SUB-ASSY, VALVE
NO.1
NO.1
NO.2
NO.2
88335GASKET KIT, OVERHAUL
88336SENSOR, COMPRESSOR
88360CSEAL ASSY, SHAFT
88371AVALVE, SUCTION
8868808080BRACKET, COOLER DIAPHRAGM
main88688-08080
8868822180BRACKET, COOLER DIAPHRAGM
main88688-22180
9009100584
main90091-00584
16 parts on this diagram · 2 diagrams in section
HEATING & AIR CONDITIONING - COMPRESSOR for Toyota SIENNA
This section contains 34 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota SIENNA. Key components include: ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR SUB-ASSY, MAGNET CLUTCH, COMPRESSOR ASSY, COOLER, BOLT, THROUGH, HEAD, COOLER COMPRESSOR CYLINDER.
