Toyota SIENNA — HEADLAMP

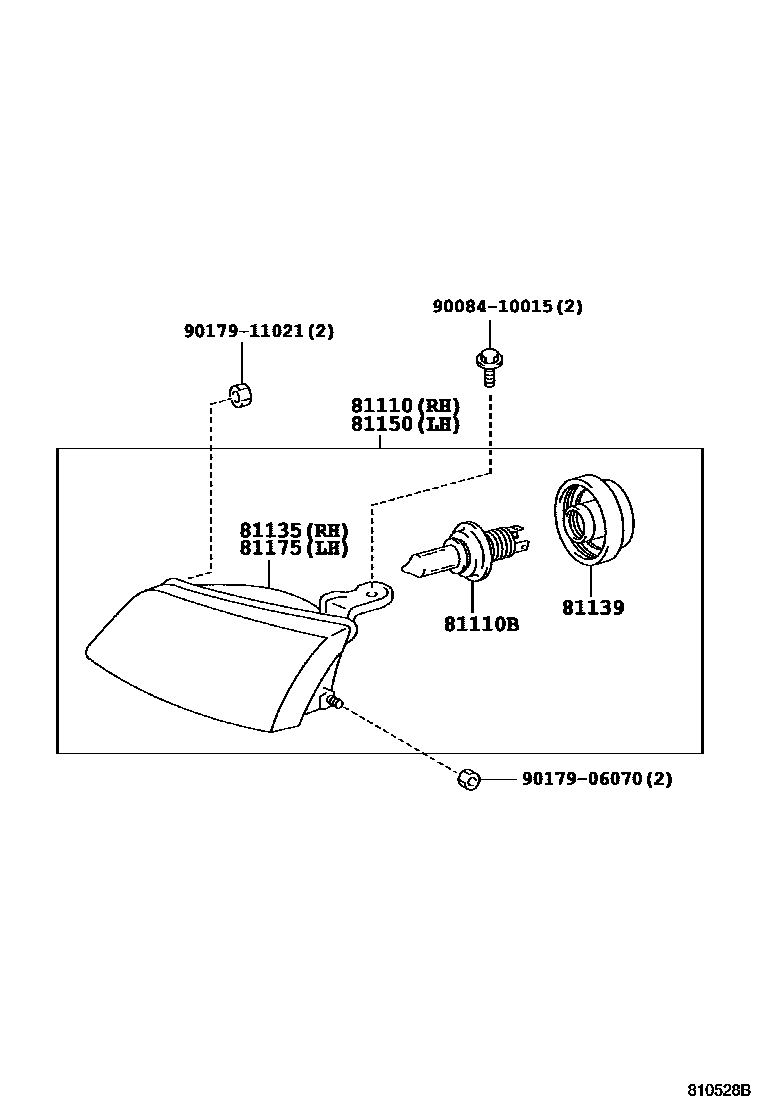

Parts diagram

81110HEADLAMP ASSY, RH

main81110-08010i199708-200008

main81110-08020i200008

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058×2i199708

12V 60/55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-08010i199708-200008

main81130-08020i200008

81139COVER, HEADLAMP SOCKET

main81139-02060×2i200008-200301

main90075-65005×2i199708-200008

81150HEADLAMP ASSY, LH

main81150-08010i199708-200008

main81150-08020i200008

81175UNIT ASSY, HEADLAMP, LH

main81170-08010i199708-200008

main81170-08020i200008

9008410015

main90084-10015

9017906070

main90179-06070

9017911021

main90179-11021

9 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota SIENNA

This section contains 9 genuine Toyota parts for the HEADLAMP system of the Toyota SIENNA. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), UNIT ASSY, HEADLAMP, RH, COVER, HEADLAMP SOCKET, HEADLAMP ASSY, LH.
