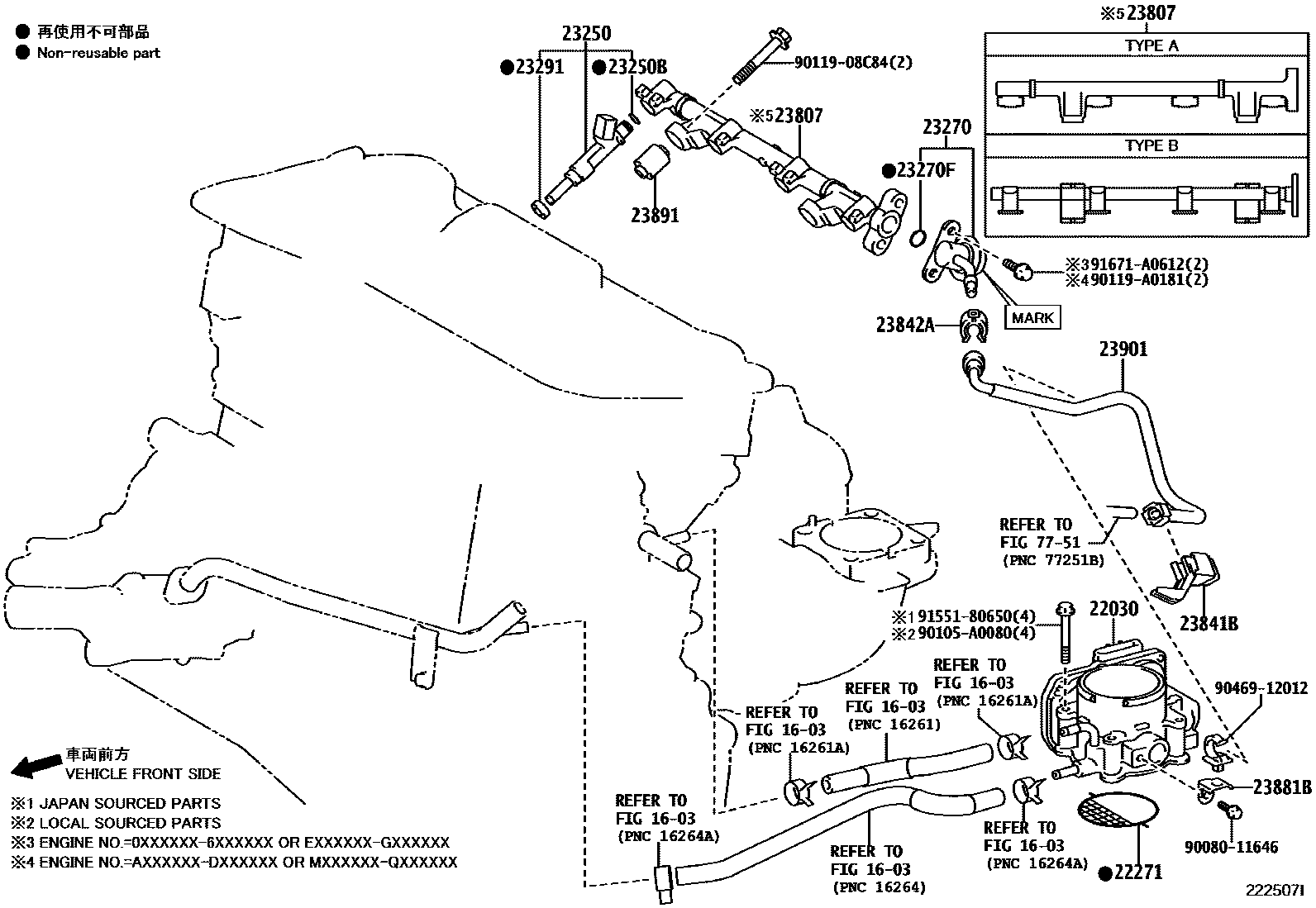

Toyota SIENNA — FUEL INJECTION SYSTEM

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0P050i201001-201409

main22030-0P060i201711-202009

main22030-0V010i201109-201308

*212

main22030-36010i201005-201308

*107

22271GASKET, THROTTLE BODY

main22271-0P020i201001-201308

main22271-0V010i201109-201308

*212

main22271-36010i201005-201308

*107

23250INJECTOR ASSY, FUEL

main23209-09175×4i201109-201308

*212

main23209-0P010×6i201001-201308

(L)

main23209-31090×6i201409-201608

(J)

main23209-39175×4i201005-201308

*107

23250BRING, O(FOR FUEL INJECTOR)

main90301-05011×6i201711-201910

NOK

main90301-07033×6i201409-201608

(J)

main90301-07037×4i201109-201204

*212

main90301-A0036×4i201204-201308

(L),*212

main90301-A0037×6i201204-201409

(L)

main90301-A0040×6i201910-202009

DENSO

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-36010i201005-201109

*107MARK 23270-36010

main23270-36031i201109-201308

*212MARK 23270-36031,*107MARK 23270-36031

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037i201005-201308

*107

23291INSULATOR, INJECTOR VIBRATION

main23291-0P010×6i201608-201711

main23291-0V020×4i201109-201308

(L),*212

main23291-28020×4i201005-201308

*107

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-36010i201005-201110

*107T/P A:REF.ILLUST

main23814-36040i201109-201308

*212

main23870-0P010i201001-201109

main23870-0P011i201109-201308

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-0C050i201711-202009

NO.1

main23841-31070i201409-201608

main90469-12012i201608-201702

NO.2

main90929-01444i201703-201711

NO.2

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-0C010i201711-202009

main23842-0P060i201311-201409

main23842-28010i201005-201308

main23842-31040i201001-201310

23881BBRACKET, FUEL HOSE

main23881-0P070i201711-202009

main23881-0V010i201005-201308

23891SPACER, FUEL DELIVERY

main23891-36010×2i201109-201308

*212

main23891-37010×2i201005-201110

*107PNC 23807=TYPE A

23901TUBE SUB-ASSY, FUEL

main23901-0P110i201001-201308

main23901-0P111i201410-201608

main23901-0V050i201005-201308

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9008011646

main90080-11646

90105A0080

main90105-A0080

9011908C84

main90119-08C84

90119A0181

main90119-A0181

9046912012

main90469-12012

9155180650

main91551-80650

91671A0612

main91671-A0612

22 parts on this diagram · 3 diagrams in section

FUEL INJECTION SYSTEM for Toyota SIENNA

This section contains 63 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota SIENNA. Key components include: RADIATOR & WATER OUTLET, MANIFOLD, CAP SUB-ASSY, DUST, BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR, GASKET, THROTTLE BODY.
