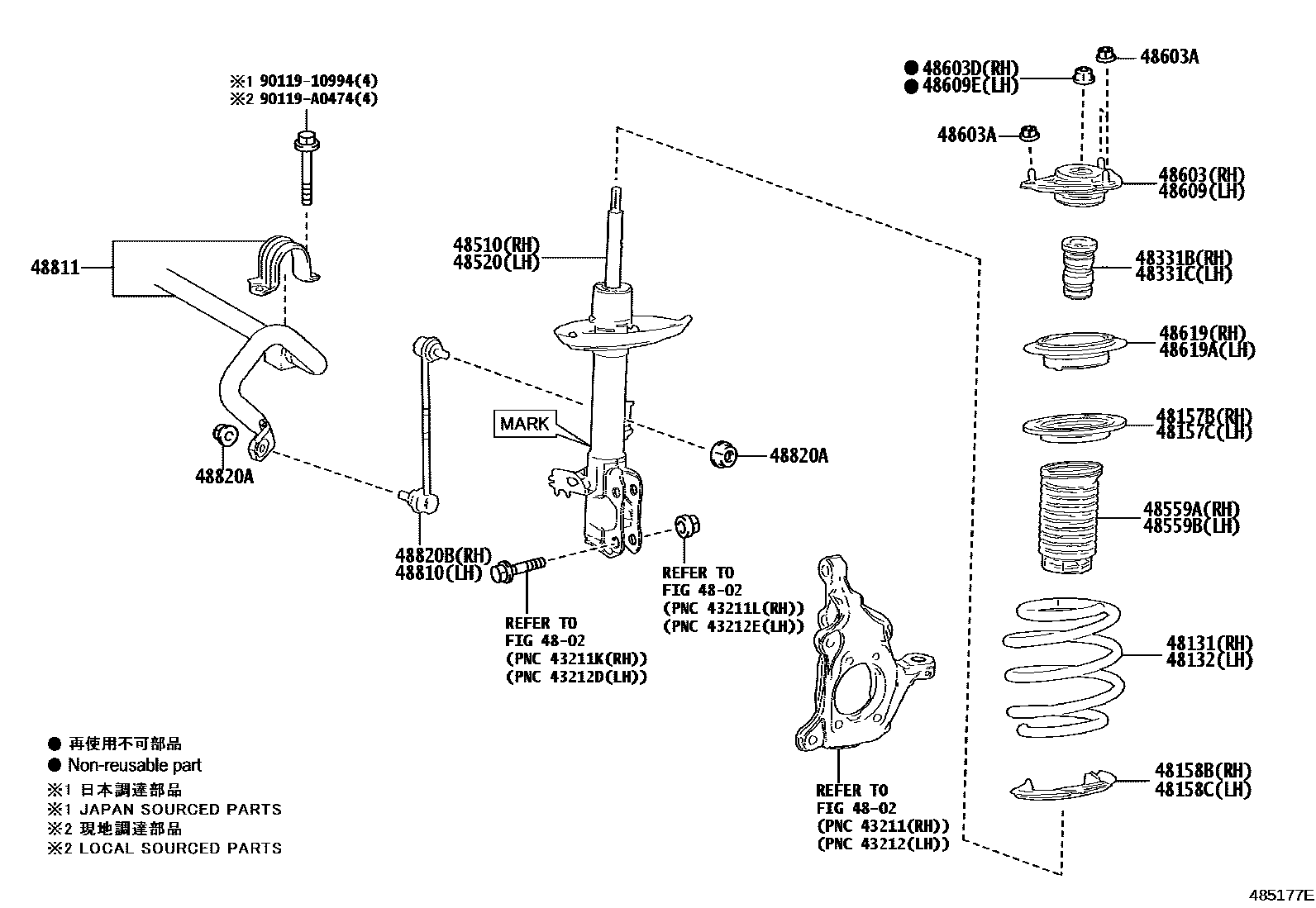

Toyota SIENNA — FRONT SPRING & SHOCK ABSORBER
4802FRONT AXLE ARM & STEERING KNUCKLE
48131SPRING, FRONT COIL, RH
AWD PARKS PLUS
AWD PARKS PLUS; MEXICO SPEC
MAAS PACKAGE
48132SPRING, FRONT COIL, LH
AWD PARKS PLUS
AWD PARKS PLUS; MEXICO SPEC
MAAS PACKAGE
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-08110; MARK 48510-08110,MEXICO SPEC
MARK 48510-08120
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-08110; MARK 48520-08110,MEXICO SPEC
MARK 48520-08120
48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1
48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
(J)
(L)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
(J)
(L)
48619BEARING, STRUT MOUNTING, RH
48619ABEARING, STRUT MOUNTING, LH
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
MAAS PACKAGE
48820ANUT(FOR FRONT STABILIZER LINK)
(L)
(J)
48820BLINK ASSY, FRONT STABILIZER, RH
9011910994
main90119-10994
90119A0474
main90119-A0474
26 parts on this diagram · 2 diagrams in section
FRONT SPRING & SHOCK ABSORBER for Toyota SIENNA
This section contains 26 genuine Toyota parts for the FRONT SPRING & SHOCK ABSORBER system of the Toyota SIENNA. Key components include: FRONT AXLE ARM & STEERING KNUCKLE, SPRING, FRONT COIL, RH, SPRING, FRONT COIL, LH, INSULATOR, FRONT COIL SPRING, UPPER RH, INSULATOR, FRONT COIL SPRING, UPPER LH.
