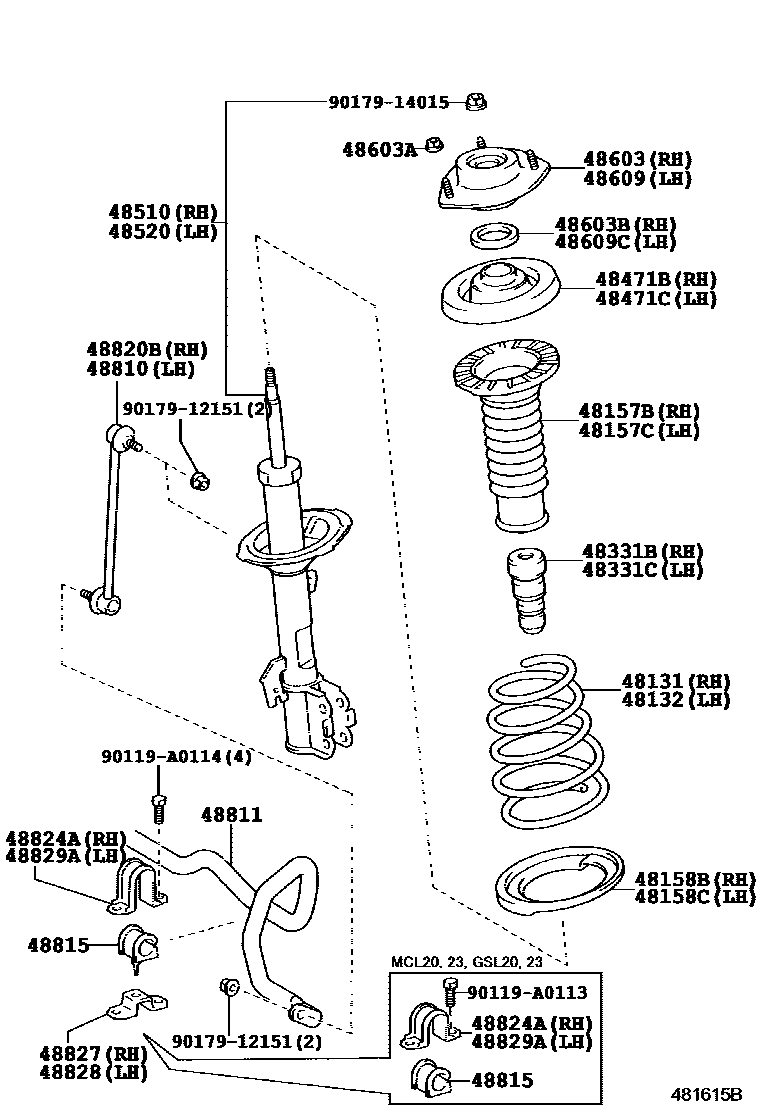

Toyota SIENNA — FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-AE030i200509-200612

main48131-AE031i200612-200712

main48131-AE032i200801-200904

main48131-AE033i200905

main48131-AE040i200301-200509

main48131-AE041i200612-200712

PASSENGERS CAR & R.V.-MOBILITY BASE VEICLE

main48131-AE042i200801-200904

PASSENGERS CAR & R.V.-MOBILITY BASE VEICLE

main48131-AE043i200905

PASSENGERS CAR & R.V.-MOBILITY BASE VEICLE

48132SPRING, FRONT COIL, LH

main48131-AE030i200301-200509

main48131-AE031i200612-200712

main48131-AE032i200801-200904

main48131-AE033i200905

main48131-AE040i200509-200612

MOBILITY BASE VEICLE

main48131-AE041i200612-200712

PASSENGERS CAR & R.V.-MOBILITY BASE VEICLE

main48131-AE042i200801-200904

PASSENGERS CAR & R.V.-MOBILITY BASE VEICLE

main48131-AE043i200905

PASSENGERS CAR & R.V.-MOBILITY BASE VEICLE

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-06080i200612

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-06080i200301-200509

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-33031i200801

(J)

main48158-AA020i200301-200509

main48158-AA030i200801-200806

(L)

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-33031i200801

(J)

main48158-AA020i200509-200612

main48158-AA030i200801-200806

(L)

48331BBUMPER, FRONT SPRING, RH

main48331-AA010i200301-200509

48331CBUMPER, FRONT SPRING, LH

main48331-AA010i200301-200509

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48471-06030i200301-200404

main48471-0E010i200503-200509

main48471-0E011i200612-200612

main48471-AA010i200511-200611

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48471-06030i200301-200404

main48471-0E010i200503-200509

main48471-0E011i200612-200612

main48471-AA010i200405-200503

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-A9240i200301-200509

MARK 48510-AE020

main48510-A9250i200301-200503

MARK 48510-AE030

main48510-A9680i200509-200612

MARK 48510-AE031; MARK 48510-AE031,MOBILITY BASE VEICLE

main48510-A9690i200612

MARK 48510-AE021

main48510-A9700i200612

MARK 48510-AE032; MARK 48510-AE032,PASSENGERS CAR & R.V.-MOBILITY BASE VEICLE

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-A9160i200509-200612

MARK 48520-AE020

main48520-A9170i200301-200503

MARK 48520-AE030

main48520-A9360i200503-200509

MARK 48520-AE031; MARK 48520-AE031,MOBILITY BASE VEHICLE

main48520-A9370i200612

MARK 48520-AE032; MARK 48520-AE032,PASSENGERS CAR & R.V.-MOBILITY BASE VEICLE

main48520-A9380i200612

MARK 48520-AE021

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-08020i200612

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10018×6i200509-200612

48603BBEARING(FOR FRONT SUSPENSION SUPPORT RH)

main90080-36070i200301-200509

main90903-63014i200509-200612

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-08020i200509-200612

48609CBEARING(FOR FRONT SUSPENSION SUPPORT LH)

main90080-36070i200301-200509

main90903-63014i200509-200612

48810LINK ASSY, FRONT STABILIZER, LH

main48820-08020i200301-200509

48811BAR, STABILIZER, FRONT

main48811-08010i200612

main48811-08020i200612

main48811-AE020i200301-200509

main48811-AE030i200301-200509

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-AE020×2i200612

main48815-AE030×2i200509-200612

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-08020i200301-200509

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-08010i200301-200509

main48824-08020i200509-200612

48827BRACKET, FRONT STABILIZER, NO.2 RH

main48827-08010i200301-200509

48828BRACKET, FRONT STABILIZER, NO.2 LH

main48827-08010i200612

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-08010i200612

main48824-08020i200612

90119A0113

main90119-A0113

90119A0114

main90119-A0114

9017912151

main90179-12151

9017914015

main90179-14015

29 parts on this diagram · 1 diagram in section

FRONT SPRING & SHOCK ABSORBER for Toyota SIENNA

This section contains 29 genuine Toyota parts for the FRONT SPRING & SHOCK ABSORBER system of the Toyota SIENNA. Key components include: SPRING, FRONT COIL, RH, SPRING, FRONT COIL, LH, INSULATOR, FRONT COIL SPRING, UPPER RH, INSULATOR, FRONT COIL SPRING, UPPER LH, INSULATOR, FRONT COIL SPRING, LOWER RH.
