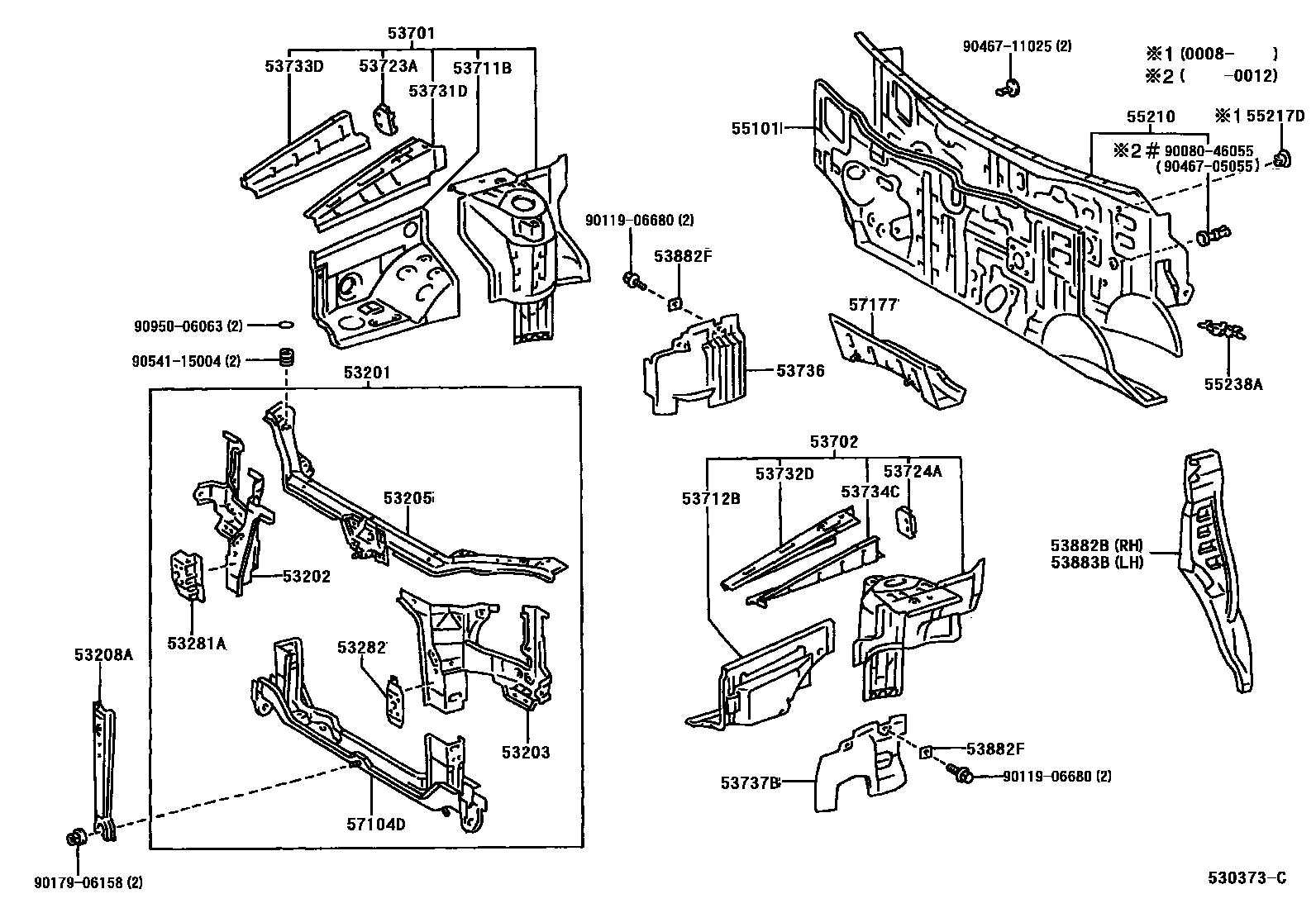

Toyota SIENNA — FRONT FENDER APRON & DASH PANEL
53201SUPPORT SUB-ASSY, RADIATOR
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53208ASUPPORT SUB-ASSY, HOOD LOCK
53281AREINFORCEMENT, FRONT BODY MOUNTING, RH
53282REINFORCEMENT, FRONT BODY MOUNTING, LH
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53723AREINFORCEMENT, FRONT SPRING SUPPORT, RH
53724AREINFORCEMENT, FRONT SPRING SUPPORT, LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53736SEAL, FRONT FENDER APRON, RH
53737BSEAL, FRONT FENDER APRON, LH
53882BSEAL, FRONT FENDER, RH
53882FSEAL, FRONT FENDER
53883BSEAL, FRONT FENDER, LH
55210INSULATOR ASSY, DASH PANEL
55217DRETAINER, DASH PANEL SILENCER
55238APLATE, DASH PANEL INSULATOR, NO.2
57104DMEMBER SUB-ASSY, FRONT CROSS
57177CROSSMEMBER, FRONT SIDE MEMBER TO DASH PANEL
9008046055
main90080-46055
9011906680
main90119-06680
9017906158
main90179-06158
9046705055
main90467-05055
9046711025
main90467-11025
9054115004
main90541-15004
9095006063
main90950-06063
35 parts on this diagram · 1 diagram in section
FRONT FENDER APRON & DASH PANEL for Toyota SIENNA
This section contains 35 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota SIENNA. Key components include: SUPPORT SUB-ASSY, RADIATOR, SUPPORT SUB-ASSY, RADIATOR, RH, SUPPORT SUB-ASSY, RADIATOR, LH, SUPPORT SUB-ASSY, RADIATOR, UPPER, SUPPORT SUB-ASSY, HOOD LOCK.
