Toyota SIENNA — FRONT DOOR WINDOW REGULATOR & HINGE

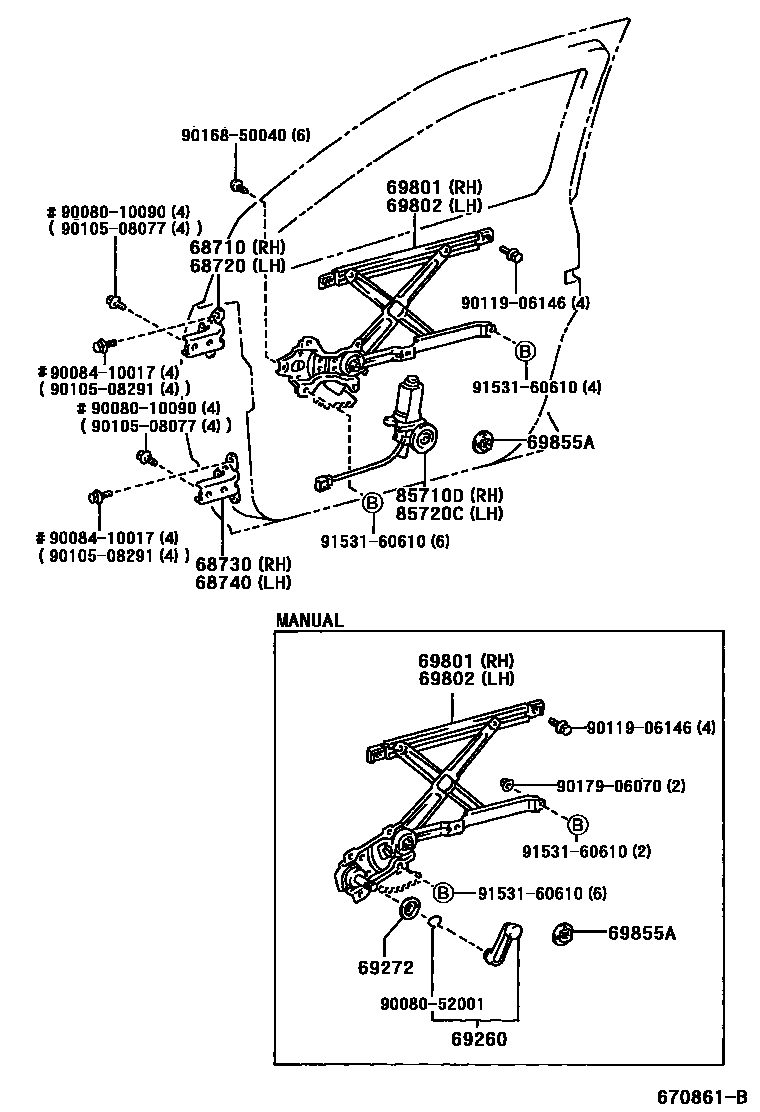

Parts diagram

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02010i199708

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02010i199708

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-08011i199708

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-08011i199708

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-AA010-B1×2i199708

LT.BLUISH GRAY,TRIM1#

main69260-AA010-E0×2i199708

MD.OAK,TRIM4#

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-03010×2i199708

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-08010i199708

W(POWER WINDOW)

main69810-08020i199708

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-08010i199708

W(POWER WINDOW)

main69820-08020i199708

69855ACOVER, DOOR WINDOW REGULATOR GEAR

main69855-20010×2i199708

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-08010i199708

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-08010i199708-200008

main85720-45010i200008

9008010090

main90080-10090

9008052001

main90080-52001

9008410017

main90084-10017

9010508077

main90105-08077

9010508291

main90105-08291

9011906146

main90119-06146

9016850040

main90168-50040

9017906070

main90179-06070

9153160610

main91531-60610

20 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota SIENNA

This section contains 20 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota SIENNA. Key components include: HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH, HANDLE ASSY, FRONT DOOR WINDOW REGULATOR.
