Toyota SIENNA — FRONT DOOR LOCK & HANDLE

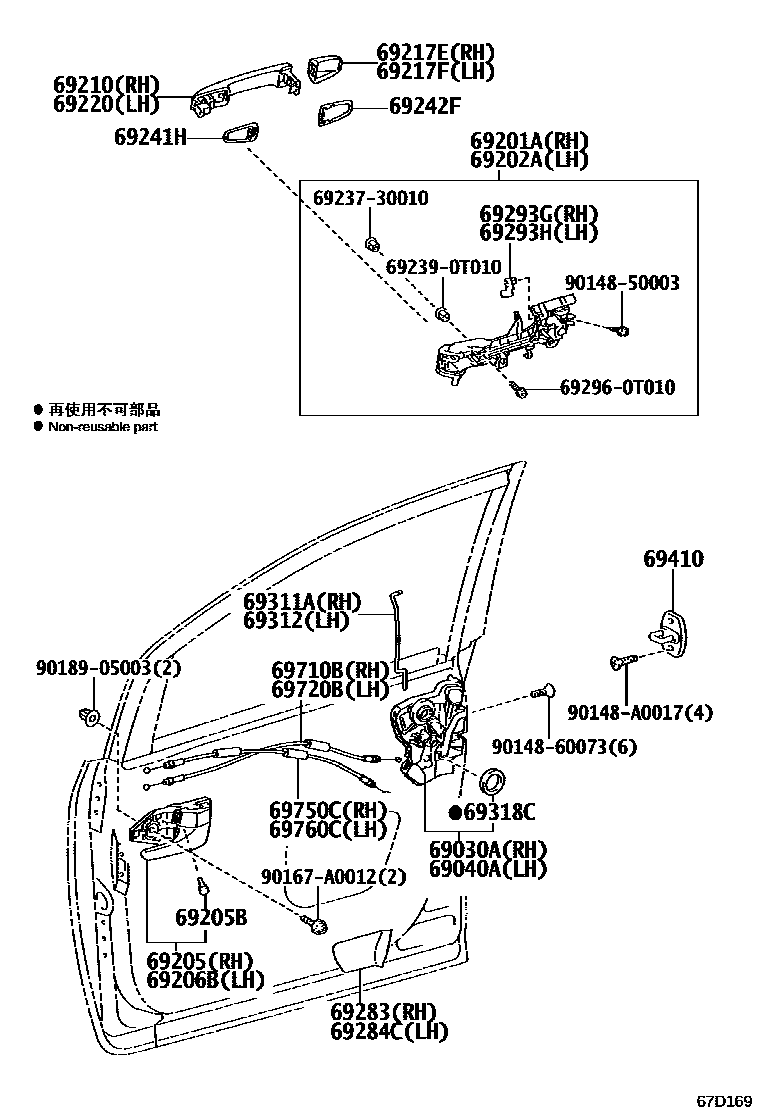

Parts diagram
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
main69030-02380i201608-201711
main69030-06200i201001-201110
main69030-0C050i201111-201409
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
main69040-02440i201711-202009
main69040-06180i201001-201110
main69040-0C050i201111-201409
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-0T010i201711-202009
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-0T010i201608-201711
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-08010-B0i201001-201308
LT.GRAY,TRIM1#
main69205-08010-B1i201409-201608
GRAY,TRIM1#
main69205-08010-E0i201001-201409
GREGE,TRIM4#
main69205-08020-B0i201711-202009
GRAY,TRIM1#; GRAY,TRIM14
main69205-08020-C0i201608-201711
BLACK,TRIM15,43; BLACK,TRIM2#
main69205-08020-E0i201409-201608
GREGE,TRIM4#; GREGE,TRIM42
main69205-0T010-B0i201001-201409
LT.GRAY,TRIM1#
main69205-0T010-E0i201001-201409
GREGE,TRIM4#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
main90080-54005×2i201608-201711
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-08010-B0i201001-201409
LT.GRAY,TRIM1#
main69206-08010-B1i201608-201711
GRAY,TRIM1#
main69206-08010-E0i201711-202009
GREGE,TRIM4#
main69206-08020-B0i201608-201711
GRAY,TRIM1#; GRAY,TRIM14
main69206-08020-C0i201608-201711
BLACK,TRIM15,43; BLACK,TRIM2#
main69206-08020-E0i201711-202009
GREGE,TRIM4#; GREGE,TRIM42
main69206-0T010-B0i201001-201409
LT.GRAY,TRIM1#
main69206-0T010-E0i201001-201409
GREGE,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-08020i201608-201711
NO PAINT REQ.
main69210-08030i201711-202009
PLATED
main69210-0T010-A1i201711-202009
SUPER WHITE 2,040
main69210-0T010-B3i201001-201409
GRAY M.M.,1H1
main69210-0T010-B4i201001-201409
SILVER ME.,1D6
main69210-0T010-B6i201808-202009
DE-CONTENT PACKAGE&STARTING SYSTEM-ROTARY,SILVER ME.,1J9; SILVER ME.,1J9
main69210-0T010-C0i201001-201208
BLACK,202
main69210-0T010-C1i201608-201711
ATTITUDE BLACK MC.,218; STARTING SYSTEM-ROTARY,ATTITUDE BLACK MC.,218; W(*DRS:*PSE OR MANUAL, *PAS:MANUAL SEAT)&STARTING SYSTEM-ROTARY,ATTITUDE BLACK MC.,218
main69210-0T010-D1i201409-201608
DE-CONTENT PACKAGE&STARTING SYSTEM-ROTARY,DK. RED M.M.,3Q3; DK. RED M.M.,3Q3; STARTING SYSTEM-ROTARY,DK. RED M.M.,3Q3
main69210-0T010-E2i201001-201409
BEIGE ME.,4T8
main69210-0T010-E3i201711-202009
DARK SHERRY M.M.,4W4; DE-CONTENT PACKAGE&STARTING SYSTEM-ROTARY,DARK SHERRY M.M.,4W4
main69210-0T010-F0i201409-201608
DE-CONTENT PACKAGE&STARTING SYSTEM-ROTARY,LT.YELLOW M.M.,5B2; LT.YELLOW M.M.,5B2; STARTING SYSTEM-ROTARY,LT.YELLOW M.M.,5B2
main69210-0T010-G0i201001-201409
OLIVE M.M.,6T7
main69210-0T010-G1i201711-202009
ALUMINA JADE ME.,6W4; DE-CONTENT PACKAGE&STARTING SYSTEM-ROTARY,ALUMINA JADE ME.,6W4
main69210-0T010-H1i201001-201208
DK. TEAL M.M.,785
main69210-0T010-J1i201608-201711
GRAYISH BLUE M.M.,8V5; STARTING SYSTEM-ROTARY,GRAYISH BLUE M.M.,8V5; W(*DRS:*PSE OR MANUAL, *PAS:MANUAL SEAT)&STARTING SYSTEM-ROTARY,GRAYISH BLUE M.M.,8V5
main69210-0T010-J2i201409-201608
DE-CONTENT PACKAGE&STARTING SYSTEM-ROTARY,LT.BLUE ME.,8S4; LT.BLUE ME.,8S4; STARTING SYSTEM-ROTARY,LT.BLUE ME.,8S4
main69210-0T010-J3i201711-202009
DE-CONTENT PACKAGE&STARTING SYSTEM-ROTARY,DK.BLUE M.M.,8W6; DK.BLUE M.M.,8W6
main69210-0T020-A0i201409-201608
WHITE PEARL CS.,070
main69210-0T020-B3supersedes 69210-0T010-B3i201711-202009
GRAY M.M.,1H1; STARTING SYSTEM-PUSH BUTTON,GRAY M.M.,1H1
main69210-0T020-B4supersedes 69210-0T010-B4i201608-201711
SILVER ME.,1D6; STARTING SYSTEM-PUSH BUTTON,SILVER ME.,1D6
main69210-0T020-B6i201808-202009
SILVER ME.,1J9; STARTING SYSTEM-PUSH BUTTON,SILVER ME.,1J9
main69210-0T020-C1i201409-201608
ATTITUDE BLACK MC.,218; STARTING SYSTEM-PUSH BUTTON,ATTITUDE BLACK MC.,218
main69210-0T020-D1i201608-201711
DK. RED M.M.,3Q3; STARTING SYSTEM-PUSH BUTTON,DK. RED M.M.,3Q3
main69210-0T020-E3i201711-202009
DARK SHERRY M.M.,4W4
main69210-0T020-F0i201409-201608
LT.YELLOW M.M.,5B2
main69210-0T020-G1i201711-202009
ALUMINA JADE ME.,6W4
main69210-0T020-J1i201711-202009
DK.BLUE M.M.,8W6; STARTING SYSTEM-PUSH BUTTON,DK.BLUE M.M.,8W6
main69210-0T020-J2i201608-201711
GRAYISH BLUE M.M.,8V5
main69210-0T020-J4i201409-201608
LT.BLUE ME.,8S4
main69210-0T010-A0i201409-201608
DE-CONTENT PACKAGE&STARTING SYSTEM-ROTARY,WHITE PEARL CS.,070; STARTING SYSTEM-ROTARY,WHITE PEARL CS.,070
main69210-0T020-A1supersedes 69210-0T010-A1i201409-201608
STARTING SYSTEM-PUSH BUTTON,SUPER WHITE 2,040
main69210-0T020-C0i201001-201409
HIGH GRADE PACKAGE&STARTING SYSTEM-PUSH BUTTON,BLACK,202; STARTING SYSTEM-PUSH BUTTON,BLACK,202
main69210-0T020-E2i201001-201409
HIGH GRADE PACKAGE&STARTING SYSTEM-PUSH BUTTON,BEIGE ME.,4T8; STARTING SYSTEM-PUSH BUTTON,BEIGE ME.,4T8
main69210-0T020-G0i201001-201409
HIGH GRADE PACKAGE&STARTING SYSTEM-PUSH BUTTON,OLIVE M.M.,6T7; STARTING SYSTEM-PUSH BUTTON,OLIVE M.M.,6T7
main69210-0T020-H1i201001-201208
HIGH GRADE PACKAGE&STARTING SYSTEM-PUSH BUTTON,DK. TEAL M.M.,785; STARTING SYSTEM-PUSH BUTTON,DK. TEAL M.M.,785
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
main69250-08010i201409-201608
BLACK
main69250-08020i201409-201608
*CR
main69250-0T010-A1i201409-201608
SUPER WHITE 2,040
main69250-0T010-B3i201409-201608
DE-CONTENT PACKAGE&STARTING SYSTEM-ROTARY,GRAY M.M.,1H1; GRAY M.M.,1H1; STARTING SYSTEM-ROTARY,GRAY M.M.,1H1
main69250-0T010-B4i201001-201409
SILVER ME.,1D6
main69250-0T010-B6i201808-202009
DE-CONTENT PACKAGE&STARTING SYSTEM-ROTARY,SILVER ME.,1J9; SILVER ME.,1J9
main69250-0T010-C0i201001-201208
BLACK,202
main69250-0T010-C1i201711-202009
ATTITUDE BLACK MC.,218; DE-CONTENT PACKAGE&STARTING SYSTEM-ROTARY,ATTITUDE BLACK MC.,218
main69250-0T010-D1i201409-201608
DE-CONTENT PACKAGE&STARTING SYSTEM-ROTARY,DK. RED M.M.,3Q3; DK. RED M.M.,3Q3; STARTING SYSTEM-ROTARY,DK. RED M.M.,3Q3
main69250-0T010-E2i201001-201409
BEIGE ME.,4T8
main69250-0T010-E3i201711-202009
DARK SHERRY M.M.,4W4; DE-CONTENT PACKAGE&STARTING SYSTEM-ROTARY,DARK SHERRY M.M.,4W4
main69250-0T010-F0i201409-201608
DE-CONTENT PACKAGE&STARTING SYSTEM-ROTARY,LT.YELLOW M.M.,5B2; LT.YELLOW M.M.,5B2; STARTING SYSTEM-ROTARY,LT.YELLOW M.M.,5B2
main69250-0T010-G0i201001-201409
OLIVE M.M.,6T7
main69250-0T010-G1i201711-202009
ALUMINA JADE ME.,6W4; DE-CONTENT PACKAGE&STARTING SYSTEM-ROTARY,ALUMINA JADE ME.,6W4
main69250-0T010-H1i201001-201208
DK. TEAL M.M.,785
main69250-0T010-J1i201208-201409
GRAYISH BLUE M.M.,8V5
main69250-0T010-J2i201409-201608
DE-CONTENT PACKAGE&STARTING SYSTEM-ROTARY,LT.BLUE ME.,8S4; LT.BLUE ME.,8S4; STARTING SYSTEM-ROTARY,LT.BLUE ME.,8S4
main69250-0T010-J3i201711-202009
DE-CONTENT PACKAGE&STARTING SYSTEM-ROTARY,DK.BLUE M.M.,8W6; DK.BLUE M.M.,8W6
main69250-0T040-A0i201711-202009
WHITE PEARL CS.,070
main69250-0T040-B3supersedes 69250-0T010-B3i201711-202009
GRAY M.M.,1H1; STARTING SYSTEM-PUSH BUTTON,GRAY M.M.,1H1
main69250-0T040-B4supersedes 69250-0T010-B4i201711-201808
SILVER ME.,1D6; STARTING SYSTEM-PUSH BUTTON,SILVER ME.,1D6
main69250-0T040-B6i201808-202009
SILVER ME.,1J9; STARTING SYSTEM-PUSH BUTTON,SILVER ME.,1J9
main69250-0T040-C1i201608-201711
ATTITUDE BLACK MC.,218; STARTING SYSTEM-PUSH BUTTON,ATTITUDE BLACK MC.,218
main69250-0T040-D1i201608-201711
DK. RED M.M.,3Q3; STARTING SYSTEM-PUSH BUTTON,DK. RED M.M.,3Q3
main69250-0T040-E3i201711-202009
DARK SHERRY M.M.,4W4
main69250-0T040-F0i201409-201608
LT.YELLOW M.M.,5B2
main69250-0T040-G1i201711-202009
ALUMINA JADE ME.,6W4
main69250-0T040-J1i201711-202009
DK.BLUE M.M.,8W6; STARTING SYSTEM-PUSH BUTTON,DK.BLUE M.M.,8W6
main69250-0T040-J2i201608-201711
GRAYISH BLUE M.M.,8V5
main69250-0T040-J4i201409-201608
LT.BLUE ME.,8S4
main69250-0T010-A0i201608-201711
STARTING SYSTEM-ROTARY,WHITE PEARL CS.,070; W(*DRS:*PSE OR MANUAL, *PAS:MANUAL SEAT)&STARTING SYSTEM-ROTARY,WHITE PEARL CS.,070
main69250-0T040-A1i201001-201409
HIGH GRADE PACKAGE&STARTING SYSTEM-PUSH BUTTON,SUPER WHITE 2,040; STARTING SYSTEM-PUSH BUTTON,SUPER WHITE 2,040
main69250-0T040-C0i201001-201409
HIGH GRADE PACKAGE&STARTING SYSTEM-PUSH BUTTON,BLACK,202; STARTING SYSTEM-PUSH BUTTON,BLACK,202
main69250-0T040-E2i201001-201409
HIGH GRADE PACKAGE&STARTING SYSTEM-PUSH BUTTON,BEIGE ME.,4T8; STARTING SYSTEM-PUSH BUTTON,BEIGE ME.,4T8
main69250-0T040-G0i201001-201409
HIGH GRADE PACKAGE&STARTING SYSTEM-PUSH BUTTON,OLIVE M.M.,6T7; STARTING SYSTEM-PUSH BUTTON,OLIVE M.M.,6T7
main69250-0T040-H1i201001-201208
HIGH GRADE PACKAGE&STARTING SYSTEM-PUSH BUTTON,DK. TEAL M.M.,785; STARTING SYSTEM-PUSH BUTTON,DK. TEAL M.M.,785
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
main69217-08020i201001-201409
BLACK
main69217-08040i201608-201711
*CR
main69217-0T010-A1i201608-201711
SUPER WHITE 2,040
main69217-0T010-B3i201608-201711
GRAY M.M.,1H1; STARTING SYSTEM-ROTARY,GRAY M.M.,1H1; W(*DRS:*PSE OR MANUAL, *PAS:MANUAL SEAT)&STARTING SYSTEM-ROTARY,GRAY M.M.,1H1
main69217-0T010-B4i201608-201711
SILVER ME.,1D6; STARTING SYSTEM-ROTARY,SILVER ME.,1D6; W(*DRS:*PSE OR MANUAL, *PAS:MANUAL SEAT)&STARTING SYSTEM-ROTARY,SILVER ME.,1D6
main69217-0T010-B6i201808-202009
DE-CONTENT PACKAGE&STARTING SYSTEM-ROTARY,SILVER ME.,1J9; SILVER ME.,1J9
main69217-0T010-C0i201001-201409
BLACK,202
main69217-0T010-C1i201711-202009
ATTITUDE BLACK MC.,218; DE-CONTENT PACKAGE&STARTING SYSTEM-ROTARY,ATTITUDE BLACK MC.,218
main69217-0T010-D1i201409-201608
DE-CONTENT PACKAGE&STARTING SYSTEM-ROTARY,DK. RED M.M.,3Q3; DK. RED M.M.,3Q3; STARTING SYSTEM-ROTARY,DK. RED M.M.,3Q3
main69217-0T010-E2i201001-201409
BEIGE ME.,4T8
main69217-0T010-E3i201711-202009
DARK SHERRY M.M.,4W4; DE-CONTENT PACKAGE&STARTING SYSTEM-ROTARY,DARK SHERRY M.M.,4W4
main69217-0T010-F0i201608-201711
LT.YELLOW M.M.,5B2; STARTING SYSTEM-ROTARY,LT.YELLOW M.M.,5B2; W(*DRS:*PSE OR MANUAL, *PAS:MANUAL SEAT)&STARTING SYSTEM-ROTARY,LT.YELLOW M.M.,5B2
main69217-0T010-G0i201001-201409
OLIVE M.M.,6T7
main69217-0T010-G1i201711-202009
ALUMINA JADE ME.,6W4; DE-CONTENT PACKAGE&STARTING SYSTEM-ROTARY,ALUMINA JADE ME.,6W4
main69217-0T010-H1i201001-201208
DK. TEAL M.M.,785
main69217-0T010-J1i201409-201608
DE-CONTENT PACKAGE&STARTING SYSTEM-ROTARY,GRAYISH BLUE M.M.,8V5; GRAYISH BLUE M.M.,8V5; STARTING SYSTEM-ROTARY,GRAYISH BLUE M.M.,8V5
main69217-0T010-J2i201608-201711
LT.BLUE ME.,8S4; STARTING SYSTEM-ROTARY,LT.BLUE ME.,8S4; W(*DRS:*PSE OR MANUAL, *PAS:MANUAL SEAT)&STARTING SYSTEM-ROTARY,LT.BLUE ME.,8S4
main69217-0T010-J3i201711-202009
DE-CONTENT PACKAGE&STARTING SYSTEM-ROTARY,DK.BLUE M.M.,8W6; DK.BLUE M.M.,8W6
main69250-0T030-A0i201608-201711
WHITE PEARL CS.,070
main69250-0T030-B3supersedes 69217-0T010-B3i201711-202009
GRAY M.M.,1H1; STARTING SYSTEM-PUSH BUTTON,GRAY M.M.,1H1
main69250-0T030-B4supersedes 69217-0T010-B4i201711-201808
SILVER ME.,1D6; STARTING SYSTEM-PUSH BUTTON,SILVER ME.,1D6
main69250-0T030-B6i201808-202009
SILVER ME.,1J9; STARTING SYSTEM-PUSH BUTTON,SILVER ME.,1J9
main69250-0T030-C1i201711-202009
ATTITUDE BLACK MC.,218; STARTING SYSTEM-PUSH BUTTON,ATTITUDE BLACK MC.,040 ,1J9 ,218 ,3Q3
main69250-0T030-D1i201608-201711
DK. RED M.M.,3Q3; STARTING SYSTEM-PUSH BUTTON,DK. RED M.M.,3Q3
main69250-0T030-E3i201711-202009
DARK SHERRY M.M.,4W4
main69250-0T030-F0i201409-201608
LT.YELLOW M.M.,5B2
main69250-0T030-G1i201711-202009
ALUMINA JADE ME.,6W4
main69250-0T030-J1i201711-202009
DK.BLUE M.M.,8W6; STARTING SYSTEM-PUSH BUTTON,DK.BLUE M.M.,8W6
main69250-0T030-J2i201608-201711
GRAYISH BLUE M.M.,8V5
main69250-0T030-J4i201608-201711
LT.BLUE ME.,8S4
main69217-0T010-A0i201608-201711
STARTING SYSTEM-ROTARY,WHITE PEARL CS.,070; W(*DRS:*PSE OR MANUAL, *PAS:MANUAL SEAT)&STARTING SYSTEM-ROTARY,WHITE PEARL CS.,070
main69250-0T030-A1i201001-201409
HIGH GRADE PACKAGE&STARTING SYSTEM-PUSH BUTTON,SUPER WHITE 2,040; STARTING SYSTEM-PUSH BUTTON,SUPER WHITE 2,040
main69250-0T030-C0i201001-201409
HIGH GRADE PACKAGE&STARTING SYSTEM-PUSH BUTTON,BLACK,202; STARTING SYSTEM-PUSH BUTTON,BLACK,202
main69250-0T030-E2i201001-201409
HIGH GRADE PACKAGE&STARTING SYSTEM-PUSH BUTTON,BEIGE ME.,4T8; STARTING SYSTEM-PUSH BUTTON,BEIGE ME.,4T8
main69250-0T030-G0i201001-201409
HIGH GRADE PACKAGE&STARTING SYSTEM-PUSH BUTTON,OLIVE M.M.,6T7; STARTING SYSTEM-PUSH BUTTON,OLIVE M.M.,6T7
main69250-0T030-H1i201001-201208
HIGH GRADE PACKAGE&STARTING SYSTEM-PUSH BUTTON,DK. TEAL M.M.,785; STARTING SYSTEM-PUSH BUTTON,DK. TEAL M.M.,785
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69210-08020i201711-202009
NO PAINT REQ.
main69210-08030i201711-202009
PLATED
main69210-0T010-A1i201711-202009
SUPER WHITE 2,040
main69210-0T010-B3i201409-201608
DE-CONTENT PACKAGE&STARTING SYSTEM-ROTARY,GRAY M.M.,1H1; GRAY M.M.,1H1; STARTING SYSTEM-ROTARY,GRAY M.M.,1H1
main69210-0T010-B4i201001-201409
SILVER ME.,1D6
main69210-0T010-B6i201808-202009
DE-CONTENT PACKAGE&STARTING SYSTEM-ROTARY,SILVER ME.,1J9; SILVER ME.,1J9
main69210-0T010-C0i201001-201409
BLACK,202
main69210-0T010-C1i201409-201608
ATTITUDE BLACK MC.,218; DE-CONTENT PACKAGE&STARTING SYSTEM-ROTARY,ATTITUDE BLACK MC.,218; STARTING SYSTEM-ROTARY,ATTITUDE BLACK MC.,218
main69210-0T010-D1i201409-201608
DE-CONTENT PACKAGE&STARTING SYSTEM-ROTARY,DK. RED M.M.,3Q3; DK. RED M.M.,3Q3; STARTING SYSTEM-ROTARY,DK. RED M.M.,3Q3
main69210-0T010-E2i201001-201409
BEIGE ME.,4T8
main69210-0T010-E3i201711-202009
DARK SHERRY M.M.,4W4; DE-CONTENT PACKAGE&STARTING SYSTEM-ROTARY,DARK SHERRY M.M.,4W4
main69210-0T010-F0i201409-201608
DE-CONTENT PACKAGE&STARTING SYSTEM-ROTARY,LT.YELLOW M.M.,5B2; LT.YELLOW M.M.,5B2; STARTING SYSTEM-ROTARY,LT.YELLOW M.M.,5B2
main69210-0T010-G0i201001-201409
OLIVE M.M.,6T7
main69210-0T010-G1i201711-202009
ALUMINA JADE ME.,6W4; DE-CONTENT PACKAGE&STARTING SYSTEM-ROTARY,ALUMINA JADE ME.,6W4
main69210-0T010-H1i201001-201208
DK. TEAL M.M.,785
main69210-0T010-J1i201208-201409
GRAYISH BLUE M.M.,8V5
main69210-0T010-J2i201608-201711
LT.BLUE ME.,8S4; STARTING SYSTEM-ROTARY,LT.BLUE ME.,8S4; W(*DRS:*PSE OR MANUAL, *PAS:MANUAL SEAT)&STARTING SYSTEM-ROTARY,LT.BLUE ME.,8S4
main69210-0T010-J3i201711-202009
DE-CONTENT PACKAGE&STARTING SYSTEM-ROTARY,DK.BLUE M.M.,8W6; DK.BLUE M.M.,8W6
main69210-0T020-A0i201608-201711
WHITE PEARL CS.,070
main69210-0T020-B3supersedes 69210-0T010-B3i201711-202009
GRAY M.M.,1H1; STARTING SYSTEM-PUSH BUTTON,GRAY M.M.,1H1
main69210-0T020-B4supersedes 69210-0T010-B4i201608-201711
SILVER ME.,1D6; STARTING SYSTEM-PUSH BUTTON,SILVER ME.,1D6
main69210-0T020-B6i201808-202009
SILVER ME.,1J9; STARTING SYSTEM-PUSH BUTTON,SILVER ME.,1J9
main69210-0T020-C1i201608-201711
ATTITUDE BLACK MC.,218; STARTING SYSTEM-PUSH BUTTON,ATTITUDE BLACK MC.,218
main69210-0T020-D1i201608-201711
DK. RED M.M.,3Q3; STARTING SYSTEM-PUSH BUTTON,DK. RED M.M.,3Q3
main69210-0T020-E3i201711-202009
DARK SHERRY M.M.,4W4
main69210-0T020-F0i201409-201608
LT.YELLOW M.M.,5B2
main69210-0T020-G1i201711-202009
ALUMINA JADE ME.,6W4
main69210-0T020-J1i201711-202009
DK.BLUE M.M.,8W6; STARTING SYSTEM-PUSH BUTTON,DK.BLUE M.M.,8W6
main69210-0T020-J2i201409-201608
GRAYISH BLUE M.M.,8V5
main69210-0T020-J4i201409-201608
LT.BLUE ME.,8S4
main69210-0T010-A0i201409-201608
DE-CONTENT PACKAGE&STARTING SYSTEM-ROTARY,WHITE PEARL CS.,070; STARTING SYSTEM-ROTARY,WHITE PEARL CS.,070
main69210-0T020-A1i201001-201409
HIGH GRADE PACKAGE&STARTING SYSTEM-PUSH BUTTON,SUPER WHITE 2,040; STARTING SYSTEM-PUSH BUTTON,SUPER WHITE 2,040
main69210-0T020-C0i201001-201409
HIGH GRADE PACKAGE&STARTING SYSTEM-PUSH BUTTON,BLACK,202; STARTING SYSTEM-PUSH BUTTON,BLACK,202
main69210-0T020-E2i201001-201409
HIGH GRADE PACKAGE&STARTING SYSTEM-PUSH BUTTON,BEIGE ME.,4T8; STARTING SYSTEM-PUSH BUTTON,BEIGE ME.,4T8
main69210-0T020-G0i201001-201409
HIGH GRADE PACKAGE&STARTING SYSTEM-PUSH BUTTON,OLIVE M.M.,6T7; STARTING SYSTEM-PUSH BUTTON,OLIVE M.M.,6T7
main69210-0T020-H1i201001-201208
HIGH GRADE PACKAGE&STARTING SYSTEM-PUSH BUTTON,DK. TEAL M.M.,785; STARTING SYSTEM-PUSH BUTTON,DK. TEAL M.M.,785
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
main69241-0T010×2i201001-201409
69242FPAD, FRONT DOOR OUTSIDE HANDLE, REAR
main69242-07010×2i201606-201608
main69242-0T010×2i201001-201409
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
main69283-08010-B0i201001-201308
LT.GRAY,TRIM1#
main69283-08010-B1i201711-202009
GRAY,TRIM1#; GRAY,TRIM14
main69283-08010-C0i201608-201711
BLACK,TRIM15,43; BLACK,TRIM2#
main69283-08010-E0i201608-201711
GREGE,TRIM4#; GREGE,TRIM42
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
main69284-08010-B0i201001-201308
LT.GRAY,TRIM1#
main69284-08010-B1i201608-201711
GRAY,TRIM1#; GRAY,TRIM14
main69284-08010-C0i201608-201711
BLACK,TRIM15,43; BLACK,TRIM2#
main69284-08010-E0i201608-201711
GREGE,TRIM4#; GREGE,TRIM42
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
main69293-12030i201001-201409
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
main69293-12040i201001-201409
69311AROD, FRONT DOOR LOCK OPEN, RH
main69311-08020i201608-201711
69312ROD, FRONT DOOR LOCK OPEN, LH
main69312-08020i201001-201308
69318CSEAL, DOOR LOCK WIRING HARNESS
main69318-AA010×2i201001-201308
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-08060×2i201711-202009
main69410-AA030×2i201001-201409
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
main69710-08020i201001-201409
main69710-08030i201608-201711
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
main69710-08020i201001-201409
main69710-08030i201409-201608
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
main69750-08020i201001-201308
main69750-08040i201608-201711
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
main69750-08020i201001-201308
main69750-08040i201409-201608
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
692390T010PIN, BACK DOOR OUTSIDE HANDLE
main69239-0T010
692960T010SCREW, DOOR INSIDE HANDLE
main69296-0T010
9014850003
main90148-50003
9014860073
main90148-60073
90148A0017
main90148-A0017
90167A0012
main90167-A0012
9018905003
main90189-05003

33 parts on this diagram · 2 diagrams in section

FRONT DOOR LOCK & HANDLE for Toyota SIENNA

This section contains 37 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota SIENNA. Key components include: LOCK ASSY, FRONT DOOR W/MOTOR, RH, COVER SUB-ASSY, FRONT DOOR LOCK, RH, COVER SUB-ASSY, FRONT DOOR LOCK, LH, LOCK ASSY, FRONT DOOR W/MOTOR, LH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH.
