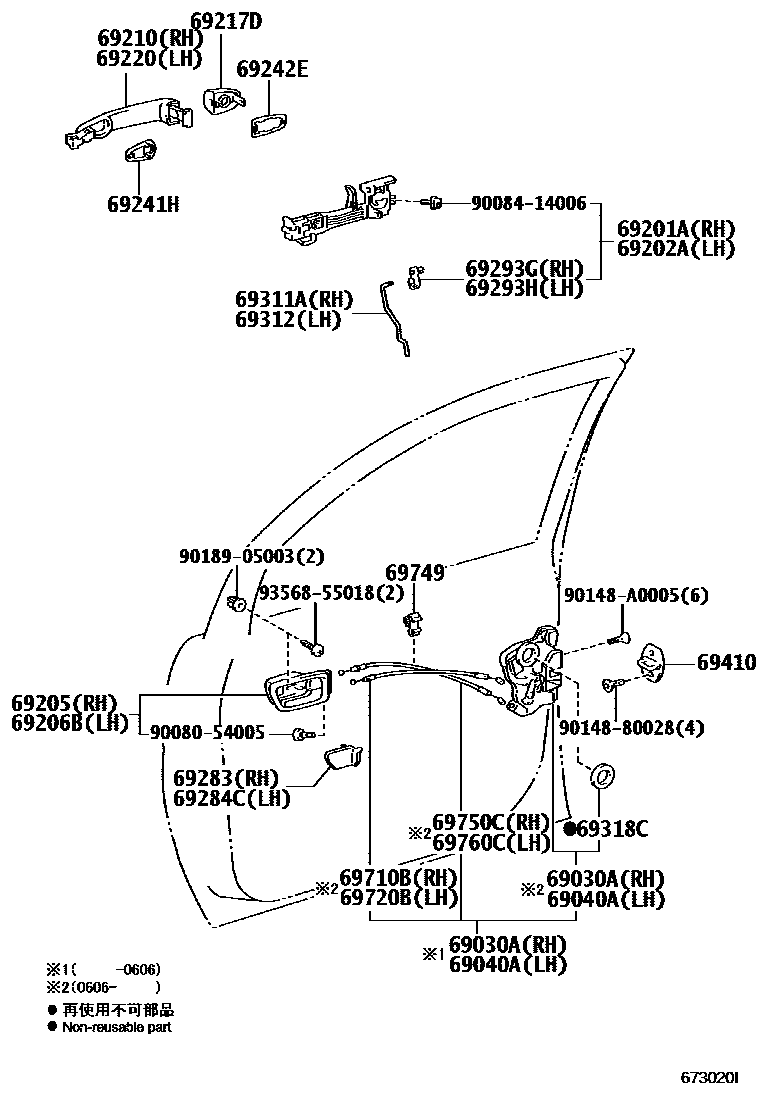

Toyota SIENNA — FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
DK. STONE,TRIM1#
SANDAL WOOD,TRIM4#
DK. STONE,TRIM1#
SANDAL WOOD,TRIM4#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
DK. STONE,TRIM1#
SANDAL WOOD,TRIM4#
DK. STONE,TRIM1#
SANDAL WOOD,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
NO PAINT REQ.
DOOR OUTSIDE HANDLE-COLORED,WHITE,056; WHITE,056
DOOR OUTSIDE HANDLE-COLORED,WHITE PEARL CS.,071; WHITE PEARL CS.,071
DOOR OUTSIDE HANDLE-COLORED,SUPER WHITE 2,040; SUPER WHITE 2,040
DOOR OUTSIDE HANDLE-COLORED,WHITE PEARL CS.,070; WHITE PEARL CS.,070
DOOR OUTSIDE HANDLE-COLORED,SILVER M.M.,1D7; SILVER M.M.,1D7
DOOR OUTSIDE HANDLE-COLOR,GRAY M.M.,1E3; GRAY M.M.,1E3
DOOR OUTSIDE HANDLE-COLORED,GRAY ME.,1F9; GRAY ME.,1F9
BLACK,202; DOOR OUTSIDE HANDLE-COLORED,BLACK,202
DK. RED M.M.,3Q3; DOOR OUTSIDE HANDLE-COLORED,DK. RED M.M.,3Q3
BEIGE M. M.,4Q2; DOOR OUTSIDE HANDLE-COLORED,BEIGE M. M.,4Q2
DK. GREEN MC.,6S7; DOOR OUTSIDE HANDLE-COLOR,DK. GREEN MC.,6S7
DOOR OUTSIDE HANDLE-COLORED,LT.GREEN ME.,6U0; LT.GREEN ME.,6U0
DK.BLUE MC.,8Q0; DOOR OUTSIDE HANDLE-COLOR,DK.BLUE MC.,8Q0
BLUE ME.,8R5; DOOR OUTSIDE HANDLE-COLORED,BLUE ME.,8R5
DK.BLUE MC.,8S6; DOOR OUTSIDE HANDLE-COLORED,DK.BLUE MC.,8S6
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
BLACK
DOOR OUTSIDE HANDLE-COLOR,WHITE,056; WHITE,056
DOOR OUTSIDE HANDLE-COLOR,WHITE PEARL CS.,071; WHITE PEARL CS.,071
DOOR OUTSIDE HANDLE-COLORED,SUPER WHITE 2,040; SUPER WHITE 2,040
DOOR OUTSIDE HANDLE-COLORED,WHITE PEARL CS.,070; WHITE PEARL CS.,070
DOOR OUTSIDE HANDLE-COLORED,SILVER M.M.,1D7; SILVER M.M.,1D7
DOOR OUTSIDE HANDLE-COLOR,GRAY M.M.,1E3; GRAY M.M.,1E3
DOOR OUTSIDE HANDLE-COLORED,GRAY ME.,1F9; GRAY ME.,1F9
BLACK,202; DOOR OUTSIDE HANDLE-COLORED,BLACK,202
DK. RED M.M.,3Q3; DOOR OUTSIDE HANDLE-COLOR,DK. RED M.M.,3Q3
BEIGE M. M.,4Q2; DOOR OUTSIDE HANDLE-COLORED,BEIGE M. M.,4Q2
DK. GREEN MC.,6S7; DOOR OUTSIDE HANDLE-COLOR,DK. GREEN MC.,6S7
DOOR OUTSIDE HANDLE-COLORED,LT.GREEN ME.,6U0; LT.GREEN ME.,6U0
DK.BLUE MC.,8Q0; DOOR OUTSIDE HANDLE-COLOR,DK.BLUE MC.,8Q0
BLUE ME.,8R5; DOOR OUTSIDE HANDLE-COLORED,BLUE ME.,8R5
DK.BLUE MC.,8S6; DOOR OUTSIDE HANDLE-COLORED,DK.BLUE MC.,8S6
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
NO PAINT REQ.
DOOR OUTSIDE HANDLE-COLOR,WHITE,056; WHITE,056
DOOR OUTSIDE HANDLE-COLORED,WHITE PEARL CS.,071; WHITE PEARL CS.,071
DOOR OUTSIDE HANDLE-COLORED,SUPER WHITE 2,040; SUPER WHITE 2,040
DOOR OUTSIDE HANDLE-COLORED,WHITE PEARL CS.,070; WHITE PEARL CS.,070
DOOR OUTSIDE HANDLE-COLOR,SILVER M.M.,1D7; SILVER M.M.,1D7
DOOR OUTSIDE HANDLE-COLOR,GRAY M.M.,1E3; GRAY M.M.,1E3
DOOR OUTSIDE HANDLE-COLORED,GRAY ME.,1F9; GRAY ME.,1F9
BLACK,202; DOOR OUTSIDE HANDLE-COLORED,BLACK,202
DK. RED M.M.,3Q3; DOOR OUTSIDE HANDLE-COLOR,DK. RED M.M.,3Q3
BEIGE M. M.,4Q2; DOOR OUTSIDE HANDLE-COLORED,BEIGE M. M.,4Q2
DK. GREEN MC.,6S7; DOOR OUTSIDE HANDLE-COLOR,DK. GREEN MC.,6S7
DOOR OUTSIDE HANDLE-COLORED,LT.GREEN ME.,6U0; LT.GREEN ME.,6U0
DK.BLUE MC.,8Q0; DOOR OUTSIDE HANDLE-COLOR,DK.BLUE MC.,8Q0
BLUE ME.,8R5; DOOR OUTSIDE HANDLE-COLORED,BLUE ME.,8R5
DK.BLUE MC.,8S6; DOOR OUTSIDE HANDLE-COLORED,DK.BLUE MC.,8S6
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
DK. STONE,TRIM1#
SANDAL WOOD,TRIM4#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
DK. STONE,TRIM1#
SANDAL WOOD,TRIM4#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69749CLAMP, FRONT DOOR LOCK LINK
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
9008054005
main90080-54005
9008414006
main90084-14006
9014880028
main90148-80028
90148A0005
main90148-A0005
9018905003
main90189-05003
9356855018
main93568-55018
30 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota SIENNA
This section contains 30 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota SIENNA. Key components include: LOCK ASSY, FRONT DOOR W/MOTOR, RH, LOCK ASSY, FRONT DOOR W/MOTOR, LH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH.
