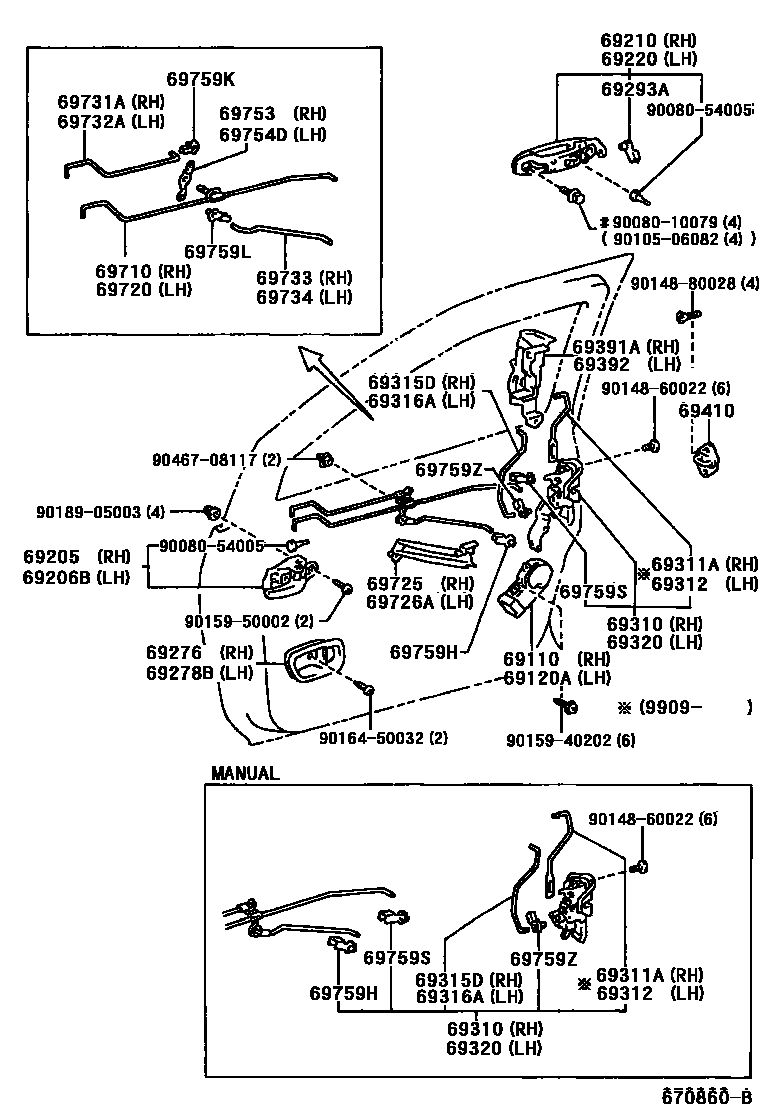

Toyota SIENNA — FRONT DOOR LOCK & HANDLE
69110ACTUATOR ASSY, FRONT DOOR LOCK, RH
69120AACTUATOR ASSY, FRONT DOOR LOCK, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLUISH GRAY,TRIM1#
OAK,TRIM4#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLUISH GRAY,TRIM1#
OAK,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040
SILVER M.M.,1D7
SILVER ME.,1C8
BLACK,202
RED M.M.,3K4
DK.RED M.M.,3M6
DK. RED MC.,3N6
DK. RED MC.,3P5
BEIGE M.M.,4N7
BEIGE M.M.,4Q2
GR.GREEN ME.,6M3
DK.GREEN ME.,6P2
GREEN MC.,6R1
BLUE M.M.,8L9
BLUE M.M.,8N7
DK.BLUE MC.,8Q0
LT.PURPLE ME.OP.,931
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE 2,040
SILVER M.M.,1D7
SILVER ME.,1C8
BLACK,202
RED M.M.,3K4
DK.RED M.M.,3M6
DK. RED MC.,3N6
DK. RED MC.,3P5
BEIGE M.M.,4N7
BEIGE M.M.,4Q2
GR.GREEN ME.,6M3
DK.GREEN M.M.,6P2
GREEN MC.,6R1
BLUE M.M.,8L9
BLUE M.M.,8N7
DK.BLUE MC.,8Q0
LT.PURPLE ME.OP.,931
69276BEZEL, FRONT DOOR INSIDE HANDLE
BLUISH GRAY,TRIM1#
OAK,TRIM4#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
BLUISH GRAY,TRIM1#
OAK,TRIM4#
69310LOCK ASSY, FRONT DOOR, RH
W(POWER DOOR LOCK)
W(SECURITY SYSTEM)
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69315DLINK, FRONT DOOR OUTSIDE LOCKING, RH
69316ALINK, FRONT DOOR OUTSIDE LOCKING, LH
69320LOCK ASSY, FRONT DOOR, LH
W(POWER DOOR LOCK)
W(SECURITY SYSTEM)
69391ACOVER, FRONT DOOR LOCK, OUTER RH
69392COVER, FRONT DOOR LOCK, OUTER LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69725PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH
69726APROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH
69731ALINK, FRONT DOOR INSIDE LOCKING, NO.1 RH
69732ALINK, FRONT DOOR INSIDE LOCKING, NO.1 LH
69733LINK, FRONT DOOR INSIDE LOCKING, RH
69734LINK, FRONT DOOR INSIDE LOCKING, LH
69753BELLCRANK, DOOR LOCK CONTROL, RH
69754DBELLCRANK, DOOR LOCK CONTROL, LH
69759KSNAP, DOOR LOCK CONTROL LINK
69759LSNAP, DOOR LOCK CONTROL LINK
69759ZSNAP, DOOR LOCK CONTROL LINK
9008010079
main90080-10079
9008054005
main90080-54005
9010506082
main90105-06082
9014860022
main90148-60022
9014880028
main90148-80028
9015940202
main90159-40202
9015950002
main90159-50002
9016450032
main90164-50032
9018905003
main90189-05003
9046708117
main90467-08117
43 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota SIENNA
This section contains 43 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota SIENNA. Key components include: ACTUATOR ASSY, FRONT DOOR LOCK, RH, ACTUATOR ASSY, FRONT DOOR LOCK, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH, HANDLE ASSY, FRONT DOOR, OUTSIDE RH.
