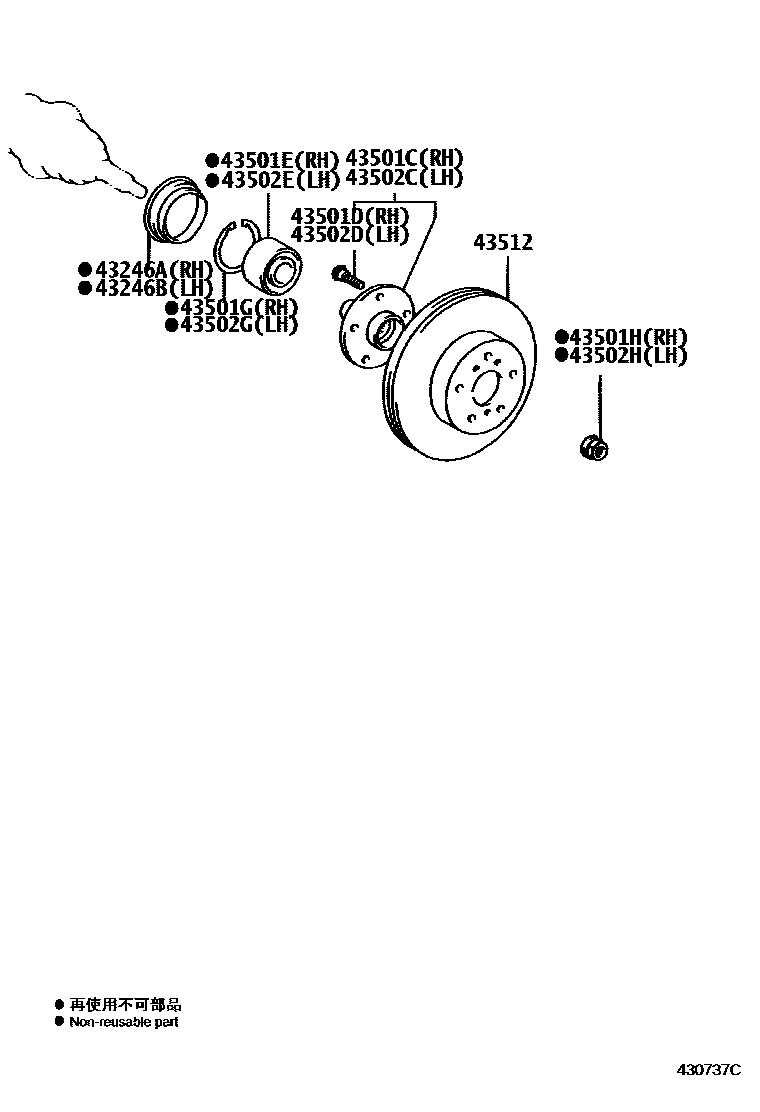

Toyota SIENNA — FRONT AXLE HUB

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-28020i200301-200509

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-28020i200301-200509

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-08010i200301-200509

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5i200301-200509

43501EBEARING (FOR FRONT AXLE HUB RH)

main90080-36193i200301-200509

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90520-77001i200301-200509

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i200301-200509

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-08010i200301-200509

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5i200301-200509

43502EBEARING (FOR FRONT AXLE HUB LH)

main90080-36193i200301-200509

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90520-77001i200301-200509

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i200301-200509

43512DISC, FRONT

main43512-08030×2i200301-200509

main43512-08040×2i200509-200612

13 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota SIENNA

This section contains 13 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota SIENNA. Key components include: DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH, DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), BEARING (FOR FRONT AXLE HUB RH).
