Toyota SIENNA — FRONT AXLE HUB

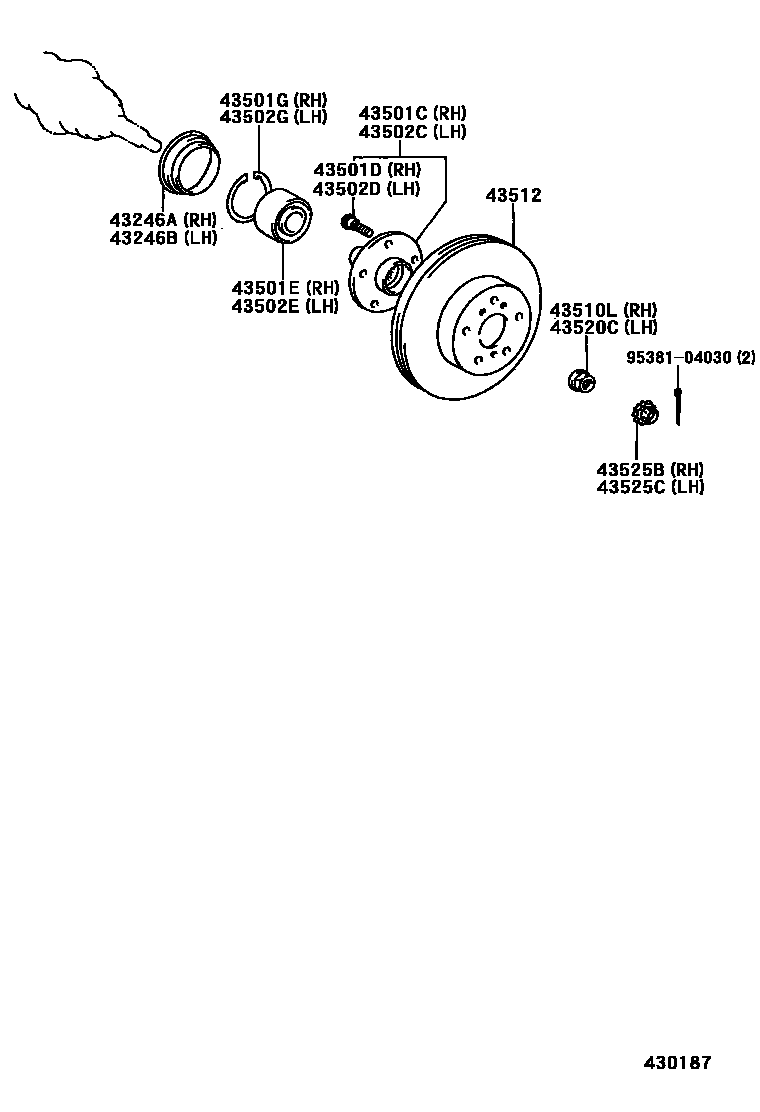

Parts diagram
43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH
main43246-32020i200108
main43246-AC020i199708-200101
43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH
main43246-32020i200108
main43246-AC020i200101-200108
(L)
43501CHUB SUB-ASSY, FRONT AXLE, RH
main43502-06020i199708
(L)
main43502-33010i199708
(J)
43501DBOLT, HUB (FOR FRONT AXLE RH)
main90942-02049×5i199708
43501EBEARING (FOR FRONT AXLE HUB RH)
main90080-36021i199708
43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)
main90521-88001i199708
43502CHUB SUB-ASSY, FRONT AXLE, LH
main43502-06020i199708
(L)
main43502-33010i199708
(J)
43502DBOLT, HUB (FOR FRONT AXLE LH)
main90942-02049×5i199708
43502EBEARING (FOR FRONT AXLE HUB LH)
main90080-36021i199708
43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)
main90521-88001i199708
43510LNUT (FOR STEERING KNUCKLE RH)
main90178-22001i199808
main90179-22020i199708-199808
43512DISC, FRONT
main43512-08020×2i199708-199804
main43512-08021×2i199804
43520CNUT (FOR STEERING KNUCKLE LH)
main90178-22001i199808
main90179-22020i199708-199808
43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH
main43525-20030i199708
43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH
main43525-20030i199708
9538104030
main95381-04030

16 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota SIENNA

This section contains 16 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota SIENNA. Key components include: DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH, DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), BEARING (FOR FRONT AXLE HUB RH).
