Toyota SIENNA — ELECTRONIC FUEL INJECTION SYSTEM
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910FRELAY, COMPUTER (FOR EFI)
85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89661COMPUTER, ENGINE CONTROL
MEXICO SPEC
MEXICO SPEC
MEXICO SPEC
MEXICO SPEC
MEXICO SPEC
MEXICO SPEC
89667BRACKET, ENGINE CONTROL COMPUTER
MEXICO SPEC
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
MEXICO SPEC
9017906274
main90179-06274
9043012005
main90430-12005
9331915010
main93319-15010

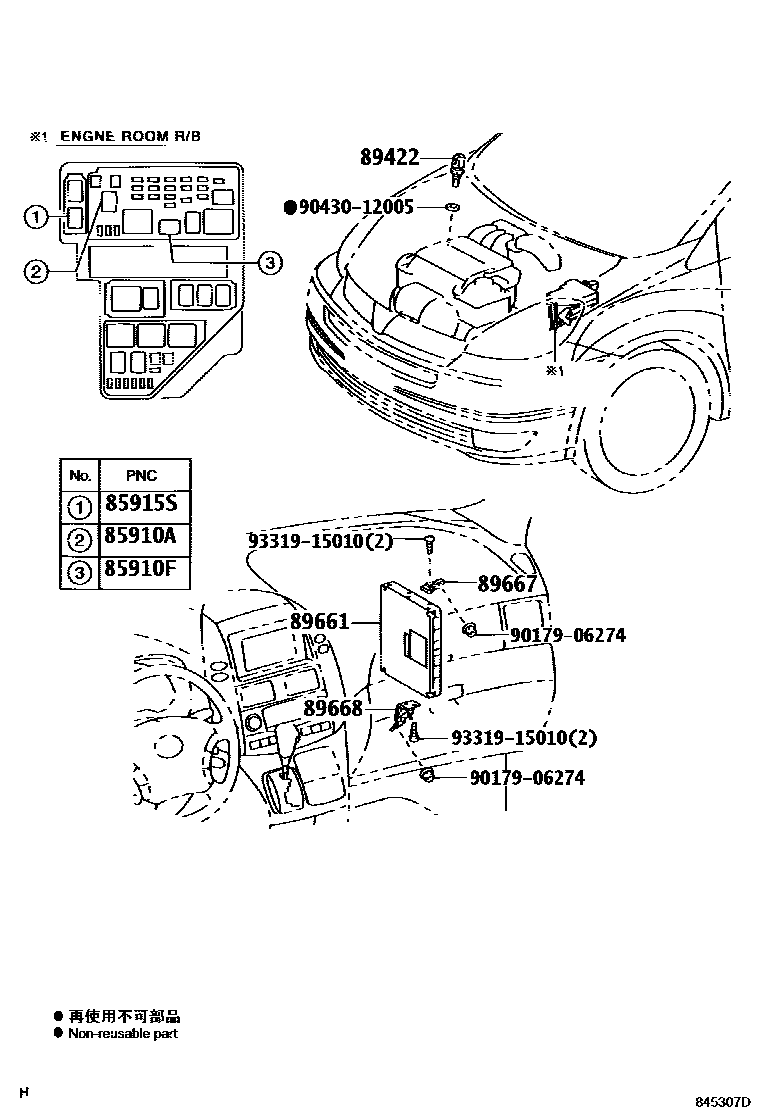

10 parts on this diagram · 2 diagrams in section
ELECTRONIC FUEL INJECTION SYSTEM for Toyota SIENNA
This section contains 12 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota SIENNA. Key components include: RELAY ASSY, FUEL PUMP, RELAY ASSY, CIRCUIT OPENING (FOR EFI), RELAY, COMPUTER (FOR EFI), RELAY, HEATER (FOR AIR FUEL RATIO SENSOR), SENSOR, WATER TEMPERATURE (FOR E.F.I.).
