Toyota SIENNA — COWL PANEL & WINDSHIELD GLASS

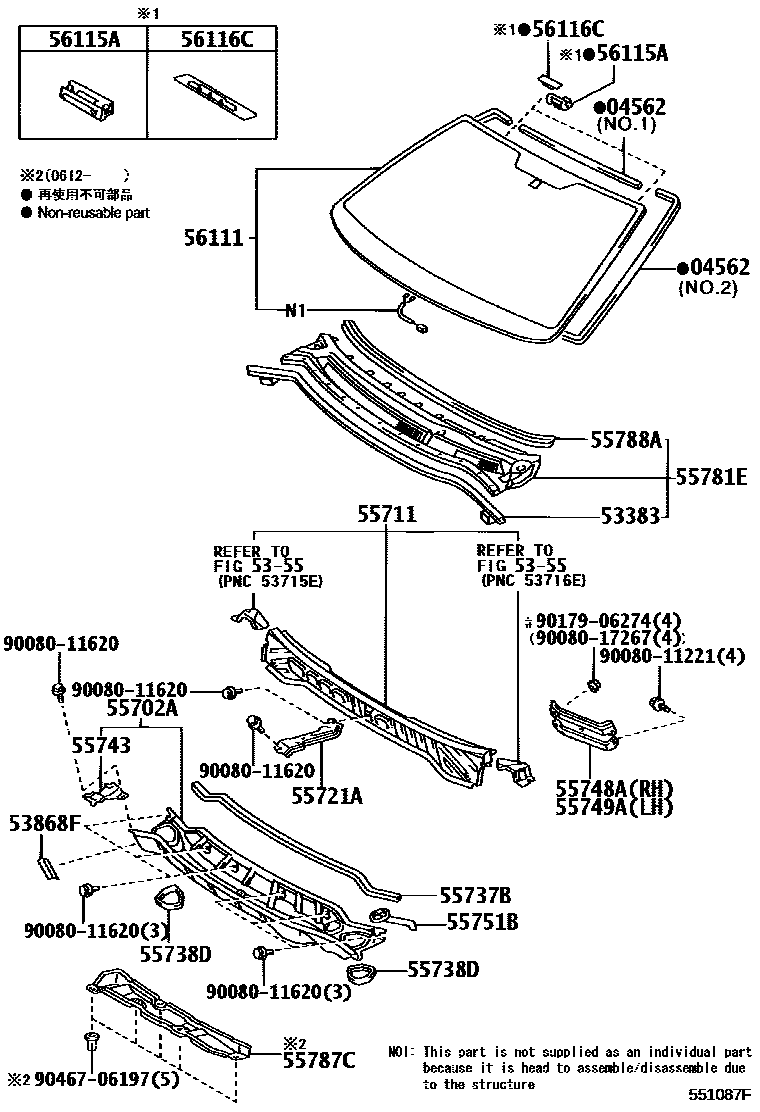

Parts diagram
04562DAM KIT, WINDSHIELD GLASS
main90998-91001i200509-200612
NO.2
main90998-91002i200509-200612
NO.1
main90998-91003i200509-200612
NO.1; WINDSHIELD DEICER-WITH,NO.1
main90998-91004i200301-200509
NO.2
53383SEAL, HOOD TO COWL TOP
main53383-08020i200301-200509
5355FRONT FENDER APRON & DASH PANEL
→ Go to FIG 53-55
53868FSEAL, FRONT FENDER TO COWL SIDE, NO.2 RH
main53868-08010i200301-200509
55702APANEL SUB-ASSY, COWL TOP, OUTER FRONT
main55702-08020i200301-200408
main55702-08022i200408-200509
main55702-08030i200612
55711PANEL, COWL TOP, OUTER
main55701-08010i200301-200509
55721ABRACE, COWL TOP TO COWL, INNER NO.1
main55721-08010i200301-200509
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
main55737-08010i200301-200509
55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2
main55738-08020×2i200301-200509
55743PANEL, COWL TOP OUTSIDE CORNER, RH
main55743-08020i200301-200408
55748ABRACE, COWL TOP INNER TO PILLAR
main55748-08010i200301-200509
55749ABRACE, COWL TOP INNER TO PILLAR, LH
main55749-08010i200301-200509
55751BHOSE, COWL WATER EXTRACT, NO.1
main55751-08020i200301-200509
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
main55708-08020i200301-200407
main55708-08030i200407-200509
main55708-08031i200612
55787CINSULATOR, COWL TOP PANEL, NO.1
main55787-08010i200612
55788APROTECTOR, COWL TOP VENTILATOR LOUVER
main55788-08010i200612
56111GLASS, WINDSHIELD
main56101-AE020i200403-200509
*HSEAL,T=4.7,GREEN
main56101-AE030i200301-200403
*LAM,T=4.7,GREEN; *LAM,T=4.7,GREEN,WINDSHIELD GLASS-LAMINATE GREEN SHADE; *LAM,T=4.7,GREEN,WINDSHIELD GLASS-LAMINATE GREEN SHADE&WINDSHIELD DEICER-W/WIPER DEICER
main56101-AE040supersedes 56101-AE020i200301-200509
*HSEAL,T=4.7,GREEN; *HSEAL,T=4.7,GREEN,WINDSHIELD DEICER-W/WIPER DEICER
main56101-AE041i200612
*HSEAL,T=4.7,GREEN; *HSEAL,T=4.7,GREEN,WINDSHIELD DEICER-WITH
56115ASTOPPER, WINDSHIELD GLASS, NO.1
main56115-22010i200301-200509
56116CSTOPPER, WINDSHIELD GLASS, NO.2
main56116-22050i200301-200509
9008011221
main90080-11221
9008011620
main90080-11620
9008017267
main90080-17267
9017906274
main90179-06274
9046706197
main90467-06197

24 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota SIENNA

This section contains 24 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota SIENNA. Key components include: DAM KIT, WINDSHIELD GLASS, SEAL, HOOD TO COWL TOP, FRONT FENDER APRON & DASH PANEL, SEAL, FRONT FENDER TO COWL SIDE, NO.2 RH, PANEL SUB-ASSY, COWL TOP, OUTER FRONT.
