Toyota SIENNA — COWL PANEL & WINDSHIELD GLASS

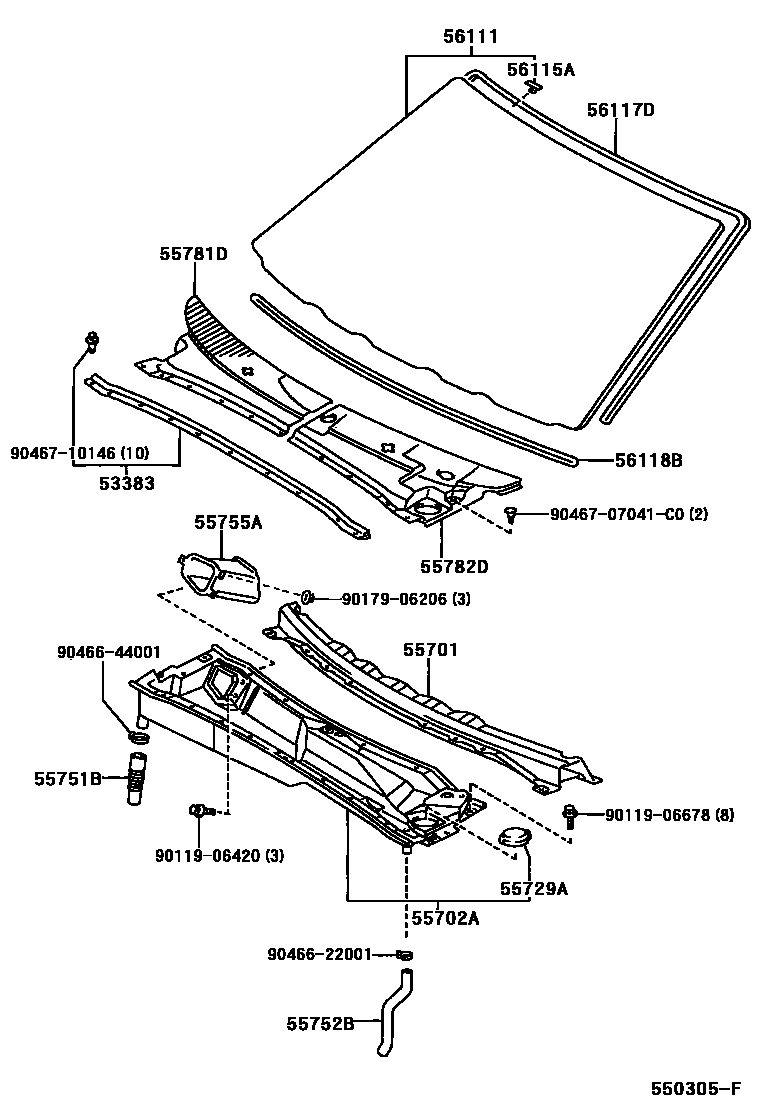

Parts diagram

53383SEAL, HOOD TO COWL TOP

main53383-08010i199708

55701PANEL SUB-ASSY, COWL

main55700-08010i199708

55702APANEL SUB-ASSY, COWL TOP, OUTER FRONT

main55702-08010i199708

55729ACOVER, COWL PANEL HOLE

main55729-08020i199708

55751BHOSE, COWL WATER EXTRACT, NO.1

main55751-08010i199708

55752BHOSE, COWL WATER EXTRACT, NO.2

main55752-08010i199708

55755ADUCT, HEATER AIR

main55755-08010i199708

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-08010i199708-200008

main55781-08020i200008

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-08010i199708

56111GLASS, WINDSHIELD

main56101-08010i199708-200008

*LAM,T=4.7,GREEN

main56101-08020i199708-200008

*LAM,T=4.7,D-GREEN

main56101-08030i200008

*LAM,T=4.7,GREEN

main56101-08040i200008

*LAM,T=4.7,DK.GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100×2i200107

main56115-33020×2i199708-200107

56117DDAM, WINDSHIELD GLASS ADHESIVE

main04562-12010i199708-200008

main56117-06010i200008

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main04562-12010i199708

9011906420

main90119-06420

9011906678

main90119-06678

9017906206

main90179-06206

9046622001

main90466-22001

9046644001

main90466-44001

9046707041C0

main90467-07041C0

9046710146

main90467-10146

20 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota SIENNA

This section contains 20 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota SIENNA. Key components include: SEAL, HOOD TO COWL TOP, PANEL SUB-ASSY, COWL, PANEL SUB-ASSY, COWL TOP, OUTER FRONT, COVER, COWL PANEL HOLE, HOSE, COWL WATER EXTRACT, NO.1.
