Toyota SIENNA — CONSOLE BOX & BRACKET

58803CBOX SUB-ASSY, CONSOLE CUP HOLDER

main58803-AE030-B0×2iGSL20,25..LE..CND200612-200912

STONE,TRIM1#

main58803-AE030-E0×2iMCL20,25..LE..CND200509-200612

FAWN,TRIM4#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-AE020supersedes 58804-AE020iGSL20,25..XLE200612

main58804-AE010iGSL20,25..LE..CND200612

CONSOLE BOX-FR-RR CONVERTIBLE

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-AE010iGSL20,25..LE..CND200612

CONSOLE BOX-FR-RR CONVERTIBLE

58810CONSOLE ASSY

main58810-AE020-B0supersedes 58810-AE020-B0iGSL20,25..XLE200612-200912

STONE,TRIM1#

main58810-AE020-E0supersedes 58810-AE020-E0iGSL20,25..XLE200612-200912

FAWN,TRIM4#

main58810-AE010-B0iMCL20,25..LE200301-200509

CONSOLE BOX-WITH,STONE,TRIM1#

main58810-AE010-E0iMCL20,25..LE200301-200509

CONSOLE BOX-WITH,FAWN,TRIM4#

58811EBOX, CONSOLE, UPPER

main58811-AE010-B1iGSL20,25..LE..CND200612-200912

STONE,TRIM1#

main58811-AE010-E1iMCL20,25..XLE200509-200612

FAWN,TRIM4#

58815ACARPET, CONSOLE BOX

main58815-AE010iMCL20,25..LE..CND200509-200612

CONSOLE BOX-FR-RR CONVERTIBLE

58820ABOX ASSY, CONSOLE COMPARTMENT

main58820-AE010-B1iMCL20,25..LE..CND200509-200612

STONE,TRIM1#

main58820-AE010-E1iMCL20,25..LE..CND200509-200612

FAWN,TRIM4#

58839ACOVER, CONSOLE BOX HOLE

main58839-AE010-B0iMCL20,25..XLE200509-200612

STONE,TRIM1#

main58839-AE010-E0iGSL20,25..LE..CND200612-200912

FAWN,TRIM4#

58861ASUPPORT, CONSOLE BOX, NO.1

main58861-AE010-B0iMCL20,25..7S..XLE200509-200612

STONE,TRIM1#

main58861-AE010-E0iMCL20,25..7S..XLE200509-200612

FAWN,TRIM4#

58871CUSHION, CONSOLE BOX

main58871-AE010×4iMCL20,25..LE..CND200509-200612

CONSOLE BOX-FR-RR CONVERTIBLE

58882REINFORCEMENT, EQUIPMENT SET BOX

main58882-AE010iMCL20,25..LE..CND200509-200612

CONSOLE BOX-FR-RR CONVERTIBLE

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-AE010-B0iGSL20,25..LE..CND200612-200912

STONE,TRIM1#

main58901-AE010-E0iMCL20,25..LE..CND200509-200612

FAWN,TRIM4#

main58901-AE010iMCL20,25..LE,XLE200301-200509

CONSOLE BOX-WITH

58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING

main58902-AE010iMCL20,25..LE..CND200509-200612

CONSOLE BOX-FR-RR CONVERTIBLE

58903BBRACKET SUB-ASSY, CONSOLE BOX HINGE, NO.2

main58903-AE010iMCL20,25..LE..CND200509-200612

CONSOLE BOX-FR-RR CONVERTIBLE

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-AE010-B0iMCL20,25..LE..CND200509-200612

STONE,TRIM1#

main58905-AE010-E0iMCL20,25..XLE200509-200612

FAWN,TRIM4#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-AE020iMCL20,25..LE..CND200509-200612

CONSOLE BOX-FR-RR CONVERTIBLE

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-32050iMCL20,25..LE..CND200509-200612

CONSOLE BOX-FR-RR CONVERTIBLE

58923APANEL, CONSOLE REAR END

main58904-AE010-B0iGSL20,25..LE..CND200612-200912

STONE,TRIM1#

main58904-AE010-E0iMCL20,25..LE..CND200509-200612

FAWN,TRIM4#

main58904-AE010iMCL20,25..LE,XLE200301-200509

CONSOLE BOX-WITH

58967ASPRING, CONSOLE DOOR STOPPER

main58967-AE010iMCL20,25..LE..CND200509-200612

CONSOLE BOX-FR-RR CONVERTIBLE

58985RETAINER, CONSOLE BOX

main58985-AE010iMCL20,25..XLE200509-200612

CONSOLE BOX-FR-RR CONVERTIBLE

58983AE010RETAINER, UPPER CONSOLE

main58983-AE010

67771AA020WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-AA020

9008454014

main90084-54014

9011906699

main90119-06699

9353054014

main93530-54014

9356015010

main93560-15010

9356854512

main93568-54512

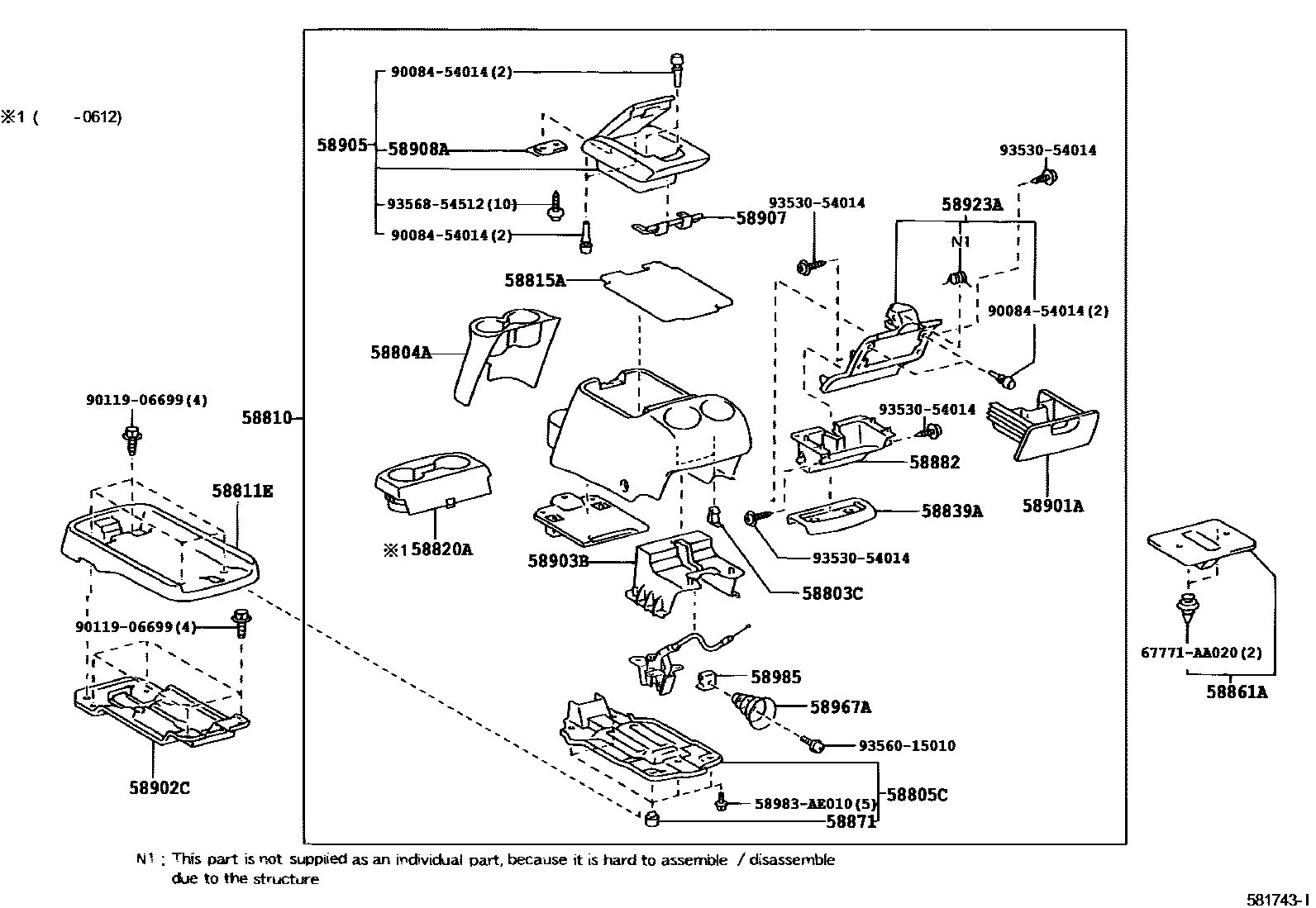

27 parts on this diagram · 1 diagram in section
