Toyota SIENNA — ARMREST & VISOR

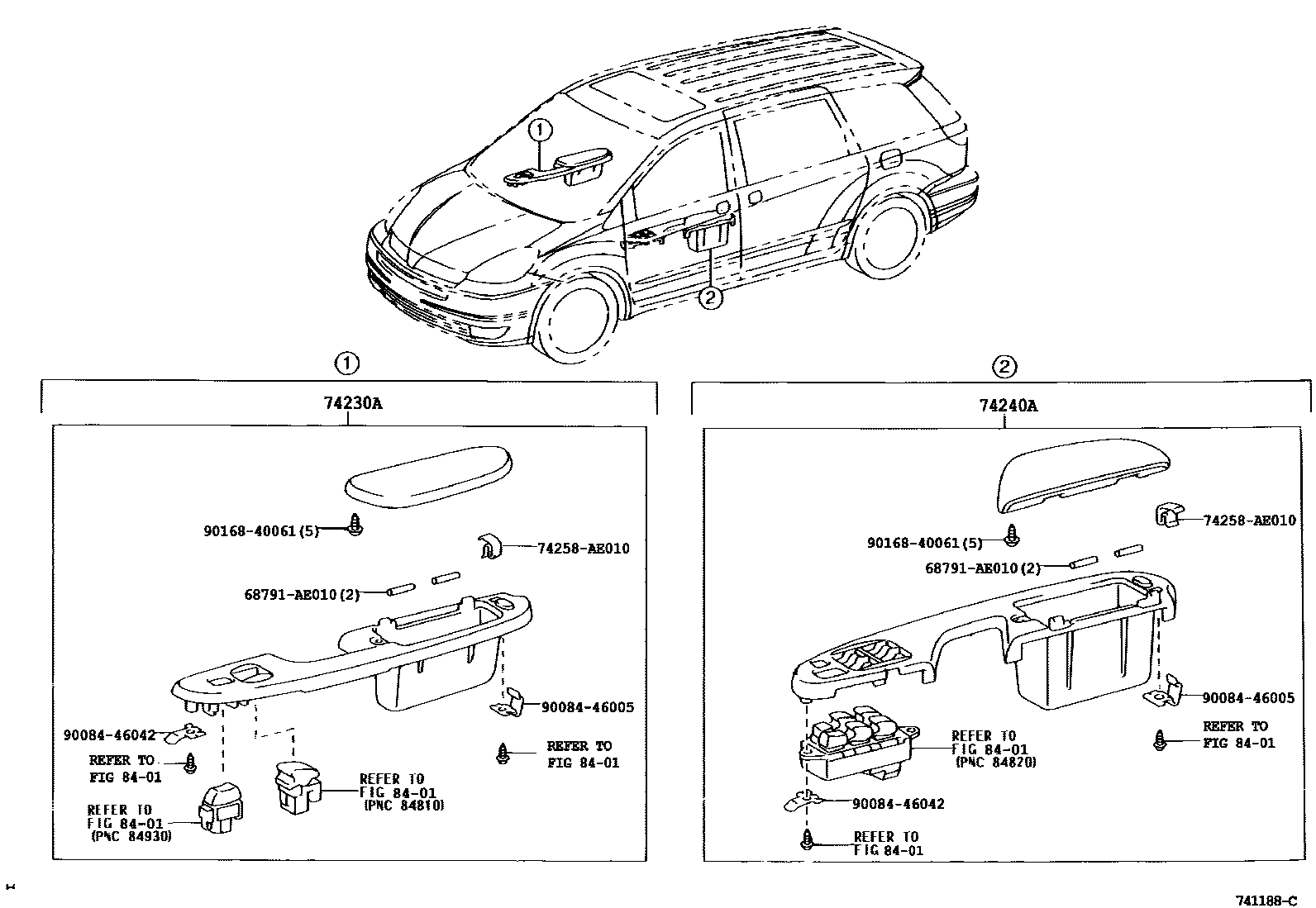

74230APANEL ASSY, FRONT DOOR ARMREST BASE, RH

main74230-AE010-B1i200301-200408

CE PACKAGE&SEAT COVER MATERIAL-FABRIC,STONE,TRIM1#; STONE,TRIM1#

main74230-AE010-E1i200301-200408

CE PACKAGE&SEAT COVER MATERIAL-FABRIC,FAWN,TRIM4#; FAWN,TRIM4#

main74230-AE011-B0i200409-200501

CE PACKAGE&SEAT COVER MATERIAL-FABRIC,STONE,TRIM1#; STONE,TRIM1#

main74230-AE011-E0i200409-200501

CE PACKAGE&SEAT COVER MATERIAL-FABRIC,FAWN,TRIM4#; FAWN,TRIM4#

main74230-AE012-B0i200502-200509

CE PACKAGE&SEAT COVER MATERIAL-FABRIC,STONE,TRIM1#; STONE,TRIM1#

main74230-AE012-E0i200502-200509

CE PACKAGE&SEAT COVER MATERIAL-FABRIC,FAWN,TRIM4#; FAWN,TRIM4#

main74230-AE013-B0i200509-200612

CE PACKAGE&SEAT COVER MATERIAL-FABRIC(D),STONE,TRIM1#; STONE,TRIM1#

main74230-AE013-E0i200509-200612

CE PACKAGE&SEAT COVER MATERIAL-FABRIC(D),FAWN,TRIM4#; FAWN,TRIM4#

main74230-AE040-B1supersedes 74230-AE033-B0i200301-200408

SEAT COVER MATERIAL-LEATHER,STONE,TRIM1#

main74230-AE040-E1supersedes 74230-AE033-E0i200301-200408

SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4#

main74230-AE041-B0supersedes 74230-AE031-B0i200409-200501

SEAT COVER MATERIAL-LEATHER,STONE,TRIM1#

main74230-AE041-E0supersedes 74230-AE031-E0i200409-200501

SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4#

main74230-AE042-B0supersedes 74230-AE033-B0i200502-200509

SEAT COVER MATERIAL-LEATHER,STONE,TRIM1#

main74230-AE042-E0supersedes 74230-AE033-E0i200502-200509

SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4#

main74230-AE043-B0supersedes 74230-AE033-B0i200612-200912

SEAT COVER MATERIAL-LEATHER,STONE,TRIM1#

main74230-AE043-E0supersedes 74230-AE033-E0i200612-200912

SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4#

main74230-AE050-B0supersedes 74230-AE023-B0i200301-200408

SEAT COVER MATERIAL-LEATHER,STONE,TRIM1#

main74230-AE050-E0supersedes 74230-AE023-E0i200301-200408

SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4#

main74230-AE051-B0supersedes 74230-AE021-B0i200409-200501

SEAT COVER MATERIAL-LEATHER,STONE,TRIM1#

main74230-AE051-E0supersedes 74230-AE021-E0i200409-200501

SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4#

main74230-AE052-B0supersedes 74230-AE023-B0i200502-200509

SEAT COVER MATERIAL-LEATHER,STONE,TRIM1#

main74230-AE052-E0supersedes 74230-AE023-E0i200502-200509

SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4#

main74230-AE053-B0supersedes 74230-AE023-B0i200509-200612

SEAT COVER MATERIAL-LEATHER,STONE,TRIM1#

main74230-AE053-E0supersedes 74230-AE023-E0i200509-200612

SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4#

74240APANEL ASSY, FRONT DOOR ARMREST BASE, LH

main74240-AE010-B1i200301-200408

CE PACKAGE&SEAT COVER MATERIAL-FABRIC,STONE,TRIM1#; STONE,TRIM1#

main74240-AE010-E1i200301-200408

CE PACKAGE&SEAT COVER MATERIAL-FABRIC,FAWN,TRIM4#; FAWN,TRIM4#

main74240-AE011-B0i200409-200501

CE PACKAGE&SEAT COVER MATERIAL-FABRIC,STONE,TRIM1#; STONE,TRIM1#

main74240-AE011-E0i200409-200501

CE PACKAGE&SEAT COVER MATERIAL-FABRIC,FAWN,TRIM4#; FAWN,TRIM4#

main74240-AE012-B0i200502-200509

CE PACKAGE&SEAT COVER MATERIAL-FABRIC,STONE,TRIM1#; STONE,TRIM1#

main74240-AE012-E0i200502-200509

CE PACKAGE&SEAT COVER MATERIAL-FABRIC,FAWN,TRIM4#; FAWN,TRIM4#

main74240-AE013-B0i200612-200912

CE PACKAGE&SEAT COVER MATERIAL-FABRIC,STONE,TRIM1#; STONE,TRIM1#

main74240-AE013-E0i200612-200912

CE PACKAGE&SEAT COVER MATERIAL-FABRIC,FAWN,TRIM4#; FAWN,TRIM4#

main74240-AE040-B1supersedes 74240-AE033-B0i200301-200408

SEAT COVER MATERIAL-LEATHER,STONE,TRIM1#

main74240-AE040-E1supersedes 74240-AE033-E0i200301-200408

SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4#

main74240-AE041-B0supersedes 74240-AE031-B0i200409-200501

SEAT COVER MATERIAL-LEATHER,STONE,TRIM1#

main74240-AE041-E0supersedes 74240-AE031-E0i200409-200501

SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4#

main74240-AE042-B0supersedes 74240-AE033-B0i200502-200509

SEAT COVER MATERIAL-LEATHER,STONE,TRIM1#

main74240-AE042-E0supersedes 74240-AE033-E0i200502-200509

SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4#

main74240-AE043-B0supersedes 74240-AE033-B0i200612-200912

SEAT COVER MATERIAL-LEATHER,STONE,TRIM1#

main74240-AE043-E0supersedes 74240-AE033-E0i200509-200612

SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4#

main74240-AE050-B0supersedes 74240-AE023-B0i200301-200408

SEAT COVER MATERIAL-LEATHER,STONE,TRIM1#

main74240-AE050-E0supersedes 74240-AE023-E0i200301-200408

SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4#

main74240-AE051-B0supersedes 74240-AE021-B0i200409-200501

SEAT COVER MATERIAL-LEATHER,STONE,TRIM1#

main74240-AE051-E0supersedes 74240-AE021-E0i200409-200501

SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4#

main74240-AE052-B0supersedes 74240-AE023-B0i200502-200509

SEAT COVER MATERIAL-LEATHER,STONE,TRIM1#

main74240-AE052-E0supersedes 74240-AE023-E0i200502-200509

SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4#

main74240-AE053-B0supersedes 74240-AE023-B0i200509-200612

SEAT COVER MATERIAL-LEATHER,STONE,TRIM1#

main74240-AE053-E0supersedes 74240-AE023-E0i200509-200612

SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

68791AE010PIN, DOOR HINGE, NO.1

main68791-AE010

74258AE010

main74258-AE010

9008446005

main90084-46005

9008446042

main90084-46042

9016840061

main90168-40061

8 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota SIENNA

This section contains 25 genuine Toyota parts for the ARMREST & VISOR system of the Toyota SIENNA. Key components include: ROOF HEADLINING & SILENCER PAD, PANEL ASSY, FRONT DOOR ARMREST BASE, RH, PANEL ASSY, FRONT DOOR ARMREST BASE, LH, VISOR ASSY, RH, COVER, VISOR BRACKET, RH.
