Toyota SIENNA — AIR BAG

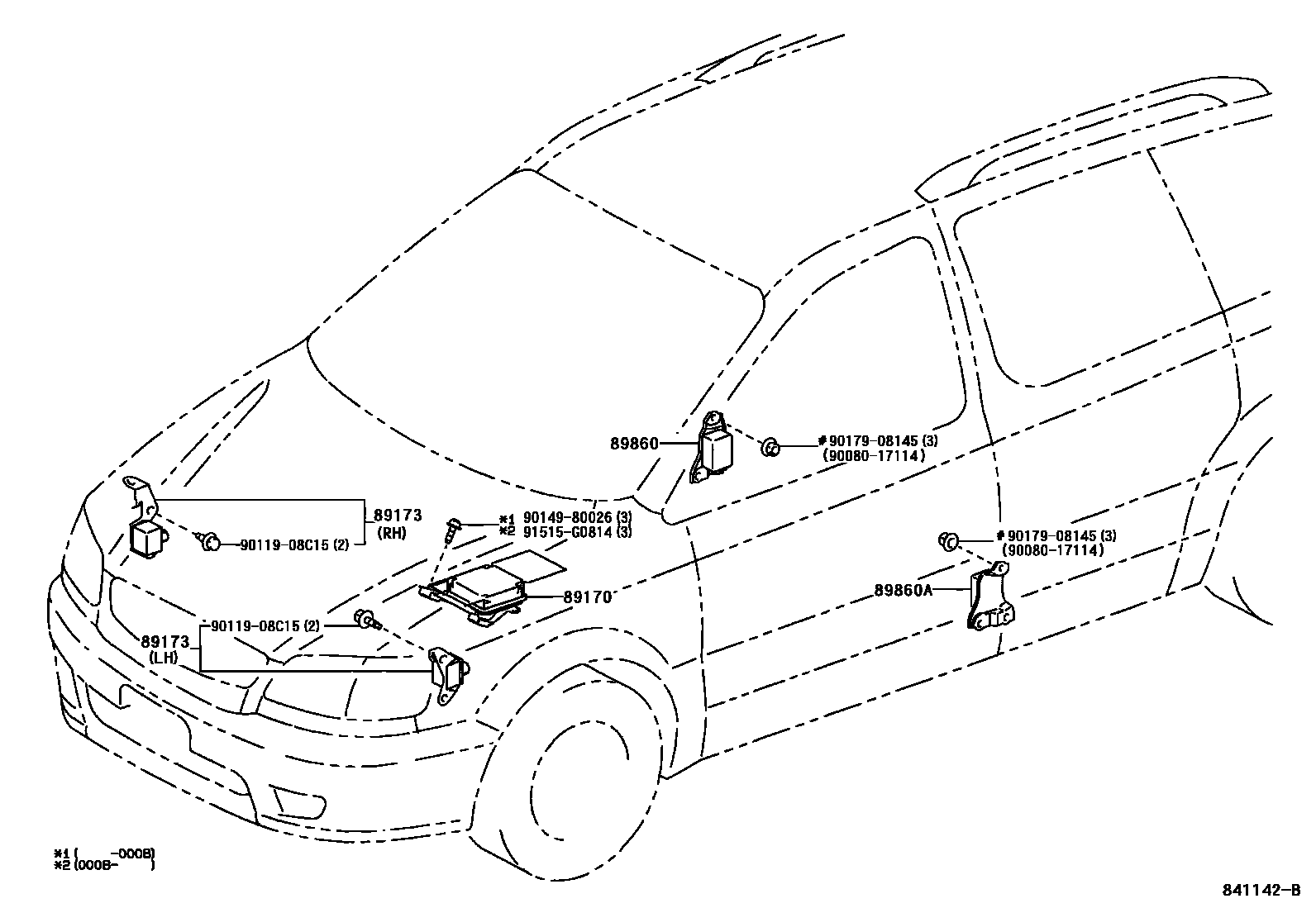

Parts diagram

89170SENSOR ASSY, AIRBAG

main89170-08010i199708-199808

main89170-08011i199808-200008

main89170-08030i200008

main89170-08040i200008

W(SIDE AIR BAG)

89173SENSOR, AIRBAG, FRONT

main89173-49035i199708

RH

main89173-49045i199708

LH

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-45010i200008

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89830-45010i200008

9008017114

main90080-17114

9011908C15

main90119-08C15

9014980026

main90149-80026

9017908145

main90179-08145

91515G0814

main91515-G0814

9 parts on this diagram · 1 diagram in section

AIR BAG for Toyota SIENNA

This section contains 9 genuine Toyota parts for the AIR BAG system of the Toyota SIENNA. Key components include: SENSOR ASSY, AIRBAG, SENSOR, AIRBAG, FRONT, SENSOR ASSY, SIDE AIRBAG, RH, SENSOR ASSY, SIDE AIRBAG, LH.
