Toyota SIENNA — ACCELERATOR LINK

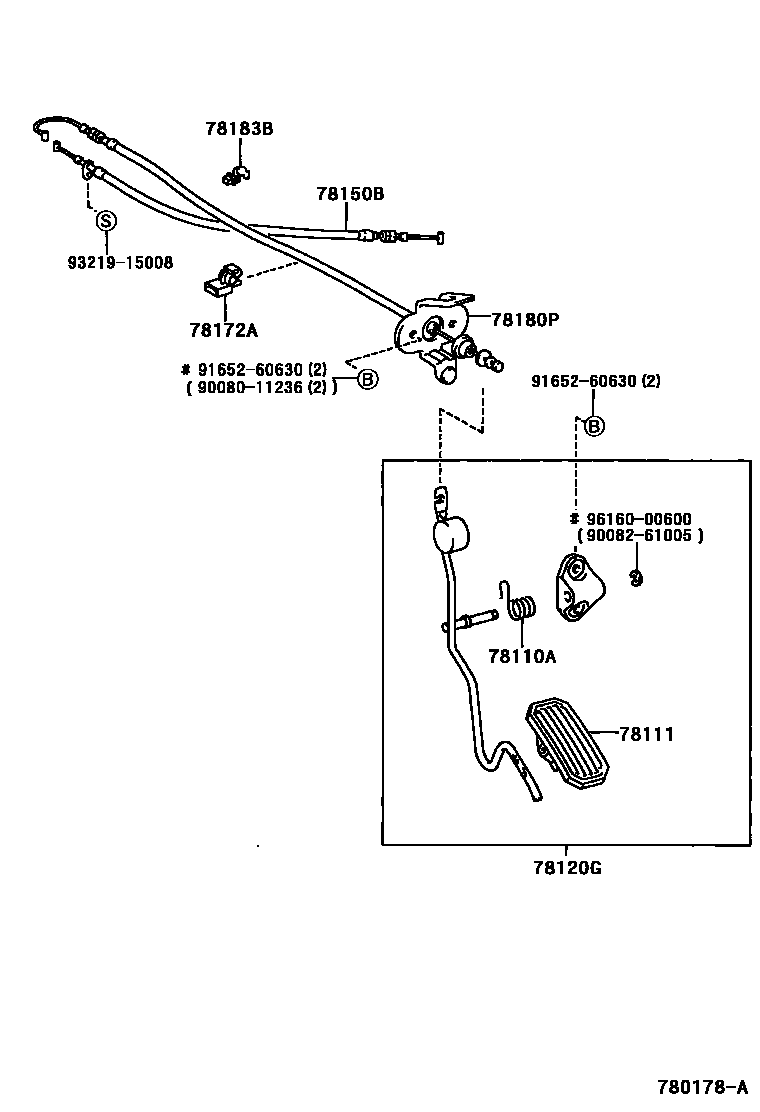

Parts diagram

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90080-50200i199708

78111PEDAL, ACCELERATOR

main78111-06010i199708

78120GROD ASSY, ACCELERATOR PEDAL

main78120-08010i199708

78150BCABLE ASSY, ACCELERATOR AUTO DRIVE

main78150-08010i199708-200008

main78150-08020i200008

78172ABRACKET, ACCELERATOR CONTROL NO.2 ROD, LH

main78172-08010i199708

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-08010i199708

main78180-08020i199708-200008

W(CRUISE CONTROL)

main78180-08030i200008

W(CRUISE CONTROL)

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-08010i199708

9008011236

main90080-11236

9008261005

main90082-61005

9165260630

main91652-60630

9321915008

main93219-15008

9616000600

main96160-00600

12 parts on this diagram · 1 diagram in section

ACCELERATOR LINK for Toyota SIENNA

This section contains 12 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota SIENNA. Key components include: SPRING (FOR ACCELERATOR PEDAL ROD), PEDAL, ACCELERATOR, ROD ASSY, ACCELERATOR PEDAL, CABLE ASSY, ACCELERATOR AUTO DRIVE, BRACKET, ACCELERATOR CONTROL NO.2 ROD, LH.
