Toyota SIENNA — ABS & VSC

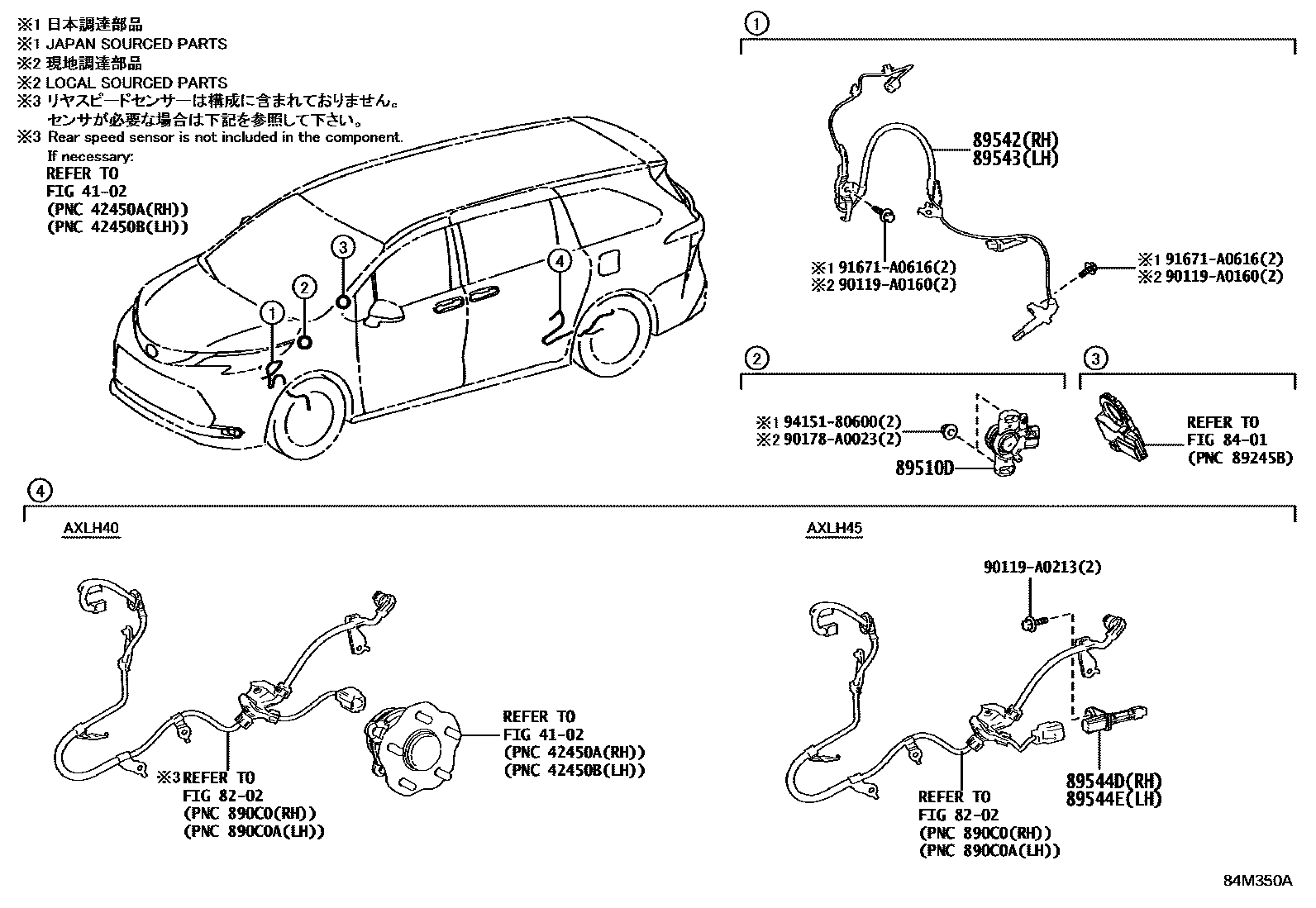

Parts diagram

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-42020i202410

main89510-47030i202011-202410

89542SENSOR, SPEED, FRONT RH

main89542-08060i202410

89543SENSOR, SPEED, FRONT LH

main89543-08060i202410

89544DSENSOR, SKID CONTROL, REAR RH

main89544-0E040i202410-202502

89544ESENSOR, SKID CONTROL, REAR LH

main89544-0E040i202410-202502

90119A0160

main90119-A0160

90119A0213

main90119-A0213

90178A0023

main90178-A0023

91671A0616

main91671-A0616

9415180600

main94151-80600

13 parts on this diagram · 1 diagram in section

ABS & VSC for Toyota SIENNA

This section contains 13 genuine Toyota parts for the ABS & VSC system of the Toyota SIENNA. Key components include: REAR AXLE SHAFT & HUB, WIRING & CLAMP, SWITCH & RELAY & COMPUTER, SENSOR ASSY, BRAKE PEDAL STROKE, SENSOR, SPEED, FRONT RH.
