Toyota SIENNA — SPEAKER

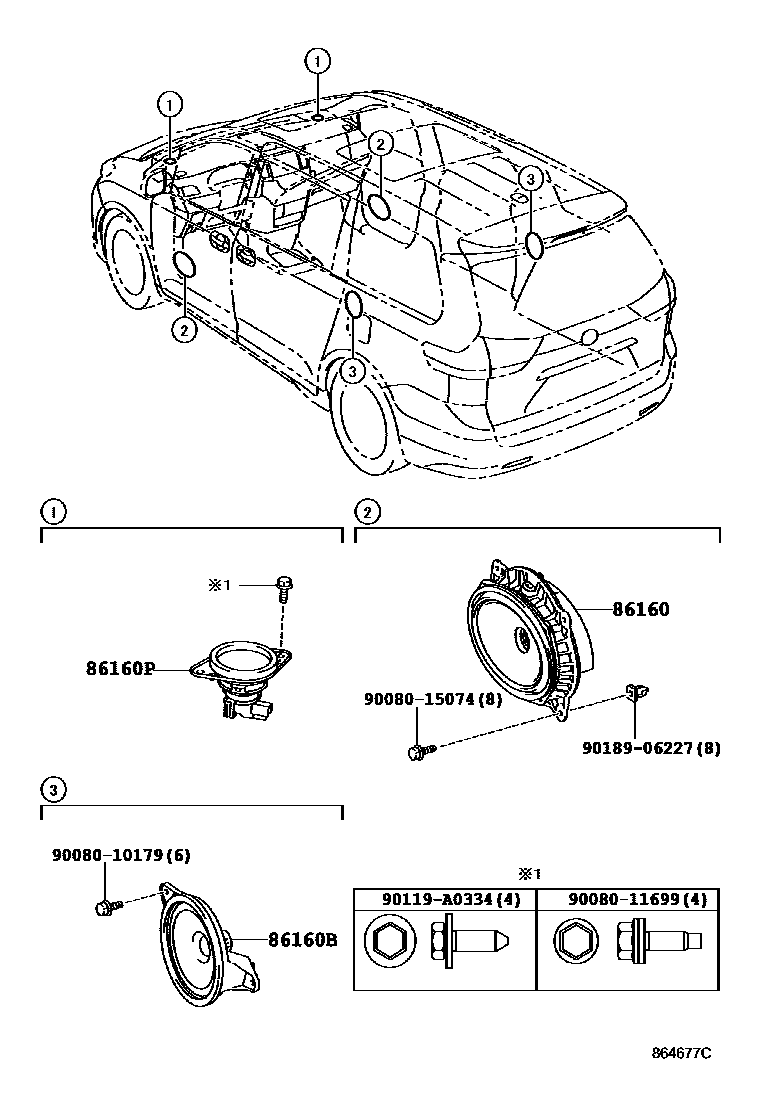

Parts diagram

86160SPEAKER ASSY, FRONT NO.1

main86160-AA420×2i201608-201711

86160BSPEAKER ASSY, REAR

main86160-08170i201409-201608

LH

main86160-08180i201409-201608

RH

86160PSPEAKER ASSY, FRONT NO.2

main86160-0WF61×2i201109-201308

9008010179

main90080-10179

9008011699

main90080-11699

9008015074

main90080-15074

90119A0334

main90119-A0334

9018906227

main90189-06227

8 parts on this diagram · 1 diagram in section

SPEAKER for Toyota SIENNA

This section contains 8 genuine Toyota parts for the SPEAKER system of the Toyota SIENNA. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2.
