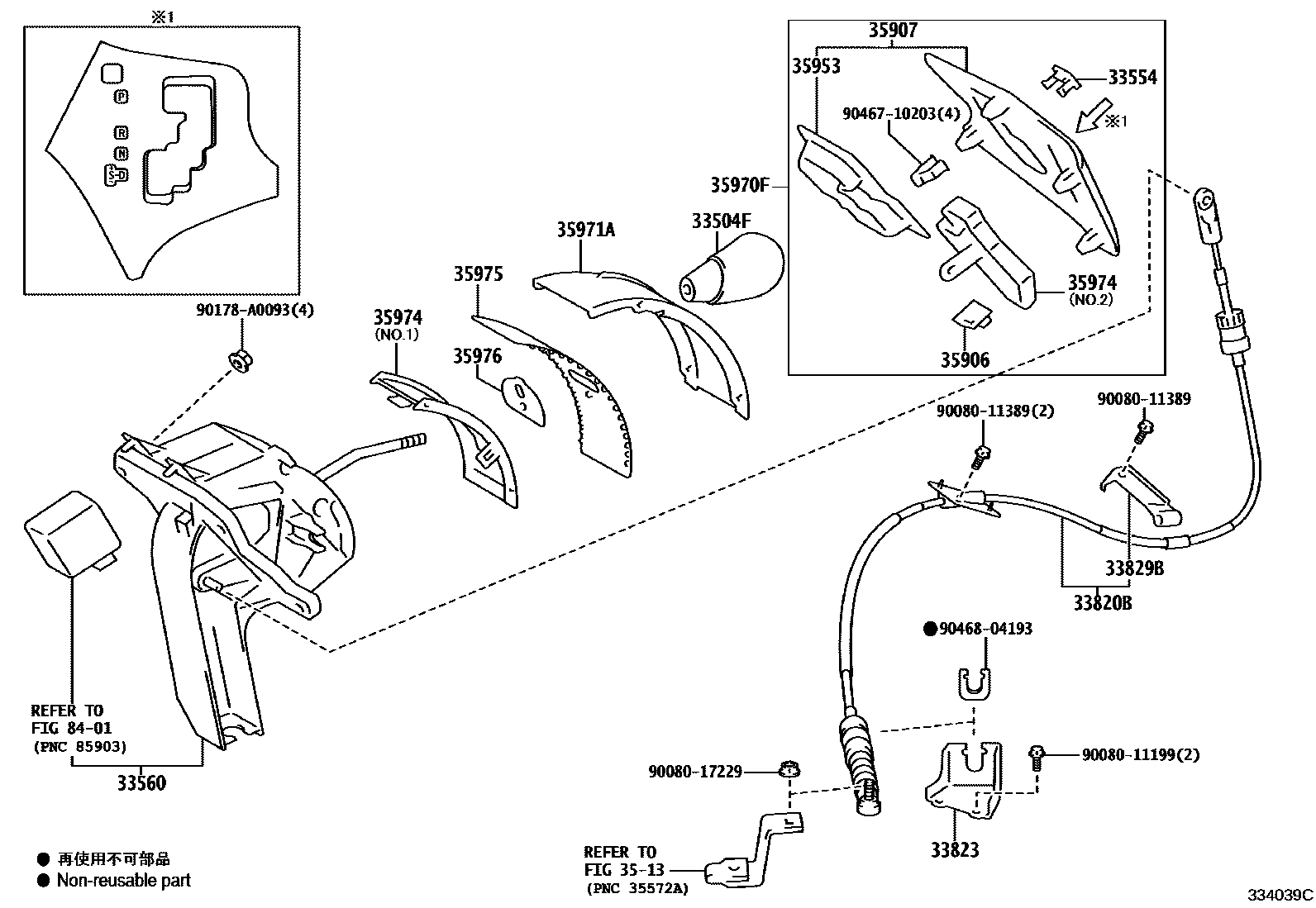

Toyota SIENNA — SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM1#,4#
BLACK,TRIM1#,4#
BLACK/BROWN,TRIM1#,4#
33554CAP, SHIFT LEVER
LT.GRAY,TRIM1#
GREGE,TRIM4#
LT.GRAY,TRIM1#
GREGE,TRIM4#
33560UNIT ASSY, SHIFT LOCK CONTROL
33820BCABLE ASSY, TRANSMISSION CONTROL
33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33829BCLAMP, TRANSMISSION CONTROL CABLE
3513THROTTLE LINK & VALVE LEVER (ATM)
35906WIRE SUB-ASSY, INDICATOR LAMP
35907HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)
LT.GRAY,TRIM1#
GREGE,TRIM4#
LT.GRAY,TRIM1#
GREGE,TRIM4#
35953GUIDE, POSITION INDICATOR LIGHT
35970FHOUSING ASSY, POSITION INDICATOR
LT.GRAY,TRIM1#
GREGE,TRIM4#
LT.GRAY,TRIM1#
GREGE,TRIM4#
35971AHOUSING, POSITION INDICATOR, UPPER
35974HOUSING, POSITION INDICATOR, LOWER
NO.1
NO.2
NO.2
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
8401SWITCH & RELAY & COMPUTER
9008011199
main90080-11199
9008011389
main90080-11389
9008017229
main90080-17229
90178A0093
main90178-A0093
9046710203
main90467-10203
9046804193
main90468-04193
22 parts on this diagram · 3 diagrams in section
SHIFT LEVER & RETAINER for Toyota SIENNA
This section contains 26 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota SIENNA. Key components include: KNOB SUB-ASSY, SHIFT LEVER, CAP, SHIFT LEVER, UNIT ASSY, SHIFT LOCK CONTROL, CABLE ASSY, TRANSMISSION CONTROL, BRACKET, TRANSMISSION CONTROL CABLE, NO.1.
