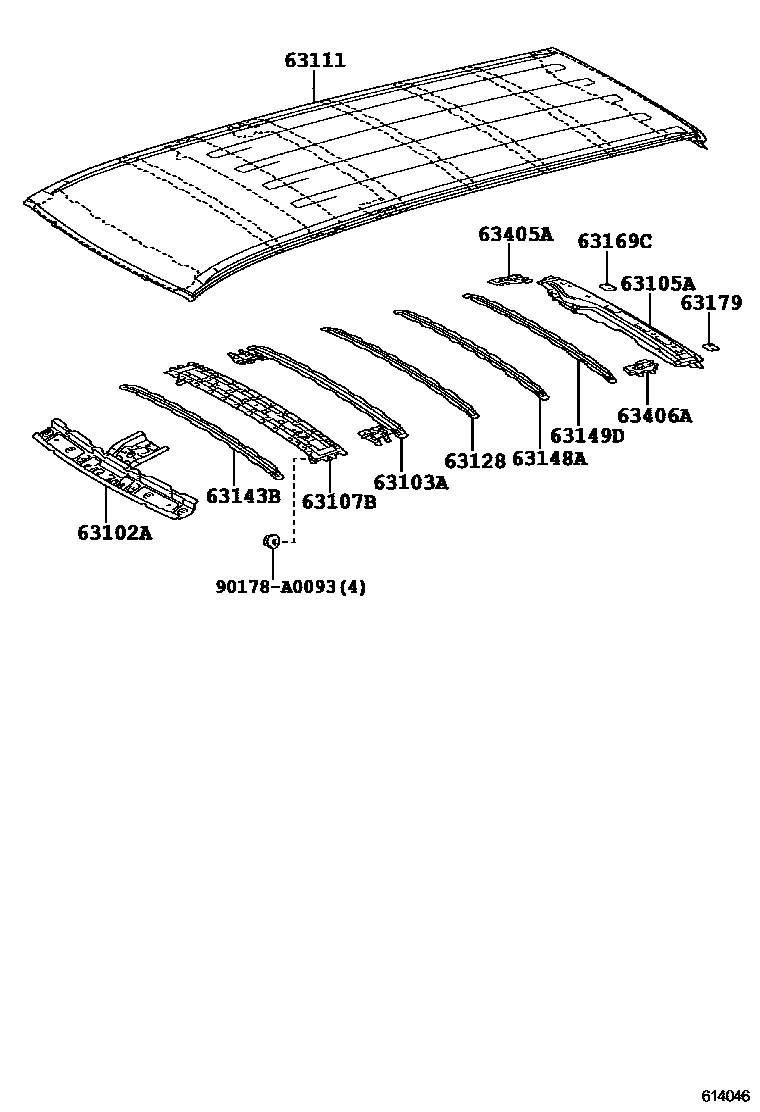

Toyota SIENNA — ROOF PANEL & BACK PANEL

0001 1ROOF PANEL 0002 1ROOF PANEL 0003 1ROOF PANEL 0004 1SLIDING ROOF(SINGLE ROOF) 0005 1SLIDING ROOF(DUAL ROOF) 0006 1SLIDING ROOF(SINGLE ROOF) 0007 1SLIDING ROOF(DUAL ROOF) 0008 1ROOF RACK

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-08020iASL30201109-201308

main63132-08020iGSL3#201109-201607

sub63132-08021

main63132-08021iGSL3#201608-202009

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-08010iGSL35201109-202009

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-08020iGSL3#201109-202009

63107BREINFORCEMENT SUB-ASSY, ROOF PANEL, RH

main63107-08010iASL30201109-201711

main63107-08020iGSL3#201711-202009

63111PANEL, ROOF

main63111-08060iASL30201109-201308

main63111-08130iGSL35201608-202009

main63111-08900iGSL3#201109-202009

main63111-08901iGSL3#201409-201608

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-08010iASL30201109-202009

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-08030iASL30201109-201308

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-08010iGSL35201109-202009

63149DREINFORCEMENT, ROOF PANEL, NO.8

main63149-08010iGSL3#201109-202009

63169CRETAINER, ROOF REINFORCEMENT, NO.2

main63169-0E020iASL30201109-202009

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-0E020iGSL3#201109-202009

63405ASUPPORT SUB-ASSY, ROOF RACK, REAR

main63405-08010iASL30201109-202009

63406ASUPPORT SUB-ASSY, ROOF RACK, REAR LH

main63406-08010iASL30201109-202009

90178A0093

main90178-A0093

14 parts on this diagram · 8 diagrams in section
