Toyota SIENNA — PARTIAL ENGINE ASSEMBLY

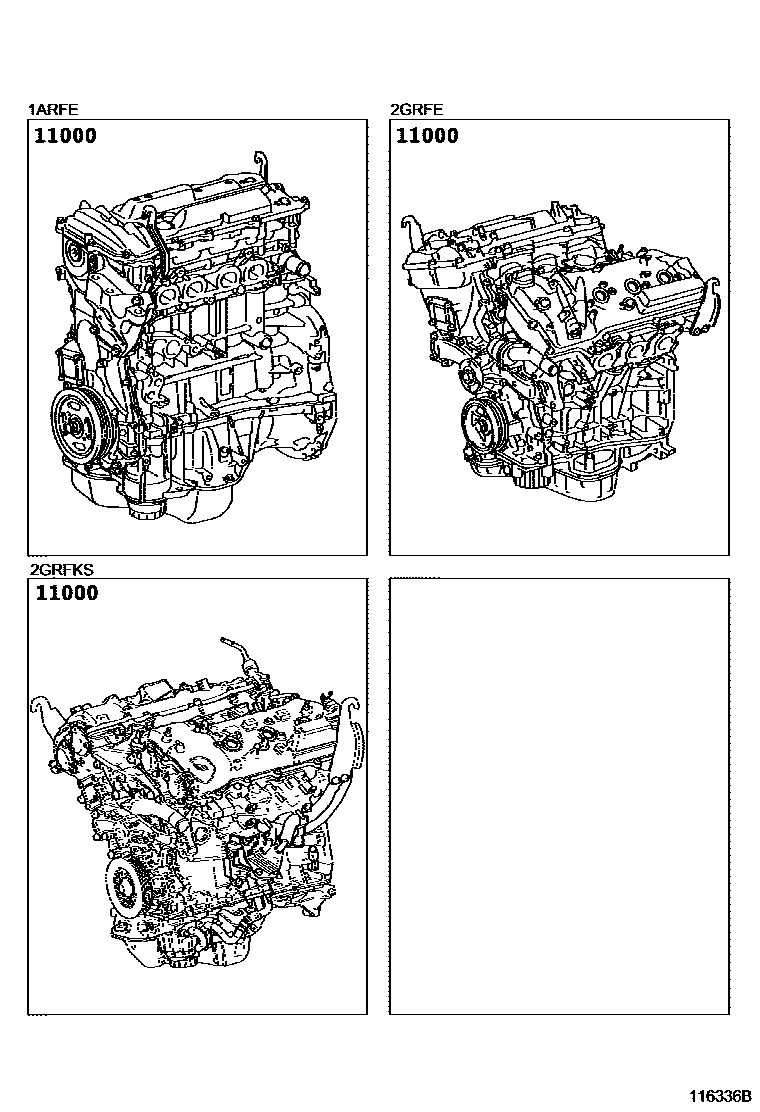

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-0P202i201109-201409
sub19000-31A00
sub12180-0P021
main19000-0P520i201608-201711
sub12601-0P011
sub90467-06200
main19000-0P521i201903-202009
main19000-0V050i201109-201111
(L)
main19000-0V051i201111-201201
(L)
main19000-0V052i201201-201308
(L)
main19000-36190i201109-201110
(J)
main19000-36340i201110-201201
(J)
main19000-36341i201201-201308
(J)

1 parts on this diagram · 1 diagram in section
