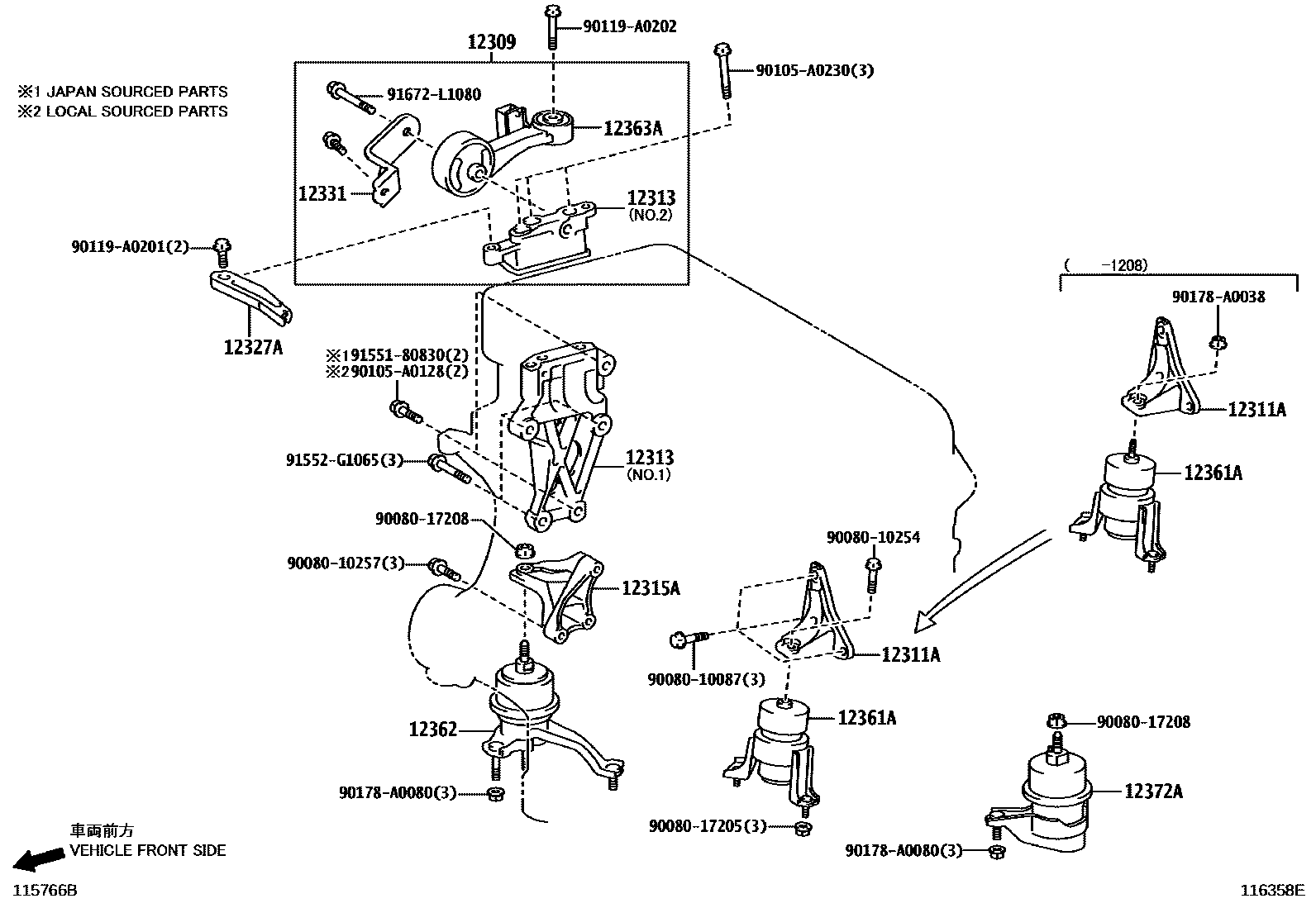

Toyota SIENNA — MOUNTING

0001 1 0002 1 0003 1

12309ROD SUB-ASSY, ENGINE MOVING CONTROL

main12309-0V041i1ARFE..ASL30201109-201308

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-0P070i2GRFE..GSL3#201109-201608

main12311-0P170i2GRFKS..GSL3#201608-202009

main12311-36020i1ARFE..ASL30201109-201308

12313BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)

main12313-0P030i2GRFE..GSL3#201109-202009

main12313-0V040i1ARFE..ASL30201109-201308

*212,NO.1,(L)

main12313-0V050i1ARFE..ASL30201109-201308

NO.2:REFER ILLUST.

main12313-36010i1ARFE..ASL30201109-201308

*107,NO.1,*212,NO.1,(J)

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-0P031i2GRFE..GSL3#201109-201608

main12315-0P100i2GRFKS..GSL3#201608-202009

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-0P020i2GRFE..GSL3#201211-202009

main12319-0V020i1ARFE..ASL30201109-201308

main12319-31010i2GRFE..GSL30201109-201210

12327ASTAY, ENGINE MOUNTING, NO.2 RH

main12327-0P010i2GRFE..GSL3#201109-201608

NO.1

main12327-0P080i2GRFKS..GSL3#201608-202009

NO.2

main12327-0P100i2GRFKS..GSL3#201608-202009

NO.1

main12327-0V010i1ARFE..ASL30201109-201308

main12327-31090i2GRFE..GSL3#201109-201608

NO.2

12331STAY, ENGINE MOUNTING, NO.3 RH

main12331-0P020i2GRFKS..GSL3#201109-202009

main12331-0V010i1ARFE..ASL30201109-201308

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-0V030i1ARFE..ASL30201109-201208

main12361-0V031i1ARFE..ASL30201208-201308

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-0P050i2GRFE..GSL30201109-201305

sub12362-0P051

main12362-0P051i2GRFKS..GSL3#201306-202009

main12362-0V040i1ARFE..ASL30201109-201308

12363AROD, ENGINE MOVING CONTROL

main12363-0P101i2GRFE..GSL30201109-201409

main12363-0P111i2GRFE..GSL35201308-201409

main12363-0P170i2GRFE..GSL30201409-201608

main12363-0P180i2GRFE..GSL35201409-201608

main12363-0P190i2GRFKS..GSL30201608-202009

main12363-0P200i2GRFKS..GSL35201608-202009

main12363-0V041i1ARFE..ASL30201109-201308

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0H090i1ARFE..ASL30201109-201308

main12372-0P010i2GRFE..GSL3#201109-202009

9008010087

main90080-10087

9008010254

main90080-10254

9008010257

main90080-10257

9008017205

main90080-17205

9008017208

main90080-17208

90105A0128

main90105-A0128

90105A0230

main90105-A0230

90119A0201

main90119-A0201

90119A0202

main90119-A0202

90178A0038

main90178-A0038

90178A0080

main90178-A0080

9155180830

main91551-80830

91552G1065

main91552-G1065

91672L1080

main91672-L1080

25 parts on this diagram · 3 diagrams in section
