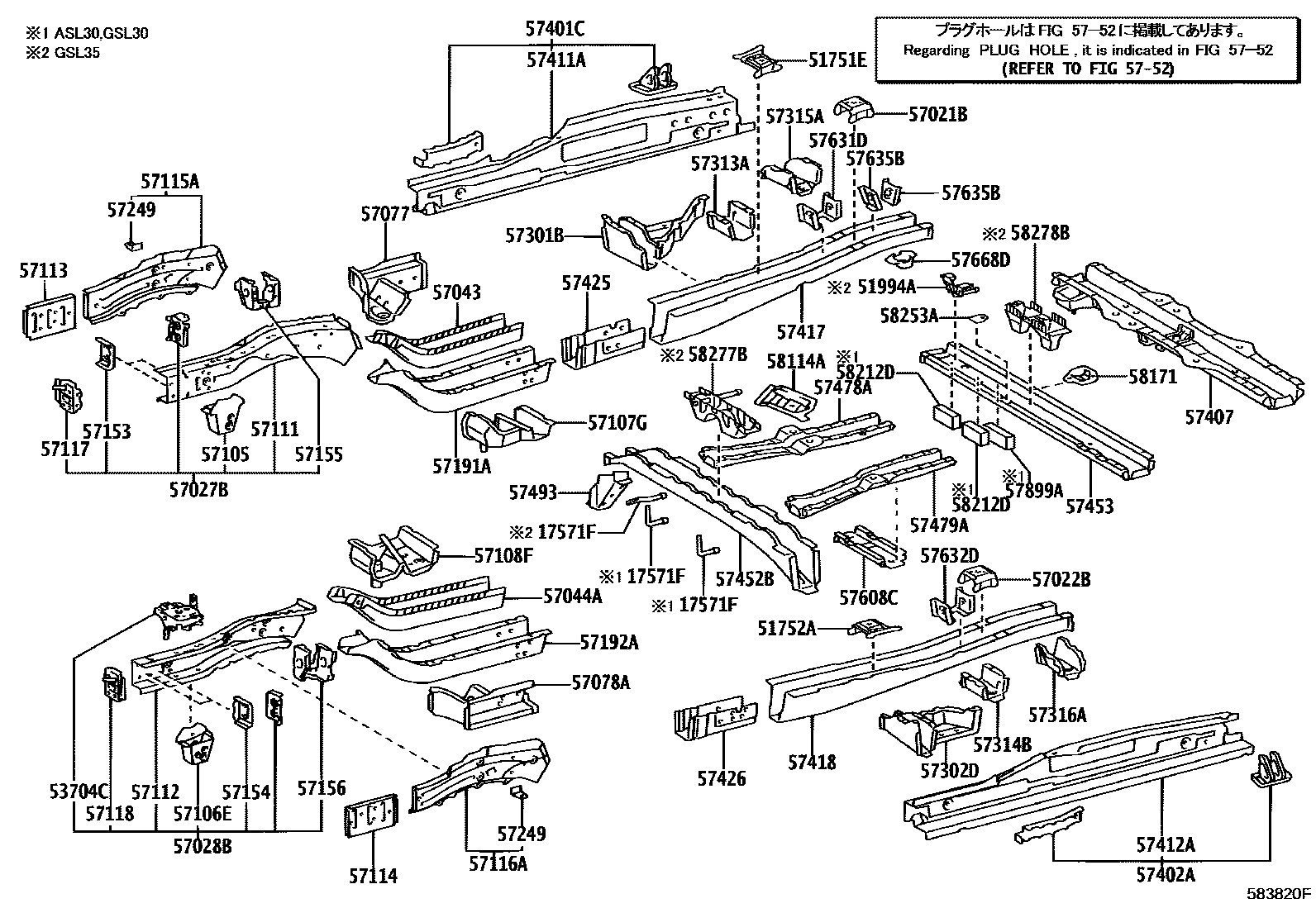

Toyota SIENNA — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1FLOOR MEMBER 0002 1FLOOR MEMBER 0003 1FLOOR MEMBER 0004 1FLOOR MEMBER 0005 1FLOOR MEMBER 0006 1FLOOR PANEL 0007 1FLOOR PANEL

17571FBRACKET, EXHAUST PIPE SUPPORT

main17571-20171×2i2GRFE..GSL30201409-201608

main17571-20180i2GRFKS..GSL35201711-202009

51751EBRACKET, BODY SUPPORT, NO.1 RH

main51751-08010iASL30201109-201308

51752ABRACKET, BODY SUPPORT, NO.1 LH

main51752-08010iGSL3#201711-202009

51994AHANGER, EXHAUST PIPE, SUPPORT, NO.4

main51994-08010iGSL35201308-201409

53704CSUPPORT SUB-ASSY, BATTERY, LH

main53704-08021iASL30201109-201308

main53704-08030iGSL3#201409-201608

main53704-08040iGSL3#201608-201711

57021BBRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH

main57021-08010iASL30201109-201308

57022BBRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH

main57022-08010iGSL3#201608-201711

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-08011iASL30201109-201308

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-08011iASL30201109-201308

main57028-08020iGSL3#201409-201608

main57028-08030iGSL3#201608-201711

57043REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-08010iASL30201109-201308

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-08010iASL30201109-201308

57077BOX SUB-ASSY, TORQUE, FRONT RH

main57077-08022iASL30201109-201308

57078ABOX SUB-ASSY, TORQUE, FRONT LH

main57078-08022iASL30201109-201308

main57078-08030iGSL3#201409-201608

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-06010iASL30201109-201308

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57106-06010iASL30201109-201308

main57106-08010iGSL3#201409-201608

main57106-08030iGSL3#201608-201711

57107GBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH

main57107-08021iASL30201109-201308

57108FBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH

main57108-08021iASL30201109-201308

57111MEMBER, FRONT SIDE, RH

main57111-06021iASL30201109-201308

57112MEMBER, FRONT SIDE, LH

main57112-08021iASL30201109-201308

main57112-08022iGSL3#201608-201711

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-08020iASL30201109-201308

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-08020iASL30201109-201308

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57025-08010iASL30201109-201308

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57026-08010iASL30201109-201308

main57026-08020iGSL3#201409-201608

57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH

main57117-08020iASL30201109-201308

57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH

main57118-08020iASL30201109-201308

57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH

main57153-08020×2iASL30201109-201308

57154REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH

main57154-08020×2iASL30201109-201308

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57155-08020iASL30201109-201308

57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57156-08020iASL30201109-201308

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-08010iASL30201109-201308

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-08010iASL30201109-201308

57249BRACKET, FLEXIBLE HOSE, NO.1

main57249-06010iASL30201109-201308

57301BOUTRIGGER SUB-ASSY, NO.1 RH

main57301-08011iASL30201109-201308

57302DOUTRIGGER SUB-ASSY, NO.1 LH

main57302-08011iASL30201109-201308

57313AOUTRIGGER, NO.2 RH

main57313-08010iASL30201109-201308

57314BOUTRIGGER, NO.2 LH

main57304-08010iASL30201109-201308

57315AOUTRIGGER SUB-ASSY, NO.3 RH

main57315-08010iASL30201109-201308

57316AOUTRIGGER SUB-ASSY, NO.3 LH

main57306-08010iGSL3#201409-201510

main57306-08011iGSL3#201711-202009

57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-08021iGSL3#201608-201711

57402AMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-08031iASL30201109-201308

main57402-08040iGSL3#201608-201711

57407CROSSMEMBER SUB-ASSY, CENTER FLOOR, NO.1

main57407-08040iGSL30201608-201711

main57407-08050iGSL35201711-202009

57411AMEMBER, FLOOR SIDE, INNER RH

main57411-08021iGSL3#201409-201608

57412AMEMBER, FLOOR SIDE, INNER LH

main57412-08031iASL30201109-201308

main57412-08040iGSL3#201409-201608

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-08020iASL30201109-201308

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-08020iASL30201109-201308

main57418-08021iGSL3#201505-201608

57425REINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-08020iASL30201109-201308

57426REINFORCEMENT, FRONT FLOOR, NO.2 LH

main57404-08030iGSL3#201608-201711

57452BMEMBER, FRONT FLOOR CROSS, NO.2

main57452-08021iASL30201109-201308

main57452-08022iGSL3#201711-202009

57453MEMBER, FRONT FLOOR CROSS, NO.3

main57453-08021iGSL30201608-201711

main57453-08031iGSL35201308-201409

57478AREINFORCEMENT, FRONT FLOOR NO.2 CROSSMEMBER, RH

main57478-08010iASL30201109-201308

57479AREINFORCEMENT, FRONT FLOOR NO.2 CROSSMEMBER, LH

main57479-08010iASL30201109-201308

57493BRACE, FRONT FLOOR CROSS, NO.2 RH

main57493-08010iASL30201109-201308

5752

57608CBRACKET SUB-ASSY, FUEL TANK MOUNTING

main57608-08020iASL30201109-201308

main57608-08021iGSL3#201408-201409

57631DREINFORCEMENT, REAR FLOOR SIDE MEMBER, FRONT RH

main57631-08010iGSL3#201711-202009

57632DREINFORCEMENT, REAR FLOOR SIDE MEMBER, FRONT LH

main57632-08020iASL30201109-201308

57635BREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR RH

main57635-08030×2iASL30201109-201308

57668DBRACKET, SPARE WHEEL CARRIER, FRONT

main57668-08020iASL30201109-201308

57899ASEAL, REAR FLOOR, REAR

main57899-08010iASL30201109-201308

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-08010iASL30201109-201308

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-08020iASL30201109-201308

58212DSEAL, CENTER FLOOR

main58212-08010×2iASL30201109-201308

58253ABRACKET, PARKING CABLE CLAMP

main58253-08020iASL30201109-201308

58277BREINFORCEMENT, DRIVE SHAFT CENTER SUPPORT

main58277-08020iGSL35201308-201409

58278BREINFORCE, DRIVE SHAFT CENTER SUPPORT, NO.2

main58278-08011iGSL35201308-201409

65 parts on this diagram · 7 diagrams in section
