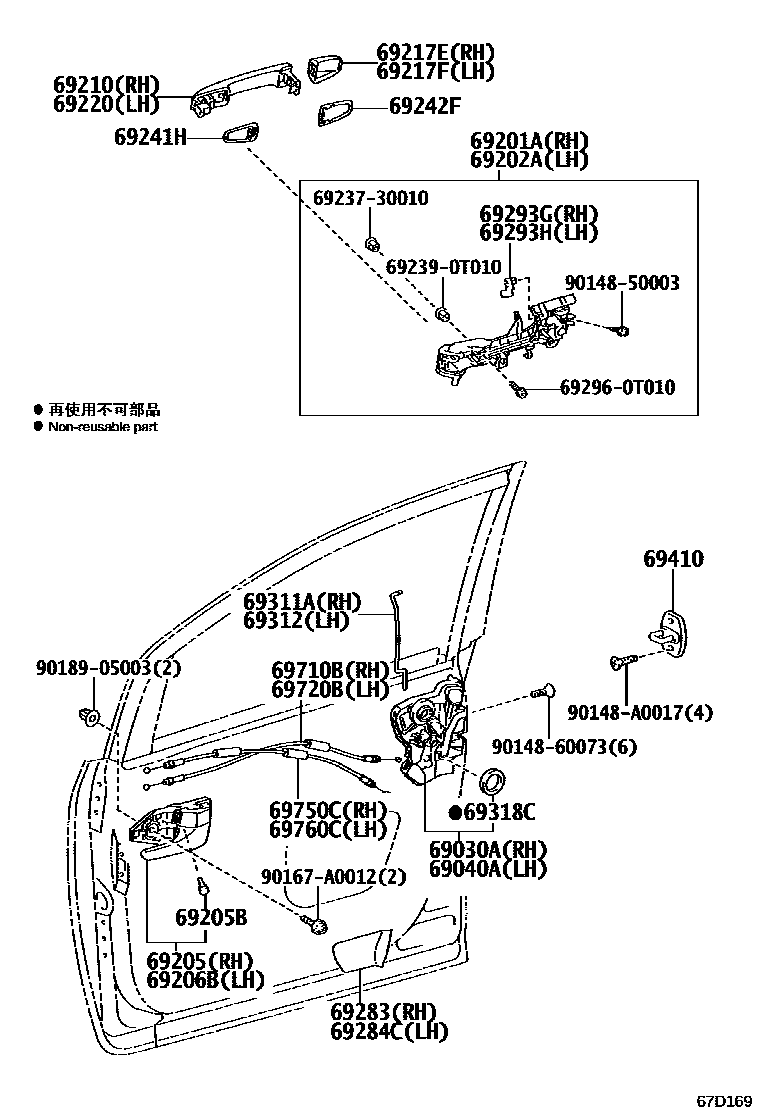

Toyota SIENNA — FRONT DOOR LOCK & HANDLE
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
LT.GRAY,TRIM1#
GREGE,TRIM4#
BLACK,TRIM1#,4#
LT.GRAY,TRIM1#
GREGE,TRIM4#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
LT.GRAY,TRIM1#
GREGE,TRIM4#
BLACK,TRIM1#,4#
LT.GRAY,TRIM1#
GREGE,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATED
SUPER WHITE 2,040
GRAY M.M.,1H1
SILVER ME.,1D6
BLACK,202
DK. RED M.M.,3Q3
BEIGE ME.,4T8
OLIVE M.M.,6T7
DK. TEAL M.M.,785
GRAYISH BLUE M.M.,8V5
WHITE PEARL CS.,070
GRAY M.M.,1H1
SILVER ME.,1D6
SILVER ME.,1J9
BLACK,202
ATTITUDE BLACK MC.,218
DK. RED M.M.,3Q3
BEIGE ME.,4T8
DARK SHERRY M.M.,4W4
LT.YELLOW M.M.,5B2
OLIVE M.M.,6T7
ALUMINA JADE ME.,6W4
DK.BLUE M.M.,8W6
GRAYISH BLUE M.M.,8V5
LT.BLUE ME.,8S4
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
*CR
SUPER WHITE 2,040
GRAY M.M.,1H1
SILVER ME.,1D6
BLACK,202
DK. RED M.M.,3Q3
BEIGE ME.,4T8
OLIVE M.M.,6T7
DK. TEAL M.M.,785
GRAYISH BLUE M.M.,8V5
WHITE PEARL CS.,070
GRAY M.M.,1H1
SILVER ME.,1D6
SILVER ME.,1J9
BLACK,202
ATTITUDE BLACK MC.,218
DK. RED M.M.,3Q3
BEIGE ME.,4T8
DARK SHERRY M.M.,4W4
LT.YELLOW M.M.,5B2
OLIVE M.M.,6T7
ALUMINA JADE ME.,6W4
DK.BLUE M.M.,8W6
GRAYISH BLUE M.M.,8V5
LT.BLUE ME.,8S4
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
*CR
SUPER WHITE 2,040
GRAY M.M.,1H1
SILVER ME.,1D6
BLACK,202
DK. RED M.M.,3Q3
BEIGE ME.,4T8
OLIVE M.M.,6T7
DK. TEAL M.M.,785
GRAYISH BLUE M.M.,8V5
WHITE PEARL CS.,070
GRAY M.M.,1H1
SILVER ME.,1D6
SILVER ME.,1J9
BLACK,202
ATTITUDE BLACK MC.,218
DK. RED M.M.,3Q3
BEIGE ME.,4T8
DARK SHERRY M.M.,4W4
LT.YELLOW M.M.,5B2
OLIVE M.M.,6T7
ALUMINA JADE ME.,6W4
DK.BLUE M.M.,8W6
GRAYISH BLUE M.M.,8V5
LT.BLUE ME.,8S4
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PLATED
SUPER WHITE 2,040
GRAY M.M.,1H1
SILVER ME.,1D6
BLACK,202
DK. RED M.M.,3Q3
BEIGE ME.,4T8
OLIVE M.M.,6T7
DK. TEAL M.M.,785
GRAYISH BLUE M.M.,8V5
WHITE PEARL CS.,070
GRAY M.M.,1H1
SILVER ME.,1D6
SILVER ME.,1J9
BLACK,202
ATTITUDE BLACK MC.,218
DK. RED M.M.,3Q3
BEIGE ME.,4T8
DARK SHERRY M.M.,4W4
LT.YELLOW M.M.,5B2
OLIVE M.M.,6T7
ALUMINA JADE ME.,6W4
DK.BLUE M.M.,8W6
GRAYISH BLUE M.M.,8V5
LT.BLUE ME.,8S4
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
LT.GRAY,TRIM1#
BLACK,TRIM1#,4#
GREGE,TRIM4#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
LT.GRAY,TRIM1#
BLACK,TRIM1#,4#
GREGE,TRIM4#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
692390T010PIN, BACK DOOR OUTSIDE HANDLE
main69239-0T010
692960T010SCREW, DOOR INSIDE HANDLE
main69296-0T010
9014850003
main90148-50003
9014860073
main90148-60073
90148A0017
main90148-A0017
90167A0012
main90167-A0012
9018905003
main90189-05003
33 parts on this diagram · 2 diagrams in section
