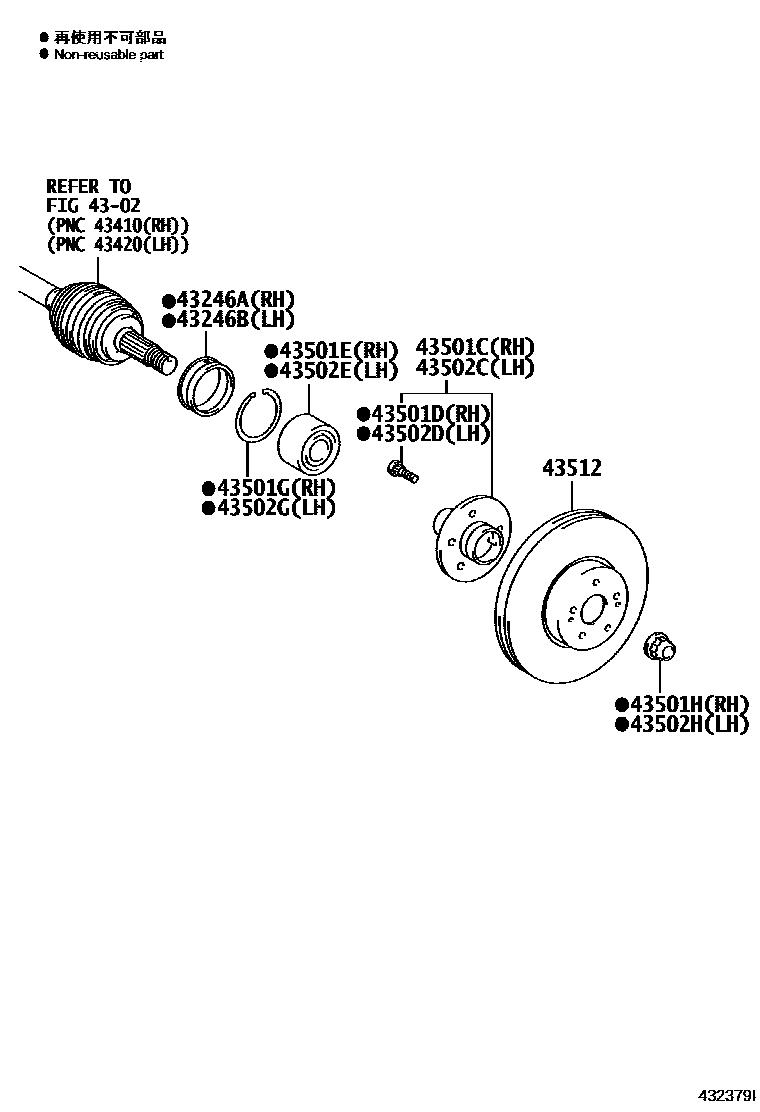

Toyota SIENNA — FRONT AXLE HUB

4302

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-48010iASL30201109-201408

sub43246-48011

main43246-48011iGSL3#201409-202009

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-48010iASL30201109-201408

sub43246-48011

main43246-48011iGSL3#201409-202009

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-08030iASL30201109-202009

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iASL30201109-202009

43501EBEARING (FOR FRONT AXLE HUB RH)

main90369-A0002iASL30201109-202009

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90520-79002iASL30201109-202009

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90080-17238iASL30201109-202009

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-08030iASL30201109-202009

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iASL30201109-202009

43502EBEARING (FOR FRONT AXLE HUB LH)

main90369-A0002iASL30201109-202009

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90520-79002iASL30201109-202009

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90080-17238iASL30201109-202009

43512DISC, FRONT

main43512-0E030iASL30201109-202009

14 parts on this diagram · 1 diagram in section
