Toyota SIENNA — FRAME

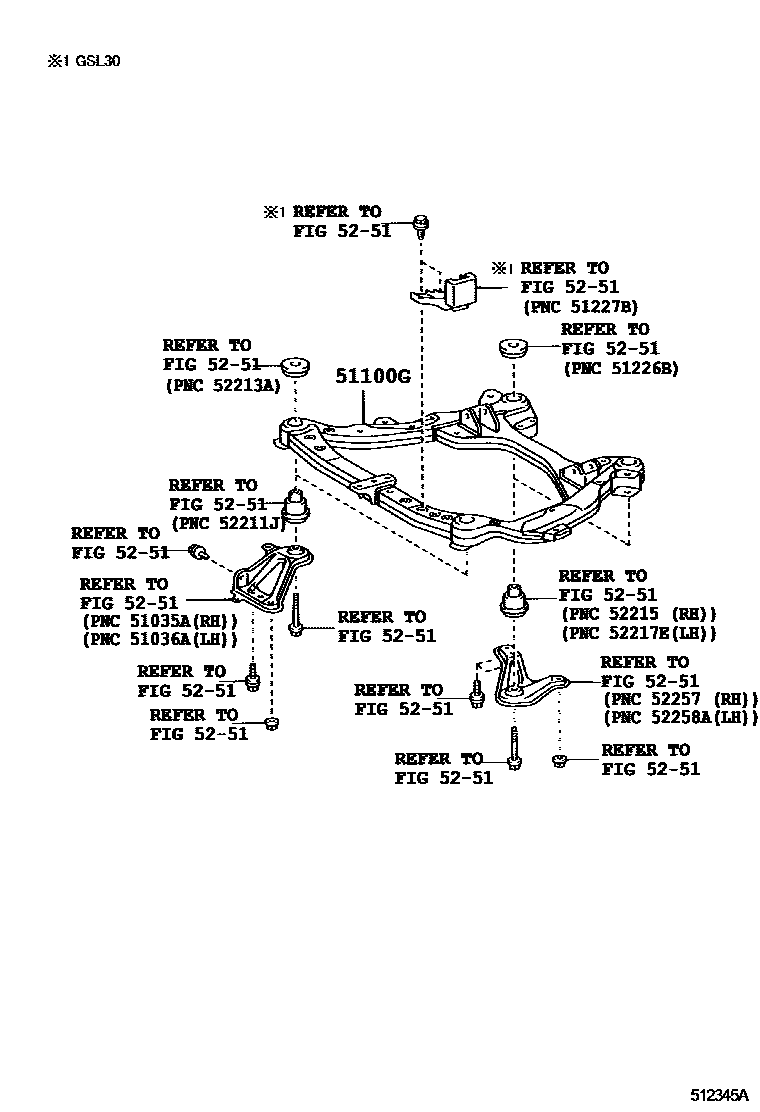

Parts diagram
51100GFRAME ASSY, FRONT
main51100-08040i201109-201304
sub51100-08041
main51100-08041i201305-201402
sub51100-08042
sub90119-08D06
main51100-08042i201402-201409
main51100-08050i201109-201301
sub51100-08051
main51100-08051i201302-201304
sub51100-08052
main51100-08052i201305-201402
sub51100-08053
sub90119-08D06
main51100-08053i201402-201409
main51100-08080i201409-201508
sub51100-08081
main51100-08081i201509-202009
main51100-08090i201409-201508
sub51100-08091
main51100-08091i201509-202009
5251

2 parts on this diagram · 1 diagram in section
