Toyota SIENNA — CONSOLE BOX & BRACKET

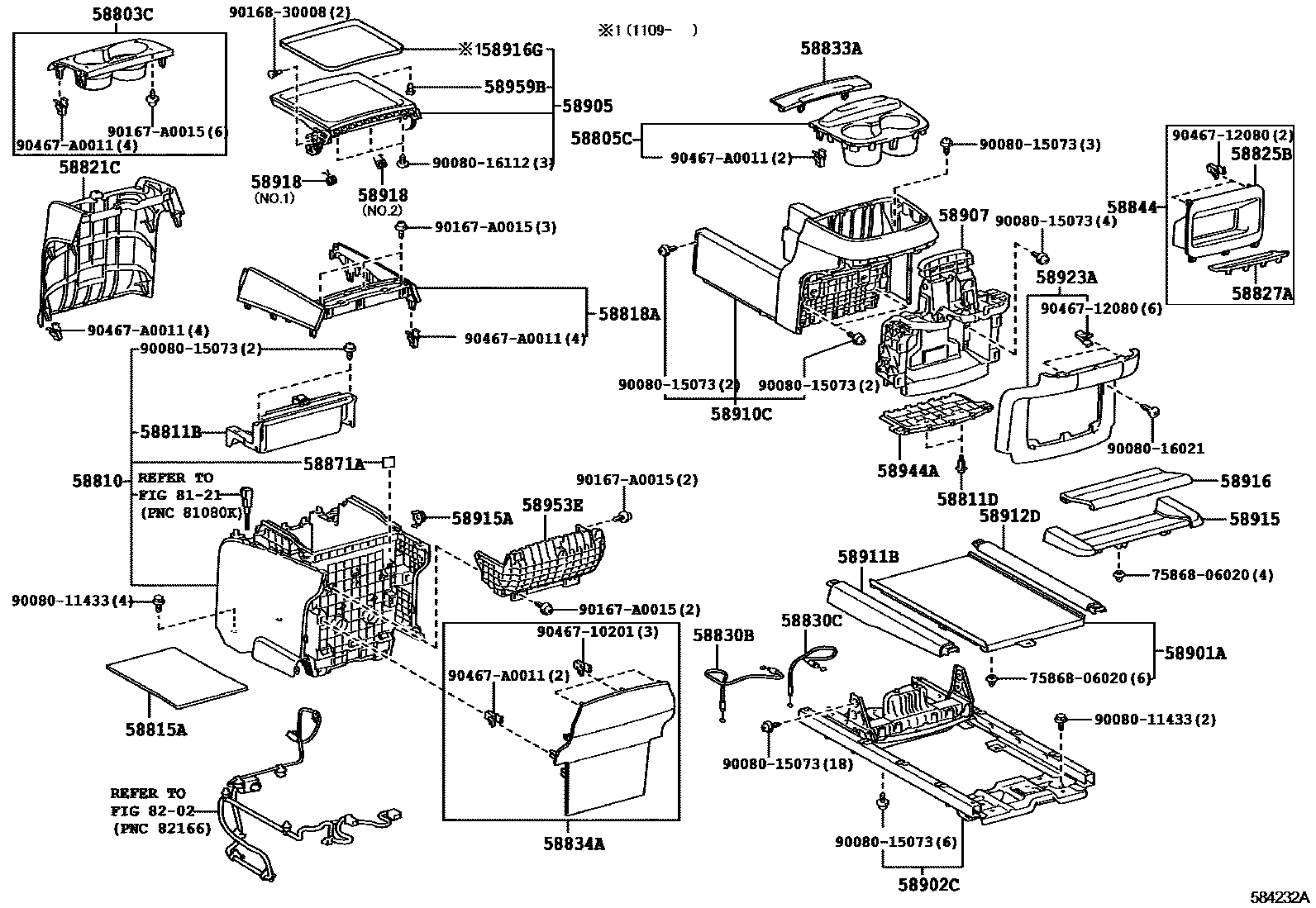

Parts diagram
58803CBOX SUB-ASSY, CONSOLE CUP HOLDER
main58803-08020-E0i201109-201409
DARK BROWN,TRIM1#,4#
sub58803-08050
main58803-08040-E0i201608-201711
BROWN,TRIM1#,4#
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
main58805-08010-E0i201109-201409
DARK BROWN,TRIM1#,4#
main58805-08040-E0i201409-201608
BROWN,TRIM1#,4#
58810CONSOLE ASSY
main58801-08020-B0i201109-201207
LT.GRAY,TRIM1#
main58801-08020-E0i201109-201207
GREGE,TRIM4#
main58801-08021-B0i201208-201409
LT.GRAY,TRIM1#
main58801-08021-E0i201208-201409
GREGE,TRIM4#
main58801-08040-C0i201409-201608
BLACK,TRIM1#,4#
58811BBOX, CONSOLE
main58802-08010i201109-201207
main58802-08011i201608-201711
58811DCLIP(FOR CONSOLE BOX)
main90467-A0002-B0×2i201109-201409
LT.GRAY,TRIM1#
main90467-A0002-C0×2i201409-201608
BLACK,TRIM1#,4#
main90467-A0002-C4×2i201706-201711
BLACK,TRIM1#,4#
main90467-A0002-E0×2i201109-201409
GREGE,TRIM4#
58815ACARPET, CONSOLE BOX
main58815-08010i201608-201711
58818ACOVER, CONSOLE BOX, FR
main58818-08010-B0i201109-201409
LT.GRAY,TRIM1#
main58818-08010-E0i201109-201409
GREGE,TRIM4#
main58818-08020-C0i201409-201608
BLACK,TRIM1#,4#
58821CPANEL, CONSOLE, UPPER
main58821-08020-B0i201109-201409
LT.GRAY,TRIM1#
main58821-08020-E1i201109-201409
GREGE,TRIM4#
main58821-08050-C0i201409-201608
BLACK,TRIM1#,4#
58825BPOCKET, CONSOLE BOX
main58826-08020-B0i201109-201409
LT.GRAY,TRIM1#
main58826-08020-C0i201409-201608
BLACK,TRIM1#,4#
main58826-08020-E0i201109-201409
GREGE,TRIM4#
58827AGARNISH, CONSOLE BOX POCKET
main58827-08010-B0i201109-201409
LT.GRAY,TRIM1#
main58827-08010-C0i201409-201608
BLACK,TRIM1#,4#
main58827-08010-E0i201109-201409
GREGE,TRIM4#
58830BCABLE ASSY, CONSOLE BOX LOCK CONTROL, NO.1
main58830-08010i201711-202009
58830CCABLE ASSY, CONSOLE BOX LOCK CONTROL, NO.2
main58830-08020i201109-201409
58833ACOVER, CONSOLE, UPPER
main58833-08010i201409-201608
58834ACOVER, CONSOLE, LOWER
main58834-08010-B0i201109-201409
LT.GRAY,TRIM1#
main58834-08010-E0i201109-201409
GREGE,TRIM4#
main58834-08020-C0i201608-201711
BLACK,TRIM1#,4#
58844BEZEL, CONSOLE BOX
main58844-08020-B0i201109-201409
LT.GRAY,TRIM1#
main58844-08020-C0i201409-201608
BLACK,TRIM1#,4#
main58844-08020-E0i201109-201409
GREGE,TRIM4#
main58844-08030-C0i201711-202009
BLACK,TRIM1#,4#
58871ACUSHION, CONSOLE BOX, NO.2
main58871-08020×2i201711-202009
58901ABOX SUB-ASSY, CONSOLE, REAR
main58901-08010-B0i201109-201409
GRAY,TRIM1#
main58901-08010-C0i201409-201608
BLACK,TRIM1#,4#
main58901-08010-E0i201109-201409
ASH BROWN,TRIM4#
58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING
main58902-08010i201109-201409
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
main58905-08011i201109-201409
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58907-08010i201109-201409
58910CBOX ASSY, CONSOLE, REAR
main58910-08010-B0i201109-201409
LT.GRAY,TRIM1#
main58910-08010-E0i201109-201409
GREGE,TRIM4#
main58910-08030-C0i201409-201608
BLACK,TRIM1#,4#
main58910-08050-C0i201711-202009
BLACK,TRIM1#,4#
58911BPANEL, BOX, NO.1
main58911-08010-B0i201109-201409
GRAY,TRIM1#
main58911-08010-C0i201711-202009
BLACK,TRIM1#,4#
main58911-08010-E0i201109-201409
ASH BROWN,TRIM4#
58912DPANEL, BOX, NO.2
main58912-08010-B0i201109-201409
GRAY,TRIM1#
main58912-08010-C0i201608-201711
BLACK,TRIM1#,4#
main58912-08010-E0i201109-201409
ASH BROWN,TRIM4#
58915PANEL, BOX BOTTOM
main58819-08010-B0i201109-201409
GRAY,TRIM1#
main58819-08010-C0i201409-201608
BLACK,TRIM1#,4#
main58819-08010-E0i201109-201409
ASH BROWN,TRIM4#
58915ADAMPER, CONSOLE BOX, REAR
main58915-08030×2i201109-201409
58916MAT, BOX BOTTOM
main58916-08020-B0i201109-201409
GRAY,TRIM1#
main58916-08020-C0i201409-201608
BLACK,TRIM1#,4#
main58916-08020-E0i201109-201409
ASH BROWN,TRIM4#
58916GMAT, BOX BOTTOM, NO.2
main58916-08040i201711-202009
58918SPRING, CONSOLE BOX STOPPER
main58949-08010i201109-201409
NO.1
main58949-08020i201711-202009
NO.2
58923APANEL, CONSOLE REAR END
main58904-08010-B0i201109-201409
LT.GRAY,TRIM1#
main58904-08010-E0i201109-201409
GREGE,TRIM4#
main58904-08020-C0i201409-201608
BLACK,TRIM1#,4#
58944ACOVER, CONSOLE, REAR
main58944-08010i201109-201409
58953ECOVER, CONSOLE COMPARTMENT DOOR PAD
main58953-08010i201109-201409
58959BCUSHION, CONSOLE COMPARTMENT DOOR
main58959-60060×2i201109-201409
8121
8202
7586806020ORNAMENT, BACK DOOR OUTSIDE, RH
main75868-06020
9008011433
main90080-11433
9008015073
main90080-15073
9008016021
main90080-16021
9008016112
main90080-16112
90167A0015
main90167-A0015
9016830008
main90168-30008
9046710201
main90467-10201
9046712080
main90467-12080
90467A0011
main90467-A0011
