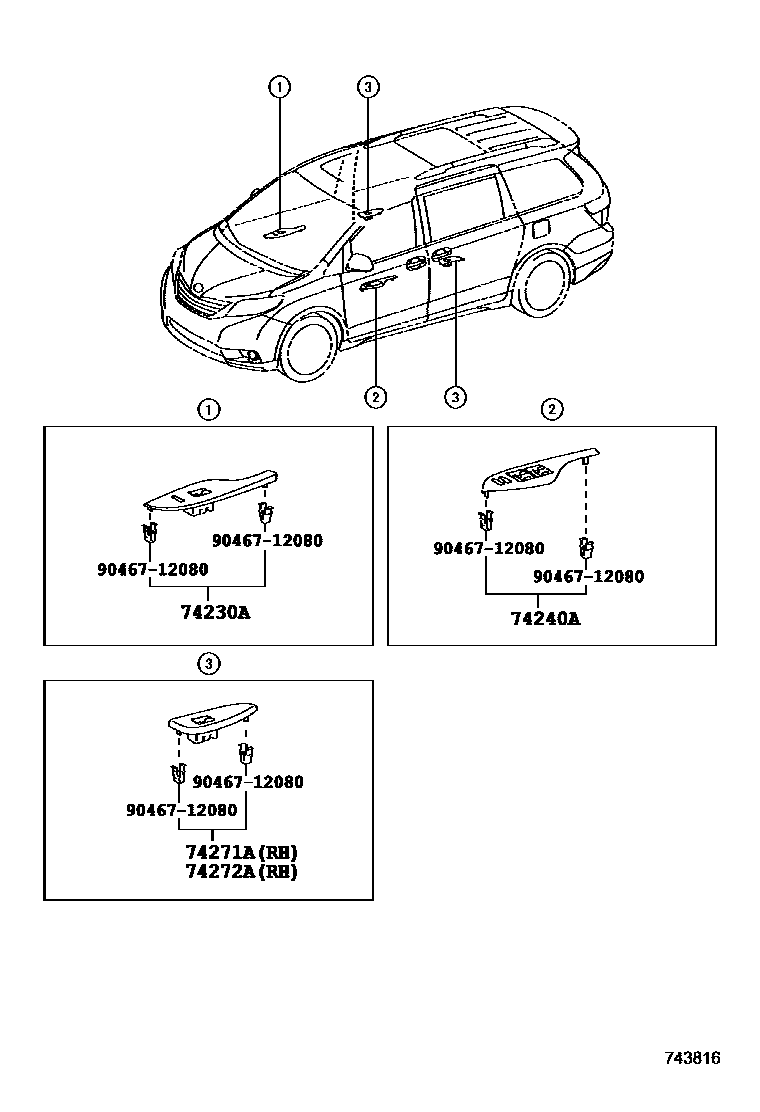

Toyota SIENNA — ARMREST & VISOR

74230APANEL ASSY, FRONT DOOR ARMREST BASE, RH

main74230-08010i201109-201308

main74230-08020i201109-201409

main74230-08060-E1i201711-202009

BROWN,TRIM1#,4#

74240APANEL ASSY, FRONT DOOR ARMREST BASE, LH

main74240-08010i201109-201409

main74240-08020i201109-201308

main74240-08070-E1i201608-201711

BROWN,TRIM1#,4#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-08010i201109-201308

main74271-08020i201109-201409

main74271-08050-E1i201409-201608

BROWN,TRIM1#,4#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-08010i201109-201308

main74272-08020i201109-201409

main74272-08050-E1i201608-201711

BROWN,TRIM1#,4#

9046712080

main90467-12080

5 parts on this diagram · 5 diagrams in section

ARMREST & VISOR for Toyota SIENNA

This section contains 22 genuine Toyota parts for the ARMREST & VISOR system of the Toyota SIENNA. Key components include: PANEL ASSY, FRONT DOOR ARMREST BASE, RH, PANEL ASSY, FRONT DOOR ARMREST BASE, LH, PANEL, REAR DOOR ARMREST BASE, UPPER RH, PANEL, REAR DOOR ARMREST BASE, UPPER LH, VISOR ASSY, RH.
