Toyota SIENNA — ABS & VSC

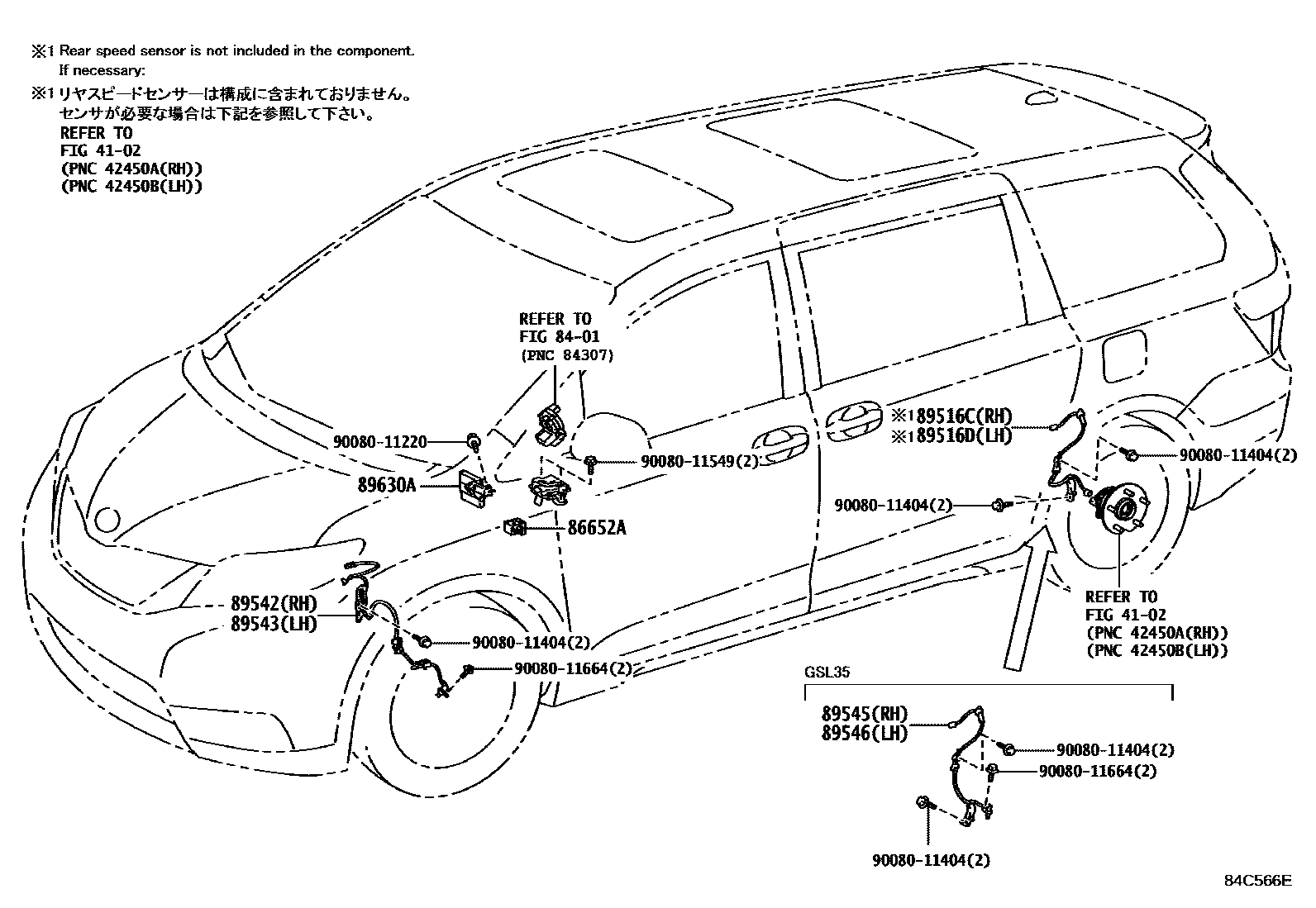

Parts diagram

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86652ABUZZER ASSY, SKID CONTROL

main86652-50010i201711-202009

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-08030i201109-201409

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-08040i201711-202009

89542SENSOR, SPEED, FRONT RH

main89542-08040i201510-201608

main89542-08050i201109-201212

89543SENSOR, SPEED, FRONT LH

main89543-08040i201510-201608

main89543-08050i201109-201212

89545SENSOR, SPEED, REAR RH

main89545-08020i201308-201409

89546SENSOR, SPEED, REAR LH

main89546-08020i201308-201409

89630ACOMPUTER ASSY, 4WD

main89630-45020i201308-201409

main89630-45060i201409-201608

9008011220

main90080-11220

9008011404

main90080-11404

9008011549

main90080-11549

9008011664

main90080-11664

14 parts on this diagram · 1 diagram in section

ABS & VSC for Toyota SIENNA

This section contains 14 genuine Toyota parts for the ABS & VSC system of the Toyota SIENNA. Key components include: REAR AXLE SHAFT & HUB, SWITCH & RELAY & COMPUTER, BUZZER ASSY, SKID CONTROL, WIRE, SKID CONTROL SENSOR, RH, WIRE, SKID CONTROL SENSOR, LH.
